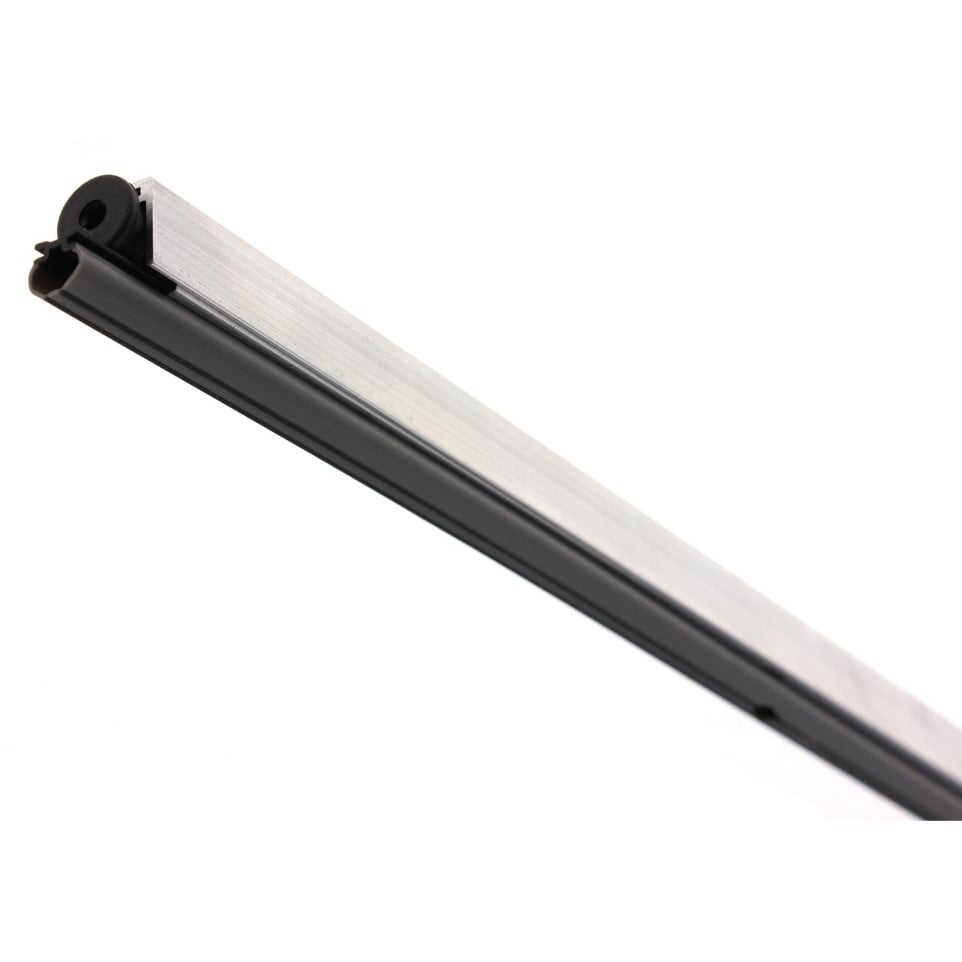

CCE SMALL 1213 Automatic Door Threshold 830mm per piece

Product

The CCE SMALL 1213 automatic baseboard, 830mm in length, is engineered for sealing the gap between the door and the floor in both residential and commercial settings, ensuring comfort and energy efficiency.

Specifications

• Constructed with reinforced nylon rods featuring glass fiber for optimal strength and consistent pressure across all flooring types
• Equipped with a self-directing push-button actuator made of metal and a 3 mm hex-adjustable nylon cap
• Integrated thermoplastic fire-retardant co-extruded gasket (rigid and flexible)
• Direct screw mounting through a pre-drilled gasket
• Allows a maximum shortening of 150 mm
• Compatible with PVC, wood, aluminum, and armoured doors

Usage

When the door closes, the push-button is pressed against the doorframe or an external stopper, activating the linkages to lower the internal seal. The sealing gasket makes full contact with the floor along the door's width, preventing drafts, dust, and noise from passing through the underlying gap.

FAQ

1. What types of doors can this baseboard be installed on?
   It is suitable for PVC, wood, aluminum, and armoured doors.

2. How is the seal activated?
   The seal is lowered automatically via a push-button mechanism when the door is fully closed.

3. How much can the baseboard be shortened?
   It can be trimmed by up to 150 mm to fit your door width requirements.

4. Is the gasket material fire-retardant?
   Yes, the gasket is made of a fire-retardant thermoplastic material.

5. How is the product affixed to the door?
   It is mounted directly onto the door using screws that go through a pre-drilled section in the gasket.
