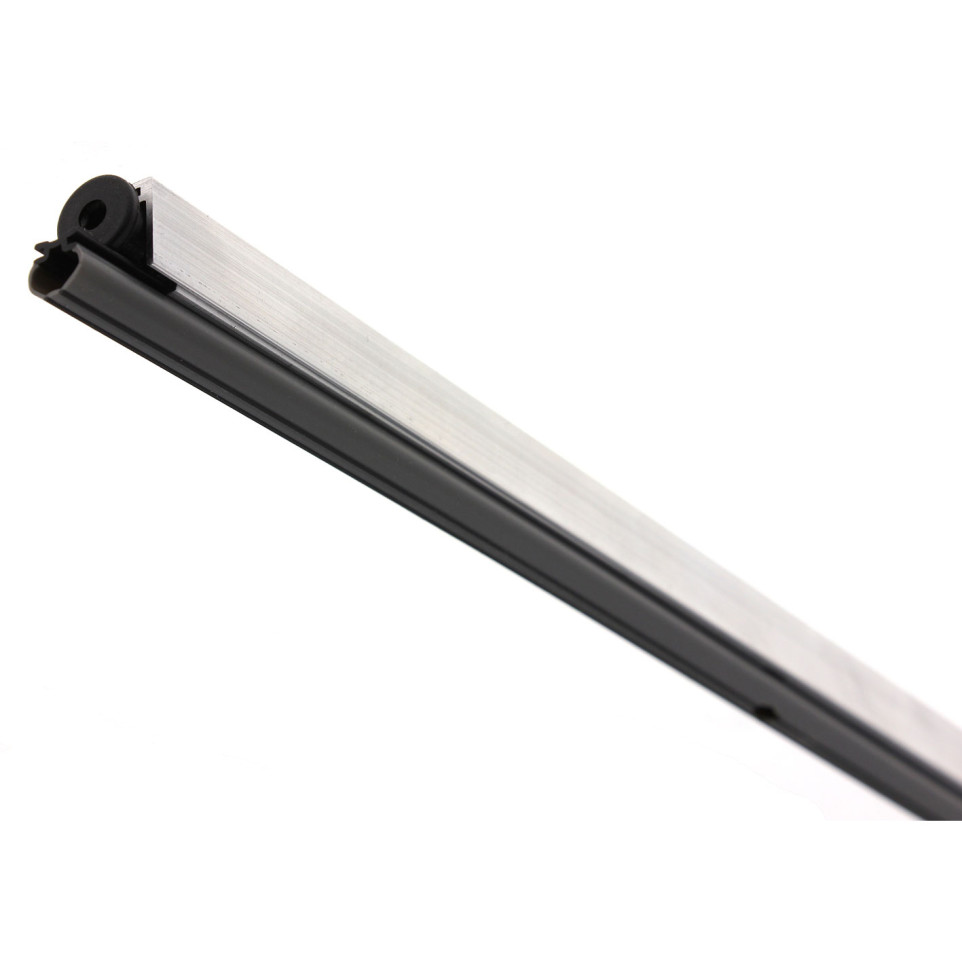

CCE SMALL 1213 Automatic Door Threshold 630mm per piece

Product

The CCE SMALL 1213 630mm automatic baseboard is an engineered drop-down seal designed for doors, ensuring effective closure of the gap between door and floor. Ideal for use with PVC, wood, aluminum, or armored doors in residential and commercial settings.

Specifications

• Features a rigid nylon linkage system reinforced with fiberglass for stability and uniform pressure against any floor type
• Thermoplastic co-extruded seal (rigid and flexible) offers fire-resistant properties
• Direct screw-on installation through pre-drilled gasket
• Self-directing, articulated metal push-button with an adjustable nylon cap (3 mm hex key)
• Can be shortened by up to 150 mm to fit specific door widths

Usage

When the door closes, the push-button compresses against the frame or an external stop, activating the internal linkage that lowers the internal movable profile with a guillotine action. The seal adheres completely along the door’s underside, effectively blocking drafts, dust, and noise.

FAQ

1. What types of doors are compatible with this automatic baseboard?
   This product is suitable for installation on PVC, wood, aluminum, and armored doors.

2. How is the seal installed?
   The baseboard is mounted directly with screws through the pre-drilled gasket for a secure and straightforward installation.

3. Can the length of the seal be adjusted?
   Yes, the unit can be shortened by up to 150 mm to accommodate different door widths.

4. Does the baseboard maintain floor contact on uneven surfaces?
   The reinforced linkage system distributes uniform pressure, allowing the seal to adapt to minor floor irregularities for consistent sealing.

5. Is the seal fire-resistant?
   Yes, the co-extruded thermoplastic gasket includes fire-retardant components for enhanced safety.
