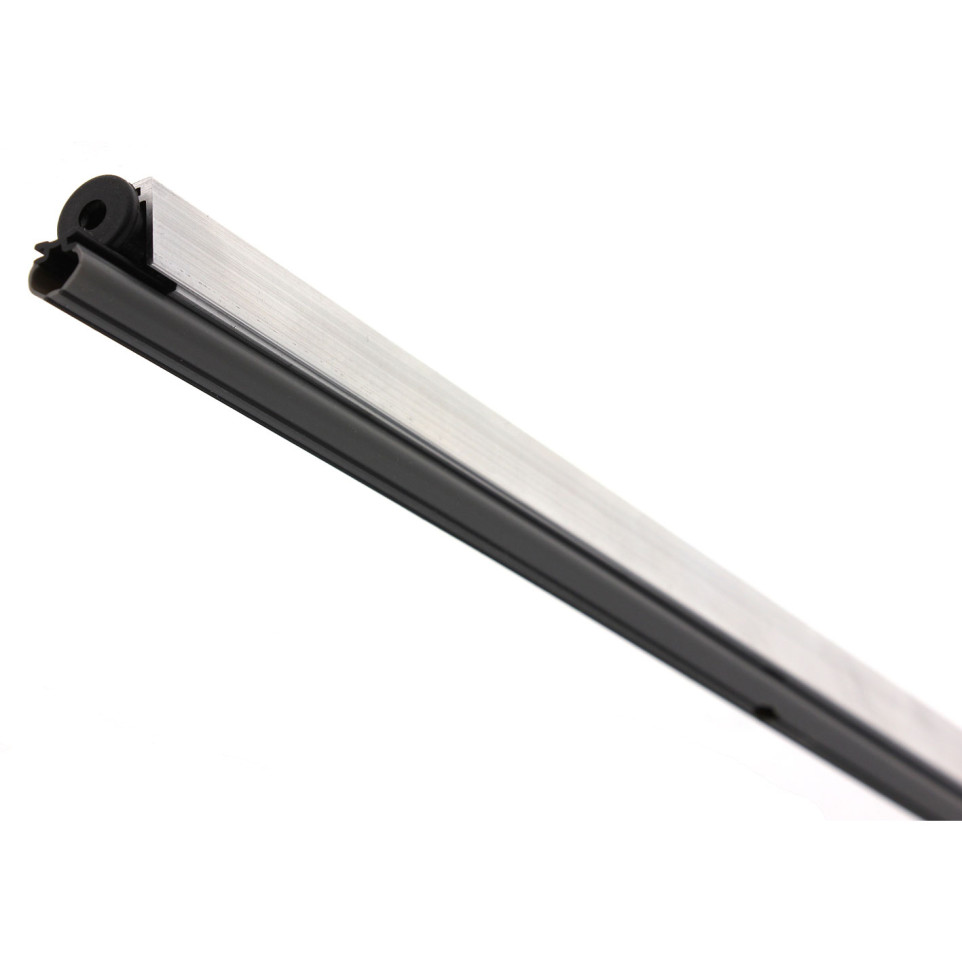

The CCE SMALL 1213 automatic baseboard, 730mm length, is designed to seal the gap beneath doors across a range of installations, delivering uniform pressure and reliable sealing for enhanced comfort and efficiency in commercial and residential environments.
Specifications
- Constructed with rigid linkages made of glass fiber–reinforced nylon to maximize effectiveness and ensure even pressure across all floor types
- Articulated metal plunger with nylon cap, adjustable with a 3mm hex key
- Self-extinguishing co-extruded thermoplastic gasket combines rigid and flexible elements
- Mounts directly to pre-drilled joint using screws, can be shortened by up to 150mm
- Suitable for PVC, wood, aluminum, and reinforced doors
Usage
When the door closes, the plunger presses against the frame or an external stop, activating the internal push rods to lower the mobile profile in a guillotine action, starting from the plunger side. The gasket seals along the full width, closing the gap between door and floor.
FAQ
-
What is the minimum and maximum door thickness this baseboard can be installed on?
Compatible with standard door constructions; check manufacturer guidelines for exact minimum and maximum thickness.
-
Can the CCE SMALL 1213 be trimmed to fit shorter doors?
Yes, this model can be cut down by up to 150mm for custom fit.
-
Is the seal effective on uneven or rough floors?
The rigid yet flexible linkage system provides even pressure and adaptability for uniform sealing on various surfaces.
-
How is the product installed?
Fix directly using screws through the pre-drilled gasket—no special installation hardware required.
-
Is this automatic baseboard suitable for fire-rated or security doors?
Yes, it is compatible with armored or fire-rated door types as well as PVC, wooden, and aluminum doors.
