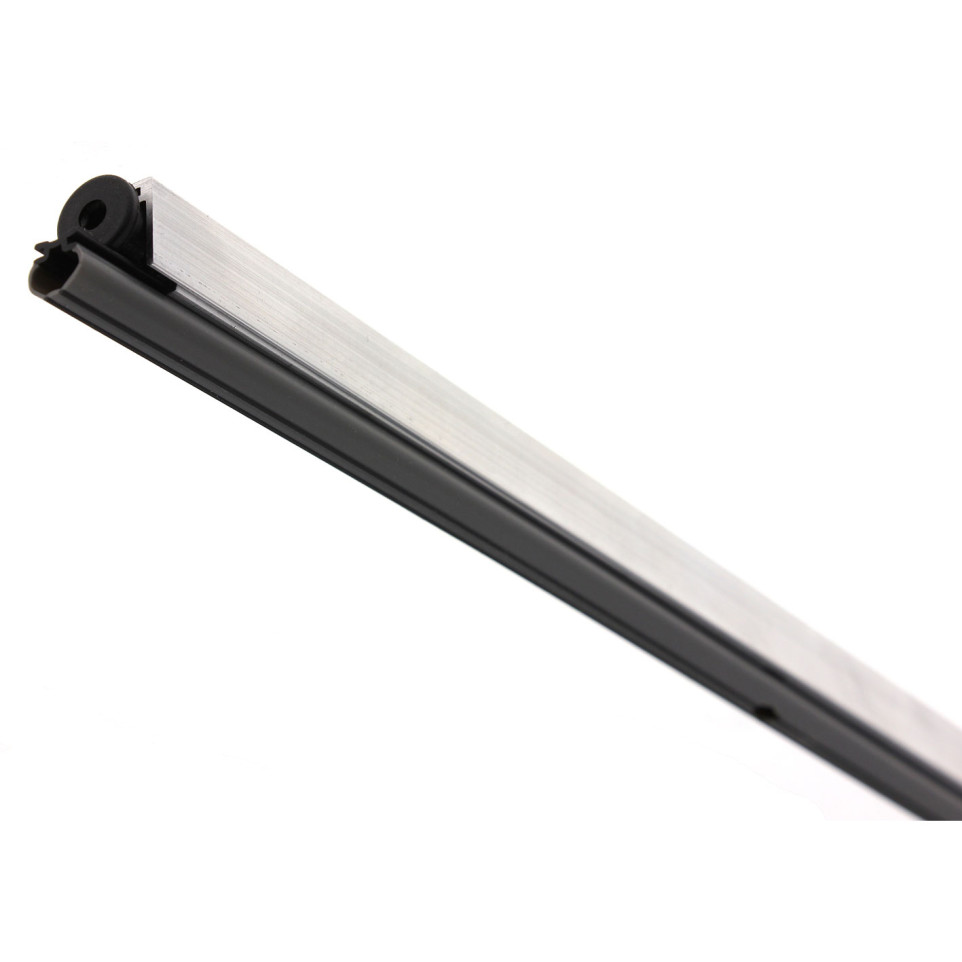

The CCE SMALL 1213 automatic baseboard is a compact drop-down seal designed for installation at the bottom of doors, ensuring efficient draft exclusion and noise reduction for various environments. Suitable for use on PVC, wood, aluminum, or armored doors.
Specifications
- Features a rigid nylon connecting rod system, reinforced with fiberglass for maximum effectiveness and even pressure across all floor types
- Push-button mechanism with a self-orienting metal button and a nylon cap adjustable with a 3 mm hex key
- Co-extruded thermoplastic gasket (rigid plus flexible) offers both durability and fire resistance
- Direct screwing through a pre-drilled gasket for secure attachment; maximum shortening of up to 150 mm
- For doors with a length of 1430 mm, reference 195354
Usage
Install the baseboard on the underside of the door. When the door closes, the push button presses against the frame or external stop, actuating the mechanism and lowering the internal profile in a guillotine motion. The seal uniformly contacts the floor, closing the gap and improving insulation and comfort.
FAQ
-
Which types of doors is this baseboard compatible with?
It is suitable for PVC, wood, aluminum, and armored doors.
-
How is the automatic plinth activated?
The system is activated by a push button that, once pressed by the door frame or a stop, triggers the drop-down movement of the seal.
-
Can I adjust the length of the baseboard?
Yes, you can shorten the product by up to 150 mm to fit your door.
-
What tools are required for installation?
Installation requires screws (applied through the pre-drilled gasket) and a 3 mm hex key for push button adjustment.
-
Is the sealing material fire resistant?
Yes, the seal is made from a thermoplastic material that is fire retardant.
