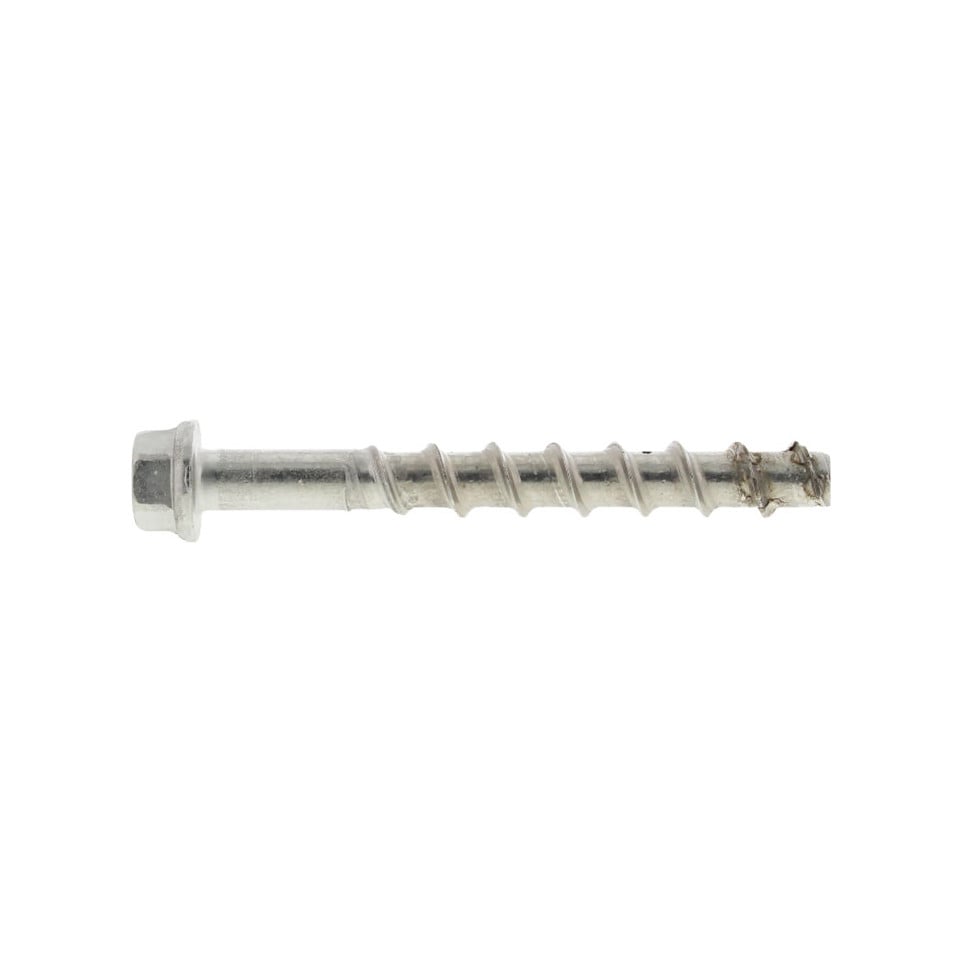

Spit Tapcon HFL Concrete Screw Ø6 80mm per piece

Usage

The Cheville Spit TAPCON HFL Ø6 80mm is a self-tapping metal anchor designed for secure fixing into cracked and non-cracked concrete, hollow-core slabs, and silicate stone. It is suitable for heavy-duty structural installations in construction and industrial environments.

Advantages

• ETA Option 1 approved for use in cracked and non-cracked concrete applications
• Patented thread design reduces installation effort and allows easy setting
• Removable and adjustable anchor enables temporary or repositionable fixings without performance loss
• Zinc-flake coating withstands over 500 hours of salt spray testing for enhanced corrosion resistance
• Narrow drilling diameter permits close-to-edge installation and minimal spacing between anchors

Specifications

• Design: Hexagonal head, self-tapping screw with special thread profile; zinc-flake corrosion-resistant coating
• Certification: ETA Option 1 approval; tested fire resistance; compliant with European technical standards
• Performance: Diameter Ø6 mm, length 80 mm; minimum embedment depth of 35 mm and maximum fixture thickness of 45 mm
• Differentiator: Fully removable after use, supporting both permanent and temporary fixings; compatible with various substrates including hollow core slabs

How it works

The anchor is driven into a pre-drilled hole in the concrete using standard tools. Its self-tapping action grips the base material securely via its specially shaped threads. The fastener can be removed without damaging the substrate if needed.
