Usage

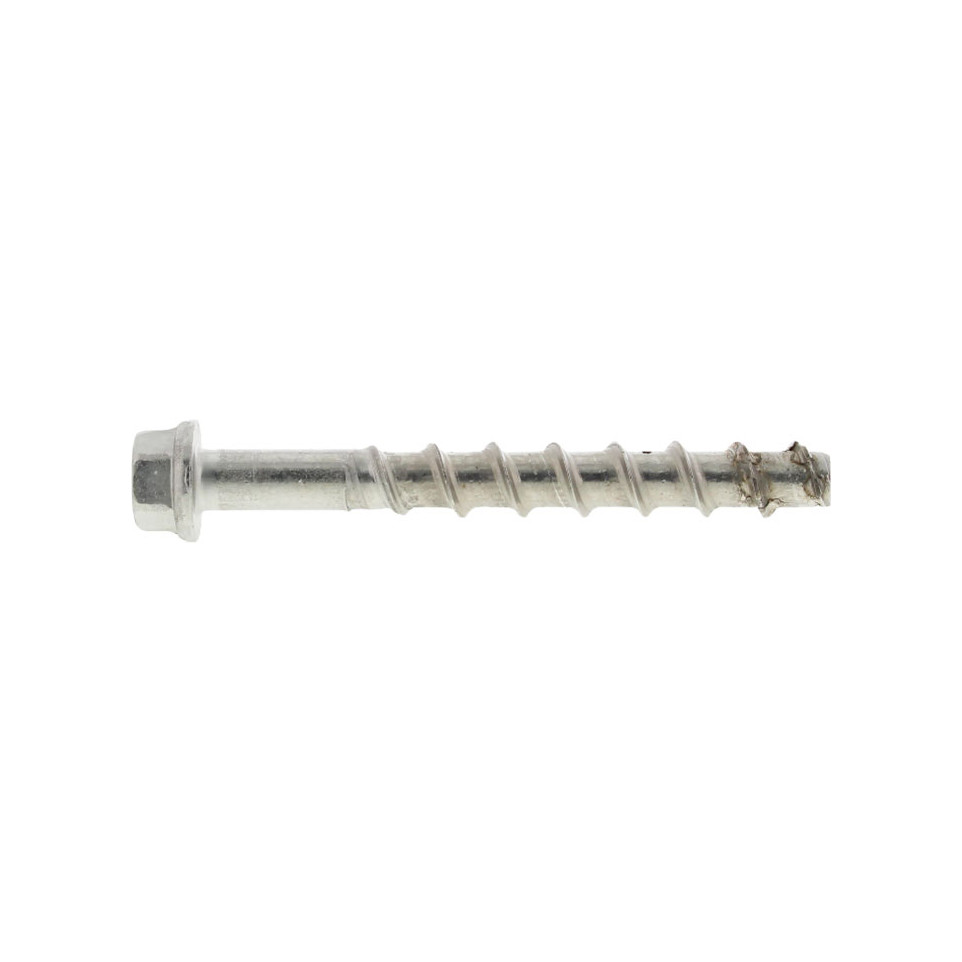

TAPCON HFL Ø10 160mm is a self-tapping concrete screw with a hexagonal head designed for fastening into cracked and non-cracked concrete. Ideal for heavy-duty applications including formwork, mechanical installations, façades, and safety barriers.
Advantages
- ETA Option 1 approved anchor for cracked and non-cracked concrete with fire approval certification
- Longer effective thread delivers highest performance within the market
- Patented thread design provides easy setting and reduced installation time
- Adjustable anchor allows for re-alignment without loss of performance
- Removable design makes it suitable for temporary fixings with complete removal capability
Specifications
- Hexagonal head design with zinc-flake coating providing excellent corrosion resistance (>500h salt spray test)
- Seismic-approved for reliable performance even in earthquake-prone areas
- 10mm diameter with 160mm length for substantial load-bearing capacity
- Requires minimum drilling depth of 40mm with minimum embedment length of 35mm
How it works
Installation requires drilling a hole in concrete to the specified embedment depth, inserting the anchor through the fixture into the hole, then tightening with a wrench until the hexagonal head contacts the fixture. The specially designed threads undercut the concrete for secure anchoring.
