Usage

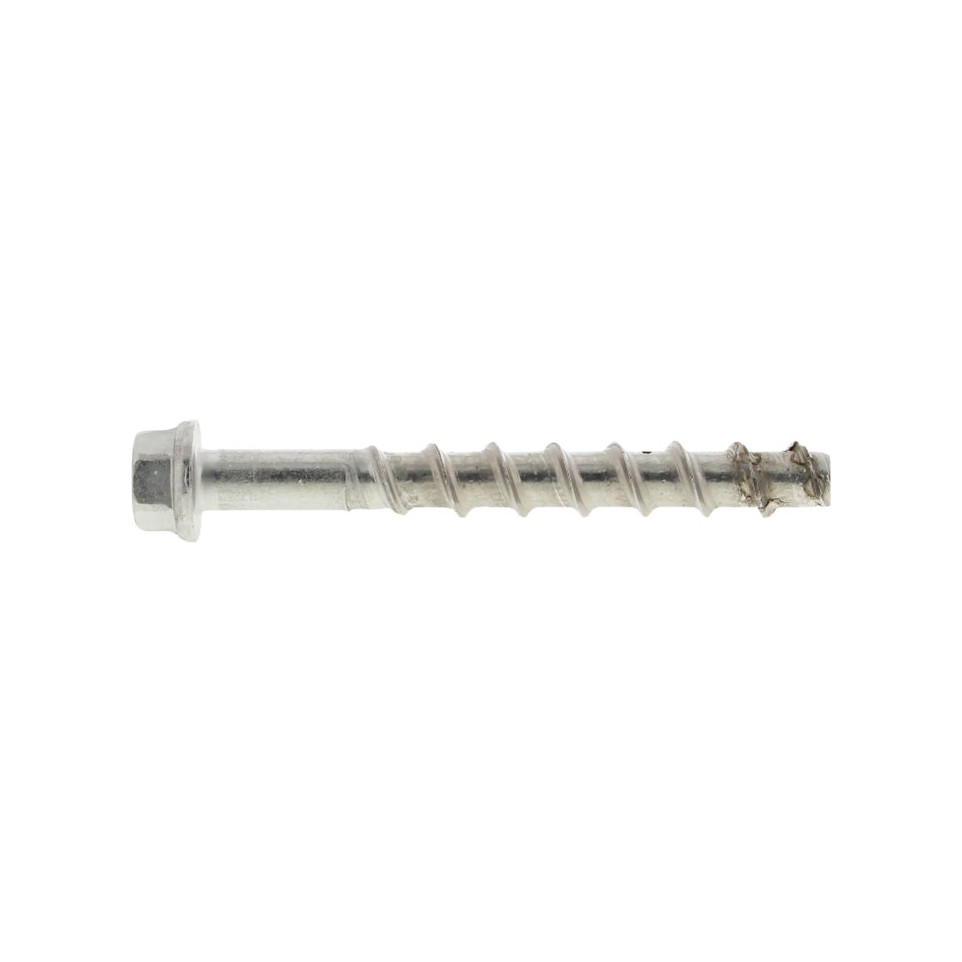

The Cheville Spit TAPCON HFL Ø10 150mm is designed for secure heavy-duty anchoring in cracked and non-cracked concrete, hollow core slabs, and silicate stone, making it suitable for structural installation, machinery mounting, and safety barriers.
Advantages
- Self-tapping hexagonal head simplifies direct installation into concrete without special tools.
- ETA Option 1 approved for use in cracked and non-cracked concrete ensures regulatory compliance.
- Fully removable anchor allows temporary or adjustable fixings without loss of performance.
- Zinc-flake coating offers high corrosion resistance withstanding more than 500 hours in salt spray tests.
- Reduced drilling diameter enables close edge spacing and dense fixing patterns; correct torque must be maintained during installation.[1][3][7]
Specifications
- Hexagonal head self-tapping screw design crafted from high-strength steel with a patented thread profile for efficient load transfer.
- Zinc-flake aluminum coating provides advanced corrosion protection; certified to ETA Option 1 (European Technical Assessment) for safety-critical applications.[3]
- Screw diameter: Ø10 mm; length: 150 mm. The system supports heavy loads with minimal edge distances due to optimized thread geometry. Salt spray resistance exceeds 500 hours.[3][7]
- Differentiates by allowing full removability after setting—ideal for both permanent and temporary installations such as formwork or re-alignment needs.[3][7]
How it works
The anchor is driven into a pre-drilled hole using its self-tapping threads, creating mechanical interlock within the base material. Once tightened, the hexagonal head ensures secure fixation of fixtures to heavy substrates. Removal is possible without damaging base materials or reducing performance integrity.[1][3]
