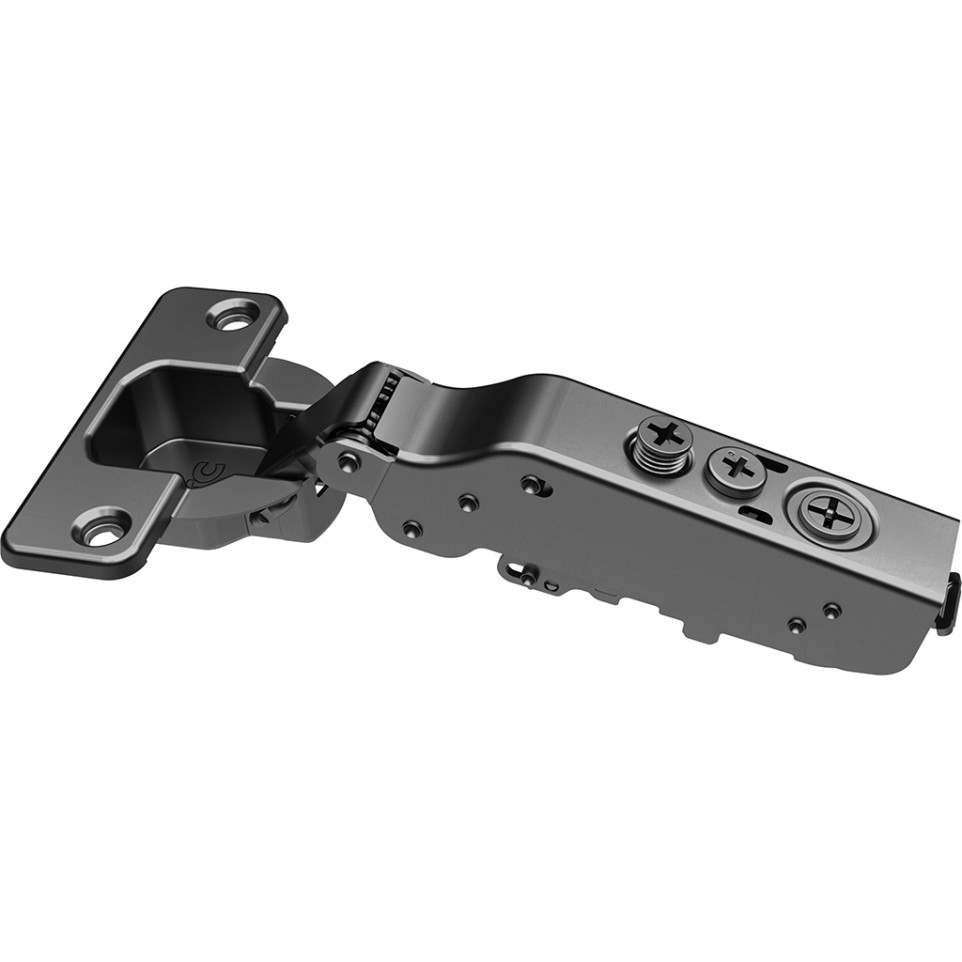

Black titanium Pivot-Star 110° stud hinge with integrated soft-close and automatic closing, designed for overlay doors and screw mounting. Ideal for cabinets, wardrobes, and furniture requiring smooth, controlled movement and reliable closure.

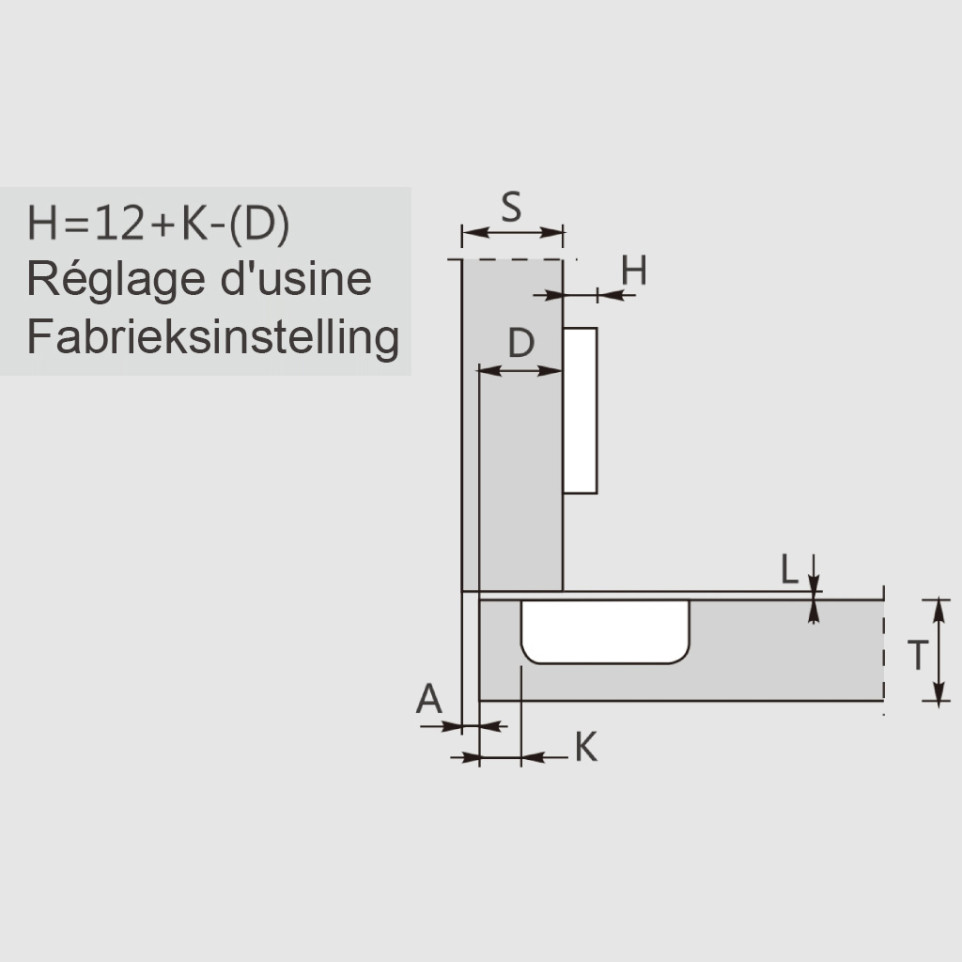

Install the Pivot-Star hinge in overlay doors using standard screw mounting. The hinge’s soft-close function dampens door movement, preventing slamming and reducing wear. Adjustable settings enable precise fit for various cabinet layouts and door sizes.
What door thickness is compatible with this hinge?
Suitable for doors measuring 16–26 mm thick.
Does it have a built-in soft-close feature?
Yes, the hinge includes an integrated soft-close damper for quiet, controlled closing.
How is the hinge mounted?

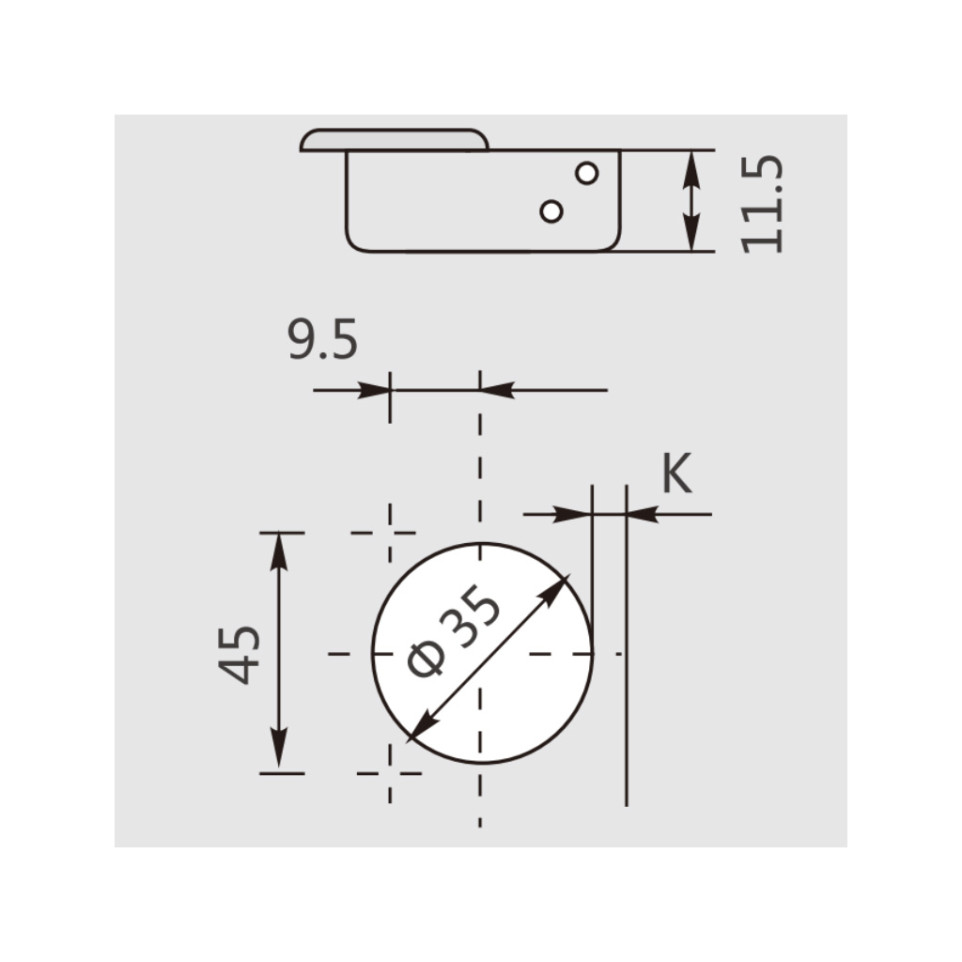

Mounting is done by screwing the hinge cup into a bore with a diameter of 35 mm and a depth of 11.5 mm.
Is the hinge suitable for overlay doors?
Yes, it is engineered for overlay applications.
What is the opening angle?
The hinge opens up to 110 degrees, ideal for wide cabinet access.
