Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product
Cruciform Pivot-Star nickel-plated mounting plate with special screws and expansion sleeves for Ø5 x 12mm drilling, featuring direct height adjustment and 4mm spacing for secure stud hinge installation.
Specifications
- Nickel-plated cruciform plate designed for corrosion resistance and professional cabinet applications

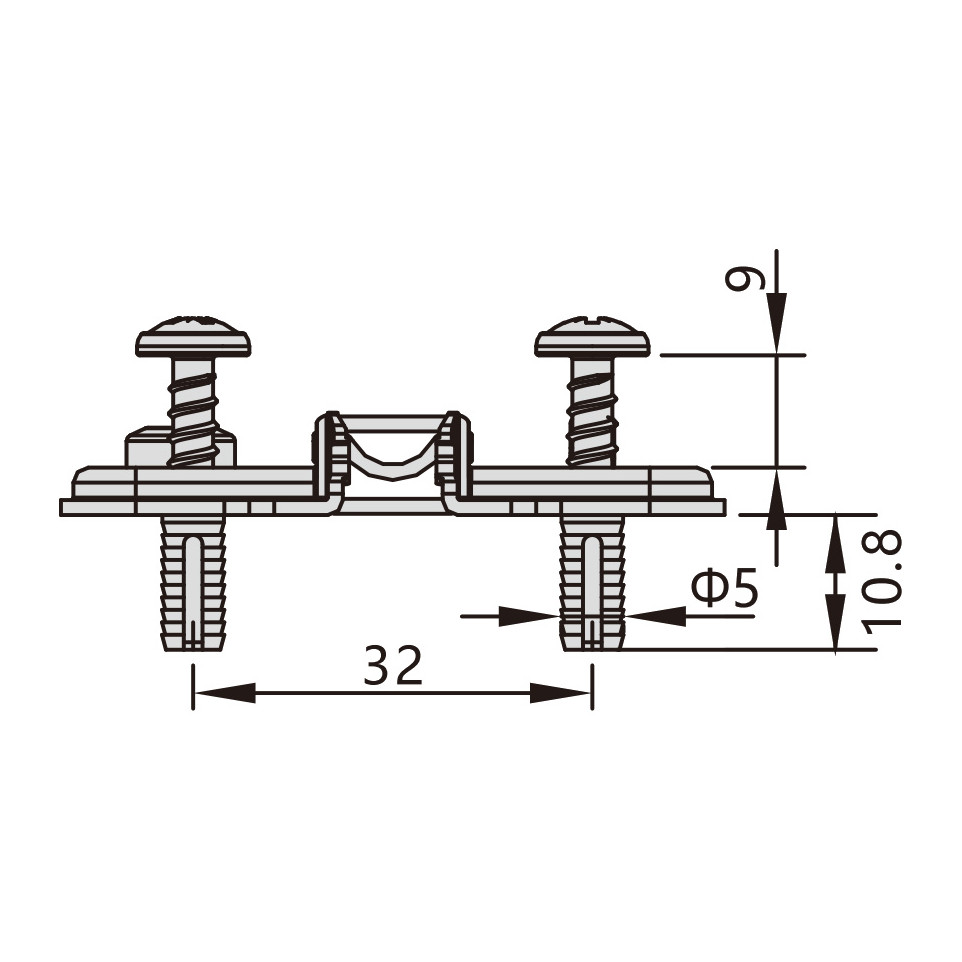

- Includes special screws and expansion sleeves for reliable mounting in pre-drilled 5mm x 12mm holes

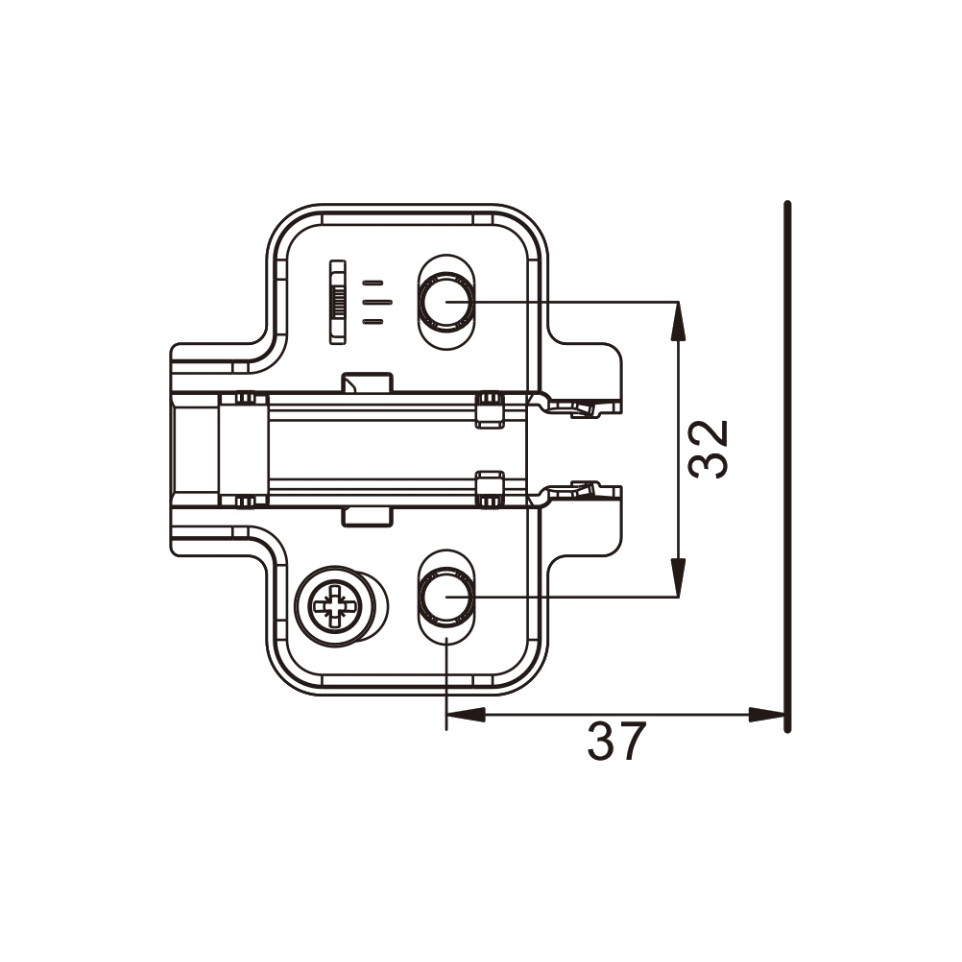

- Direct height adjustment feature for precise alignment; 4mm spacing per piece
- Robust construction ensures long-term durability in frequent-use environments
- Compatible with Pivot-Star hinge systems and standardized stud hinge accessories
Usage
Install the mounting plate by inserting expansion sleeves into Ø5 x 12mm drilled holes, then secure with the provided special screws. Use the direct height adjustment to set the plate height for an exact fit, enhancing hinge stability and cabinet door alignment.
FAQ
-
What door drilling size is required for installation?
Ø5 x 12mm holes are needed for the expansion sleeves to ensure secure mounting. -
Is the height adjustable after installation?
Yes, the integrated cam allows for direct height adjustment of the plate for precise door alignment. -
Can this plate be used with any stud hinge?
It is designed for use with Pivot-Star systems and compatible stud hinge accessories featuring standard dimensions. -
What material is the plate made from?
The plate is constructed from steel with a nickel-plated finish for corrosion resistance and durability. -
Are the special screws and sleeves included?
Yes, each mounting plate is supplied with the necessary special screws and expansion sleeves for installation.
