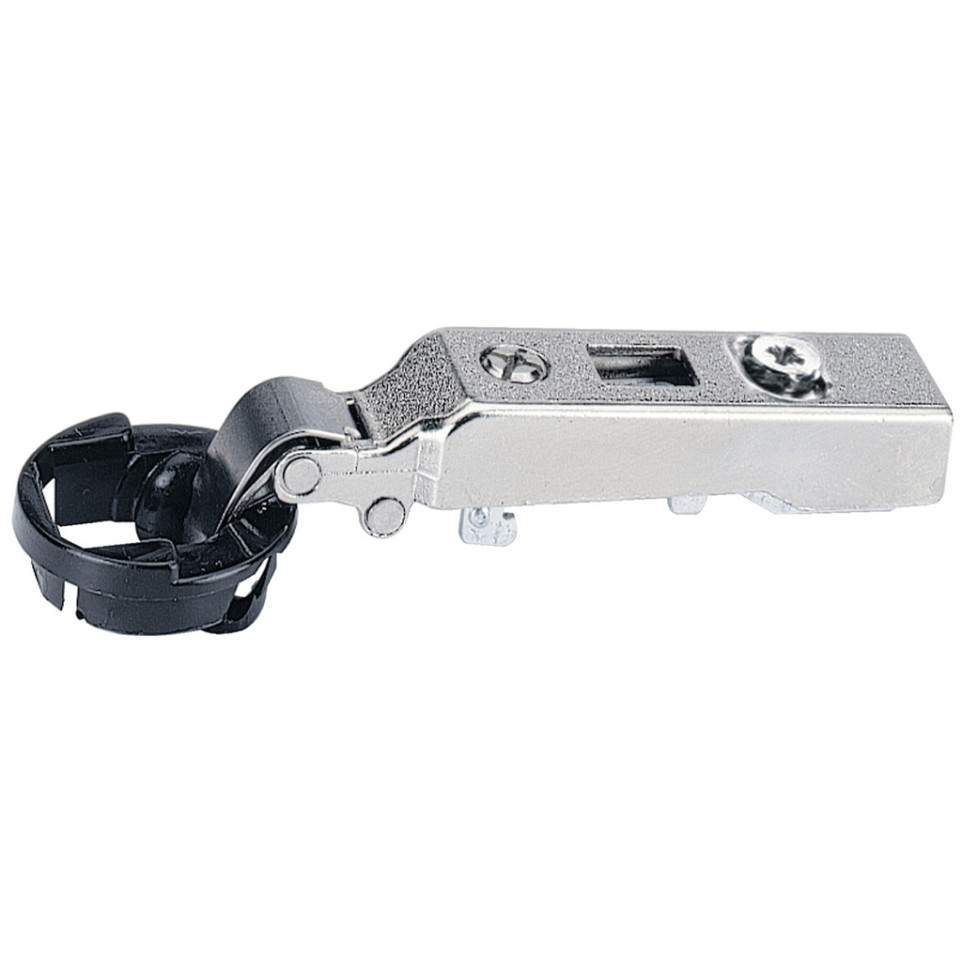

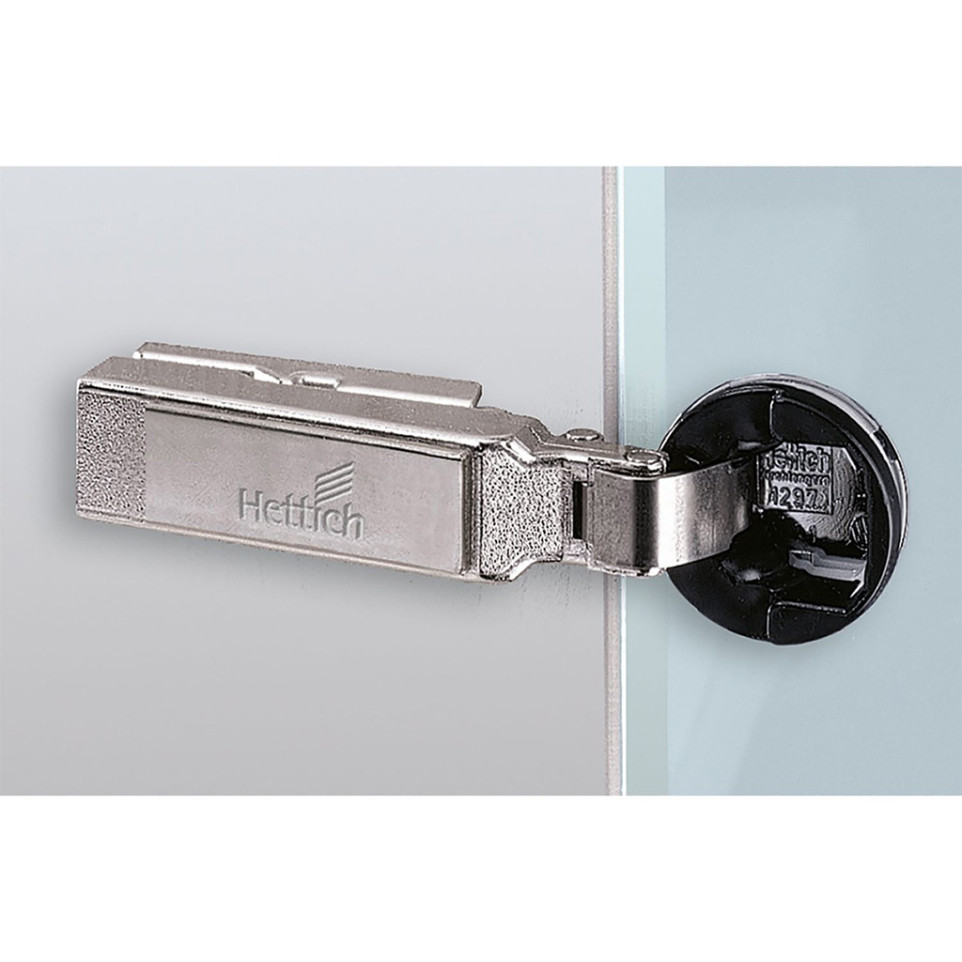

The Hettich Intermat 9904 95° nickel-plated glass door hinge is designed for overlay mounting on glass doors. It offers secure self-closing functionality and is suitable for door thicknesses from 4 to 6.5 mm, making it ideal for modern cabinetry and display cases.

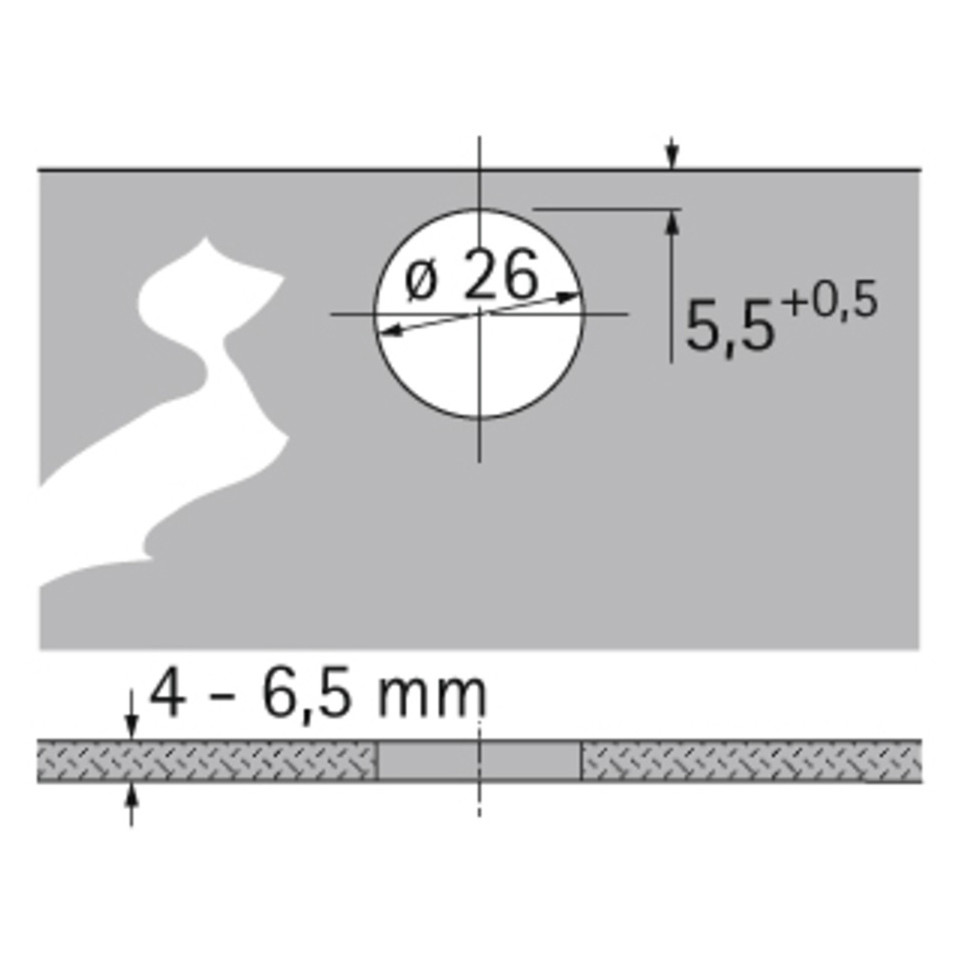

Mount the Intermat 9904 hinge to glass doors with a thickness between 4 and 6.5 mm using screws. The hinge allows for fine adjustment of overlay, depth, and height, enabling precise alignment and consistent door operation. Its self-closing feature keeps doors reliably closed without requiring additional hardware.
What door thickness can this hinge accommodate?
It is suitable for glass doors 4 mm to 6.5 mm thick.
Does this hinge include soft-closing functionality?
No, it features automatic closing but does not have soft-close damping.
How can I adjust the overlay and depth?
The hinge provides integrated overlay adjustment of +2 mm / -2 mm and depth adjustment of +2.5 mm / -1.5 mm with simple screw adjustments.
What is the opening angle of the hinge?
The hinge opens to 95°, permitting ample access to cabinet interiors.

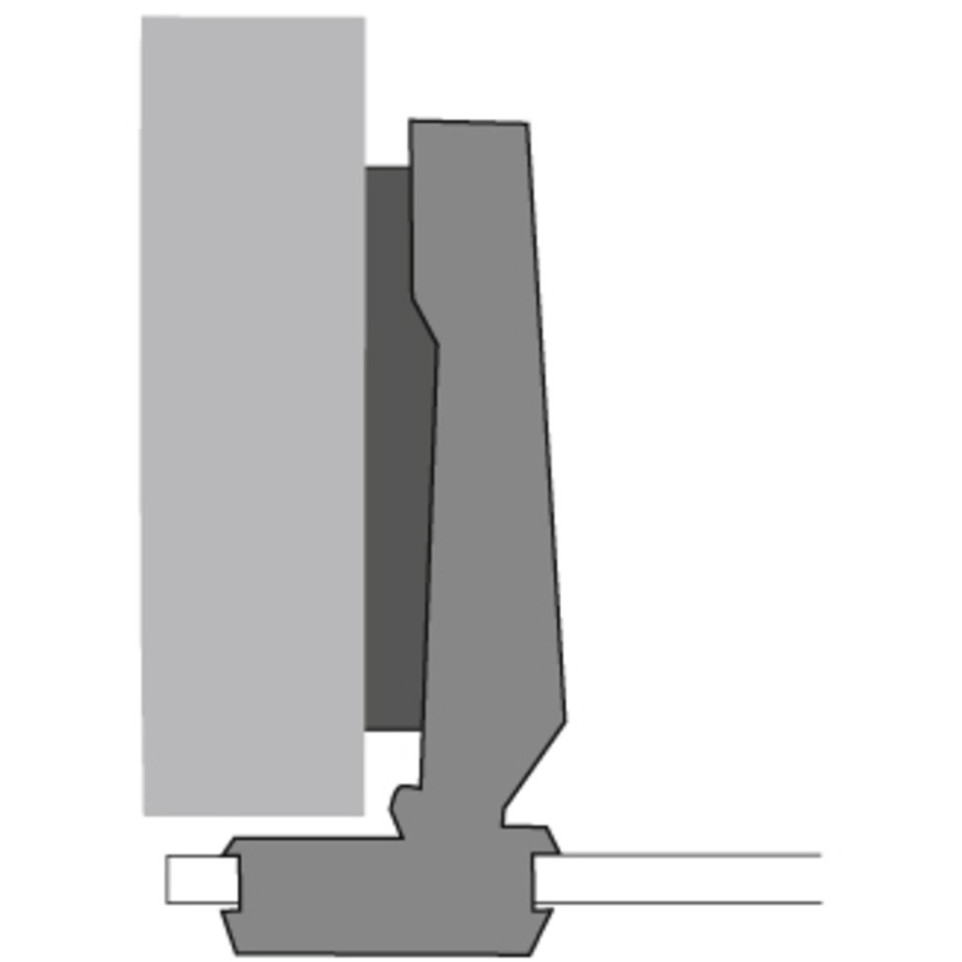

Is the hinge suitable for overlay or inset mounting?
This model is designed for overlay mounting on glass doors.
mvm-dt-2025-07-07
| Brand | Hettich |
|---|---|
| Finishing | nickelé |
| Type of assembly | à visser |
| Material used | acier |
| Opening angle (°) | 95,00 |
| Finish Fittings | en applique |
