Usage
The BB Locks A1 Basic 30 SX electric lock is designed for secure access control in high-security environments, suitable for doors in commercial, institutional, and industrial facilities where robust locking is required.
Advantages
- Automatic locking upon door closure enhances security and ease of use.
- Fail-safe operation ensures the door unlocks without power, supporting emergency egress requirements.
- Robust construction with a stainless steel baseplate and hardened duplex bolt resists forced entry attempts.
- Microprocessor-controlled system enables integration with various access controls like keypads or card readers.
- Electromechanical design minimizes maintenance needs but requires stable power supply management.
Specifications

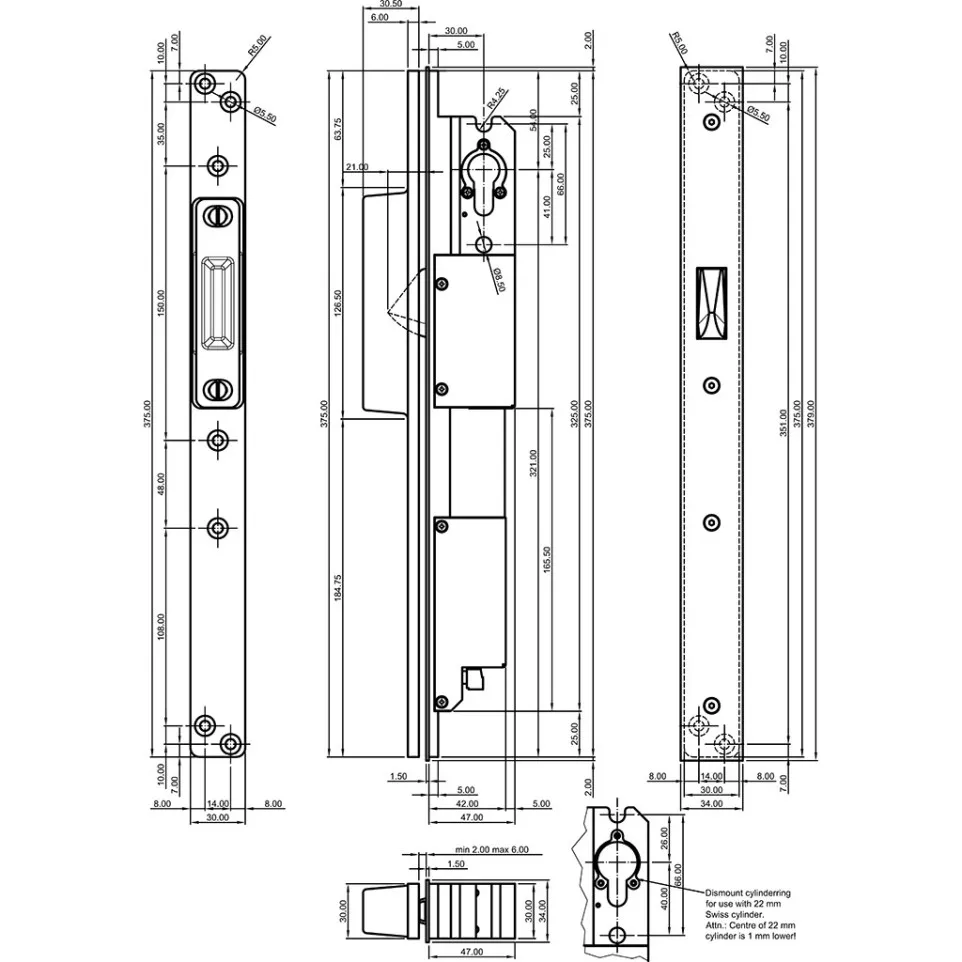

- The lock features a mortise design with a stainless steel (AISI 304) baseplate and cover, cast using the lost-wax process for precision and strength. The bolt is made from hardened duplex steel for enhanced resistance to lateral force and burglary attempts.
- The printed circuit board is protected by polyurethane-casted resin to increase resistance against humidity and environmental factors. The product meets rigorous European security standards relevant to access control systems.
- This model operates on a fail-safe principle (unlocked when unpowered), requires a supply of 24Vdc ±5% at up to 2.5A, and supports installation up to distances of approximately 25 meters from its power supply. The striker plate’s adjustable cup allows alignment up to ±2mm for precise fitting.
- An integrated microprocessor controls automatic relocking via three Hall sensors that detect proper closure; compatible with push buttons, numeric keypads, card readers or timers equipped with Normally-Open contacts.
How it works
This electromechanical lock automatically secures the door as soon as it closes by detecting the striker plate position using Hall-effect sensors. It can be unlocked electronically via external devices such as keypads or card readers; in case of power failure (fail-safe mode), it unlocks automatically for safety compliance.
