Usage

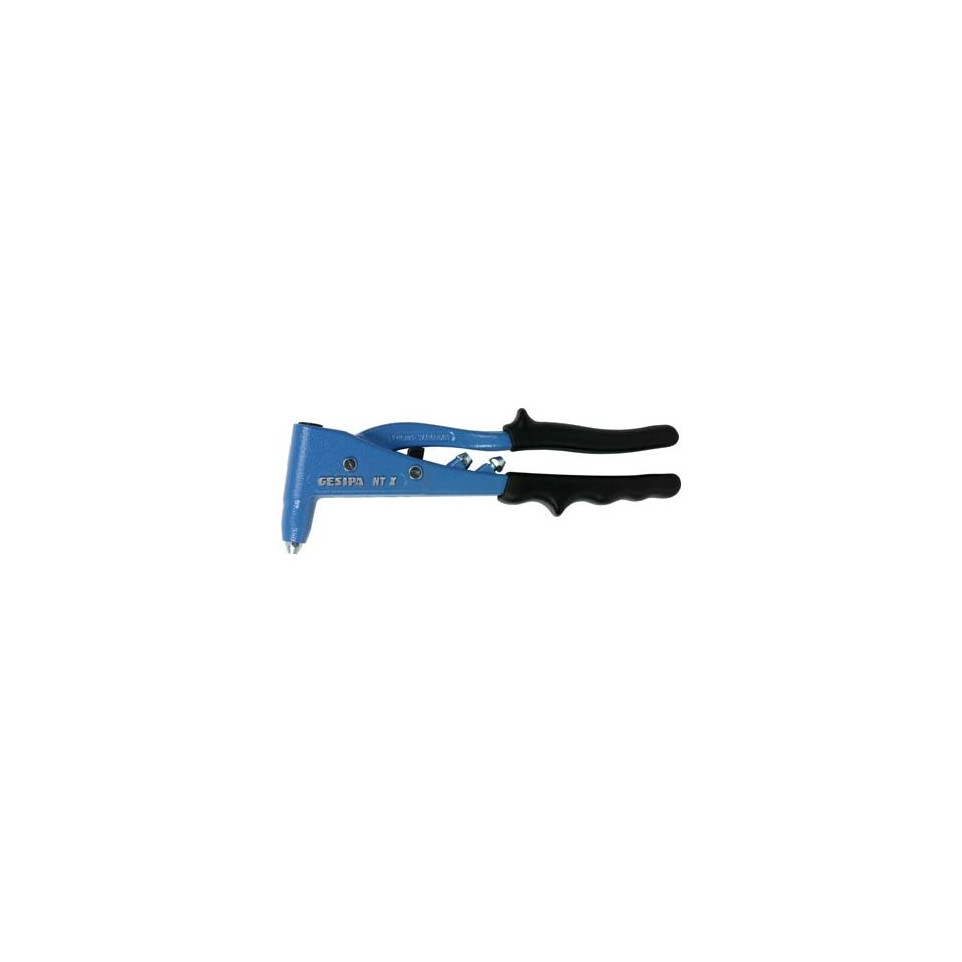

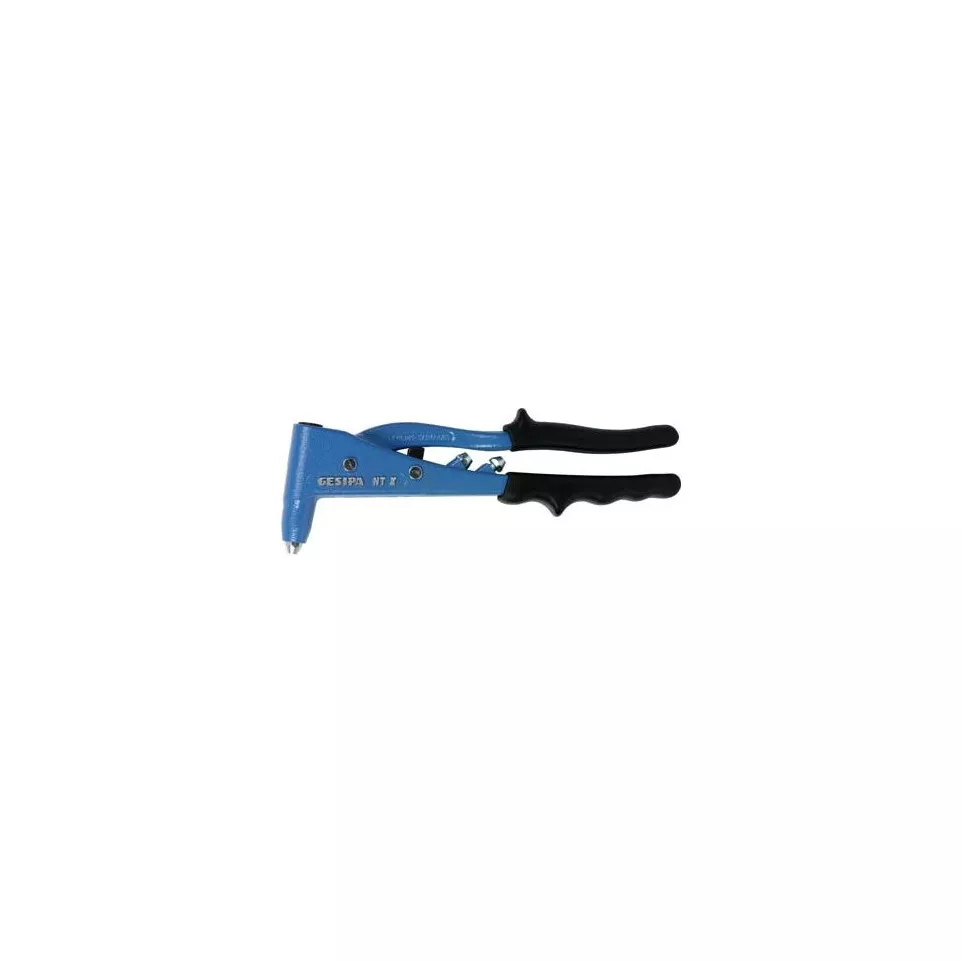

The GESIPA NTX is a robust manual rivet pliers designed for installing blind rivets in metalworking, construction, and maintenance tasks. It is ideal for precise fastening of sheet metals using aluminium, steel, or stainless steel rivets.
Advantages
- High-quality die-cast aluminium housing ensures lightweight durability
- Forged chrome vanadium steel head and levers provide long service life
- Ergonomic non-slip sleeve grips offer comfortable and safe handling during extended use
- Narrow tool head allows access to hard-to-reach areas for versatile application
- Spring-loaded jaw mechanism enables automatic mandrel release for efficient workflow
Specifications
- Design: Die-cast aluminium body; forged chrome vanadium steel head and levers; ergonomic non-slip handles; compact form factor (length approx. 253–260 mm)
- Durability: Heavy-duty construction suitable for regular professional use; quick-release system simplifies maintenance by allowing easy jaw replacement
- Performance: Installs blind rivets up to Ø5.0 mm in aluminium, up to Ø4.0 mm in steel or stainless steel; stroke: 8 mm; weight: approx. 0.58 kg
- Differentiating features: Self-opening spring ensures positive spent mandrel ejection; narrow head design enhances usability in confined spaces; supplied with multiple nosepieces for various rivet sizes
How it works
The GESIPA NTX operates by placing the appropriate nosepiece over a blind rivet’s shaft, squeezing the handles together to secure the sheets with the expanding rivet body, then ejecting the spent mandrel via its spring-loaded mechanism.
