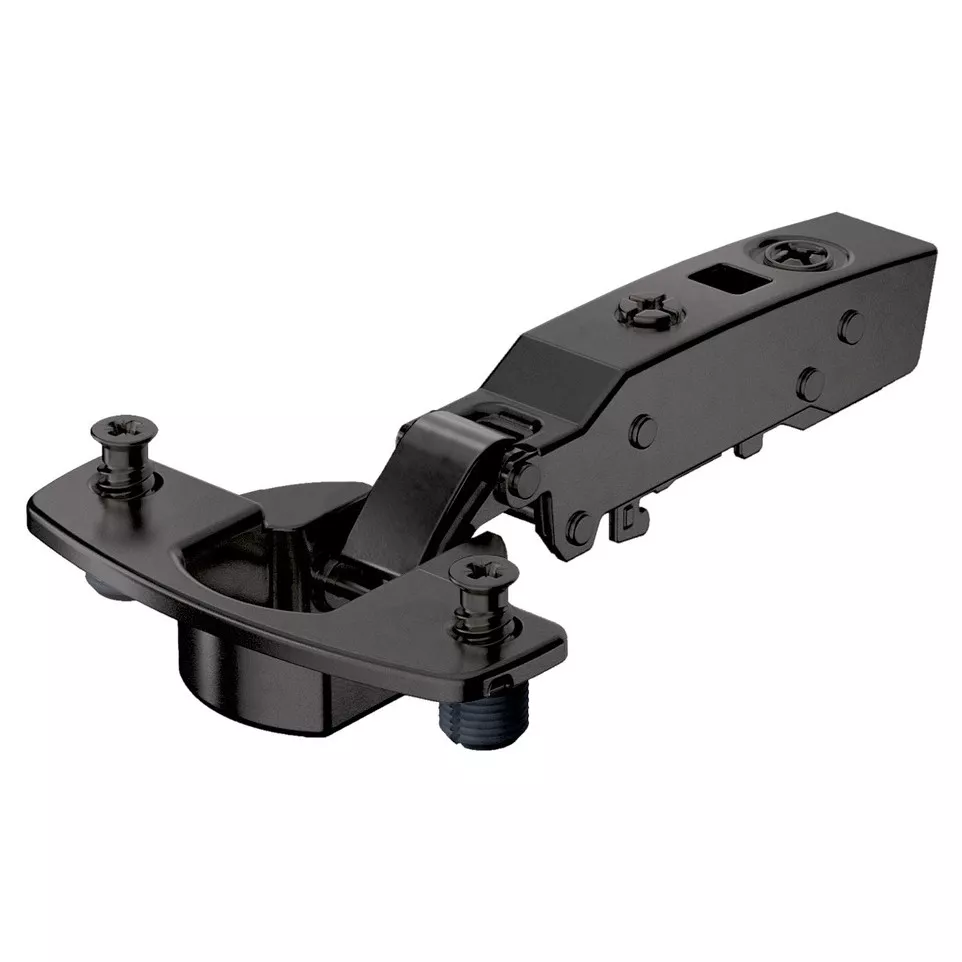

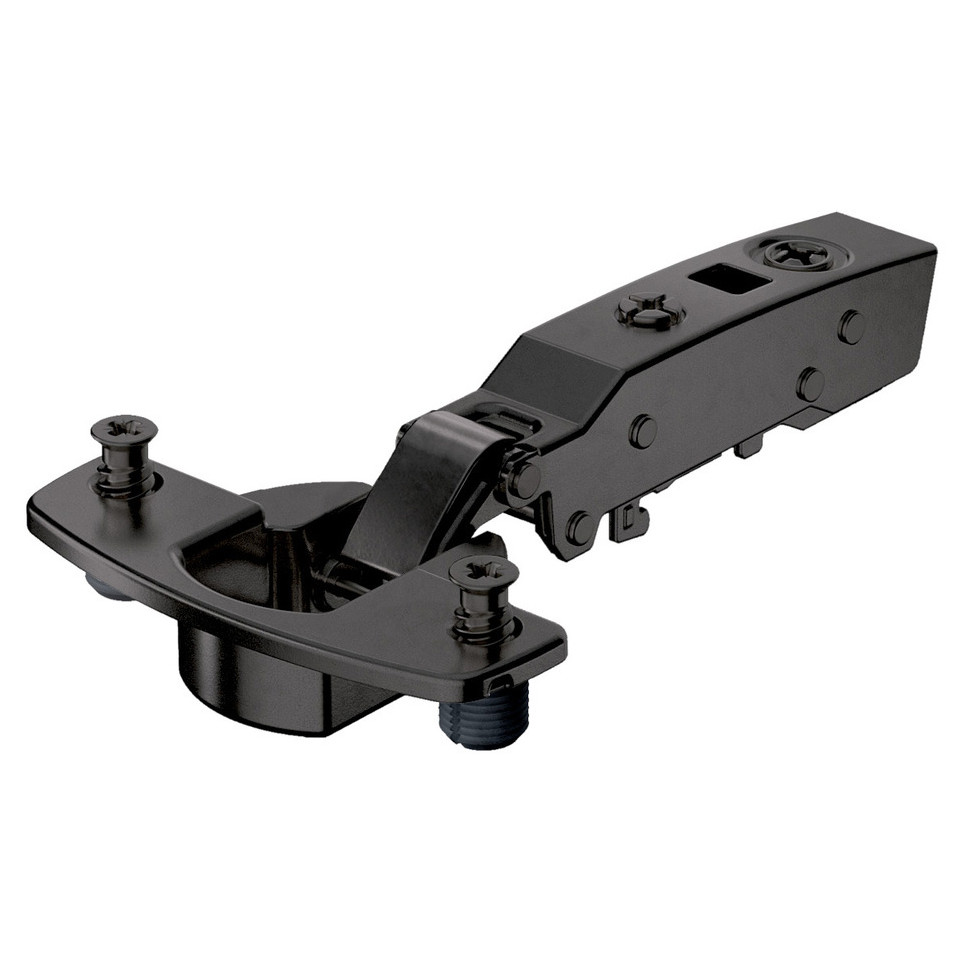

The Sensys 8631i 95° hinge in obsidian black by Hettich is engineered for thick cabinet doors up to 32 mm, offering reliable soft-close functionality and automatic closing. Designed for modern cabinetry, it features quick mounting with expansion sleeves (Ø10x11mm).
Install the hinge using expansion sleeves for tool-free, secure mounting in 10x11 mm holes. Once installed, doors open smoothly to 95°, close automatically, and benefit from integrated dampers that ensure silent, controlled closure. Fine-tune alignment with built-in overlay, depth, and height adjustments.
What door thickness is this hinge suitable for?
The Sensys 8631i hinge is ideal for doors with a thickness between 15 mm and 32 mm.
Does this hinge provide soft closing?
Yes, it features integrated soft-close (Silent System) for gentle and quiet door closure.
How is the hinge mounted?
This hinge mounts with expansion sleeves (Ø10x11mm) for fast, firm installation in predrilled holes.
Can I adjust the door position after installation?
Yes, you can adjust overlay (+2 mm / -2 mm), depth (+3 mm / -2 mm), and height (via the mounting plate) for precise alignment.
What is the opening angle of the hinge?
The hinge opens to an angle of 95°, supporting wide and practical door movement.
mvm-dt-2025-07-07
| Brand | Hettich |
|---|---|
| Finishing | noir |
| Colour | noir obsidien |
| Type of assembly | avec manchon à expansion perçage Ø10x11mm |
| Material used | acier |

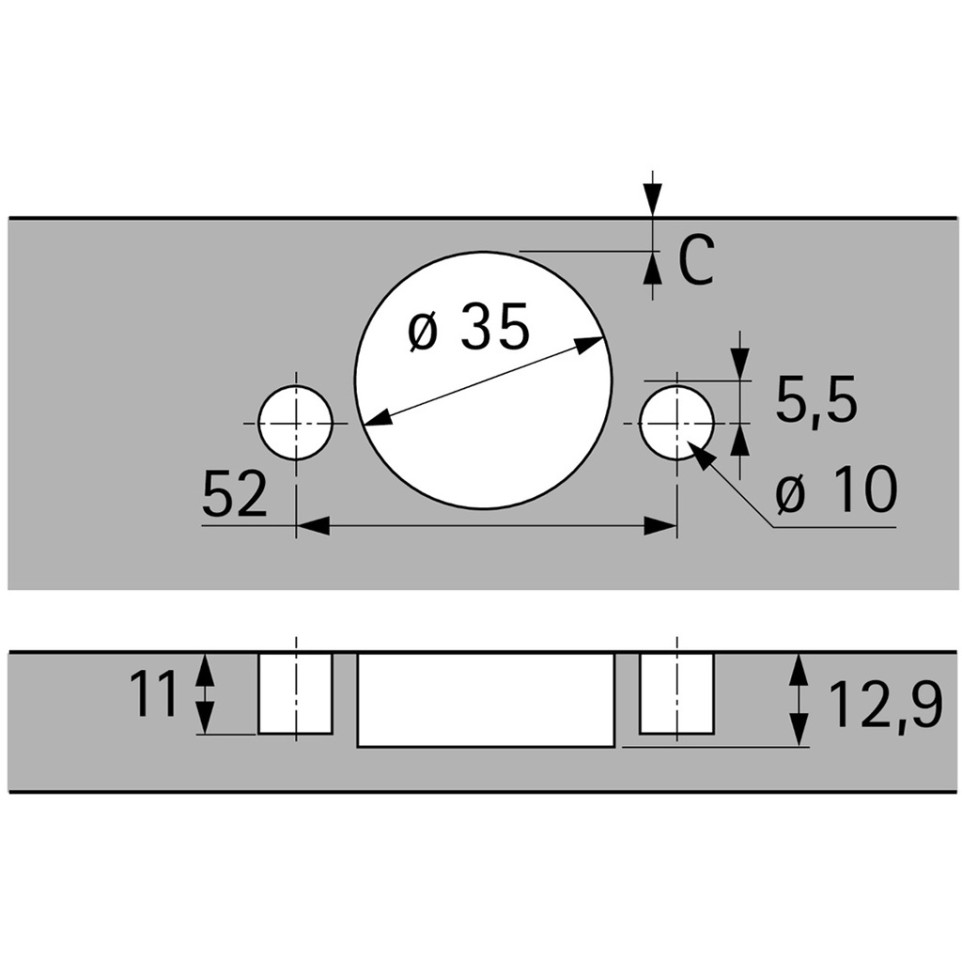

| Drilling diagram | TH52 x 5,5 mm |
| Finish Fittings | en applique |
