Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm

Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated Concealed Pivot Hinge with Soft Close and Self-Closing, for Overlay Door, Ø10x10mm
Pivot-Star 160° Nickel-Plated...
Pivot-Star 160° Nickel-Plated...
Pivot-Star 160° Nickel-Plated...
Pivot-Star 160° Nickel-Plated...
Pivot-Star 160° Nickel-Plated...
Pivot-Star 160° Nickel-Plated...

Estimated delivery date :  Wednesday 5 August
€4.94 HT
In stock

Ref : FGT-236055

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

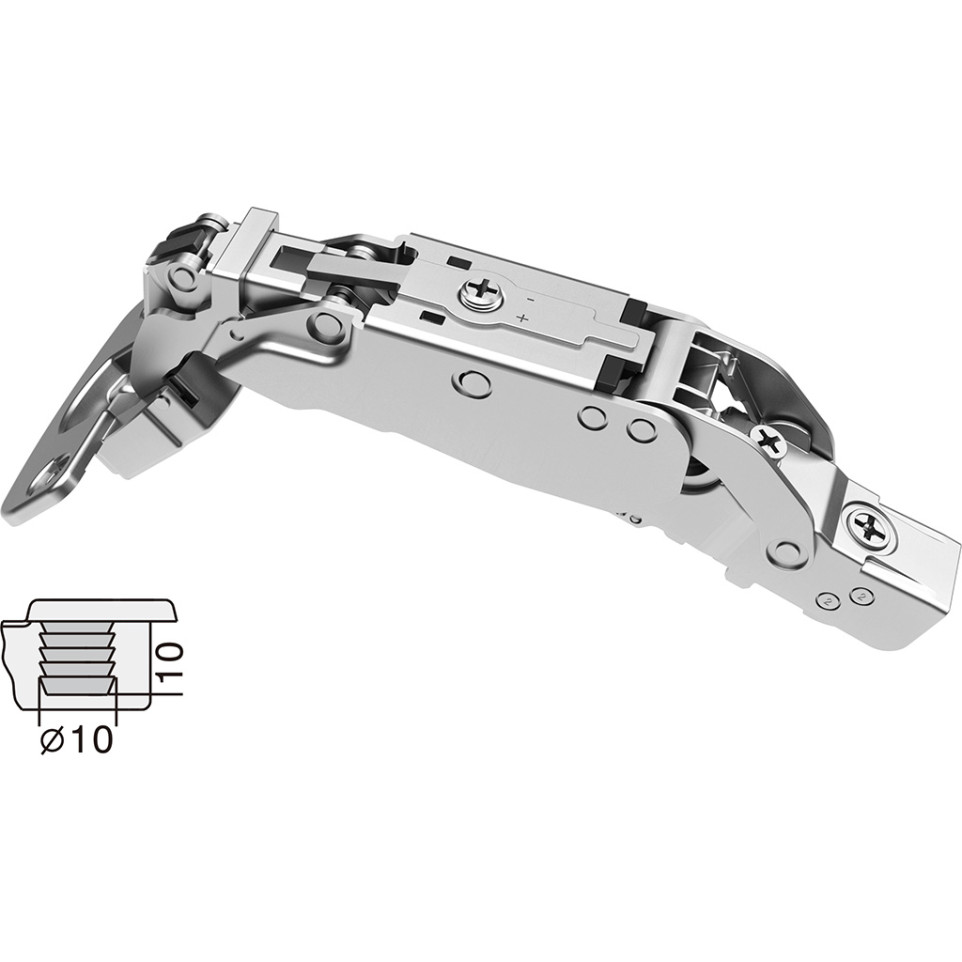

The Pivot-Star 160° Nickel-Plated Press-In Hinge offers a wide 160° opening with integrated soft-close and automatic closing, designed for overlay cabinet doors in residential and commercial environments.

Specifications

  • Nickel-plated finish for enhanced resistance to corrosion and wear
  • Integrated soft-close damper and automatic closing mechanism
  • Press-in (knock-in) mounting design, suitable for door thicknesses of 18–28 mm

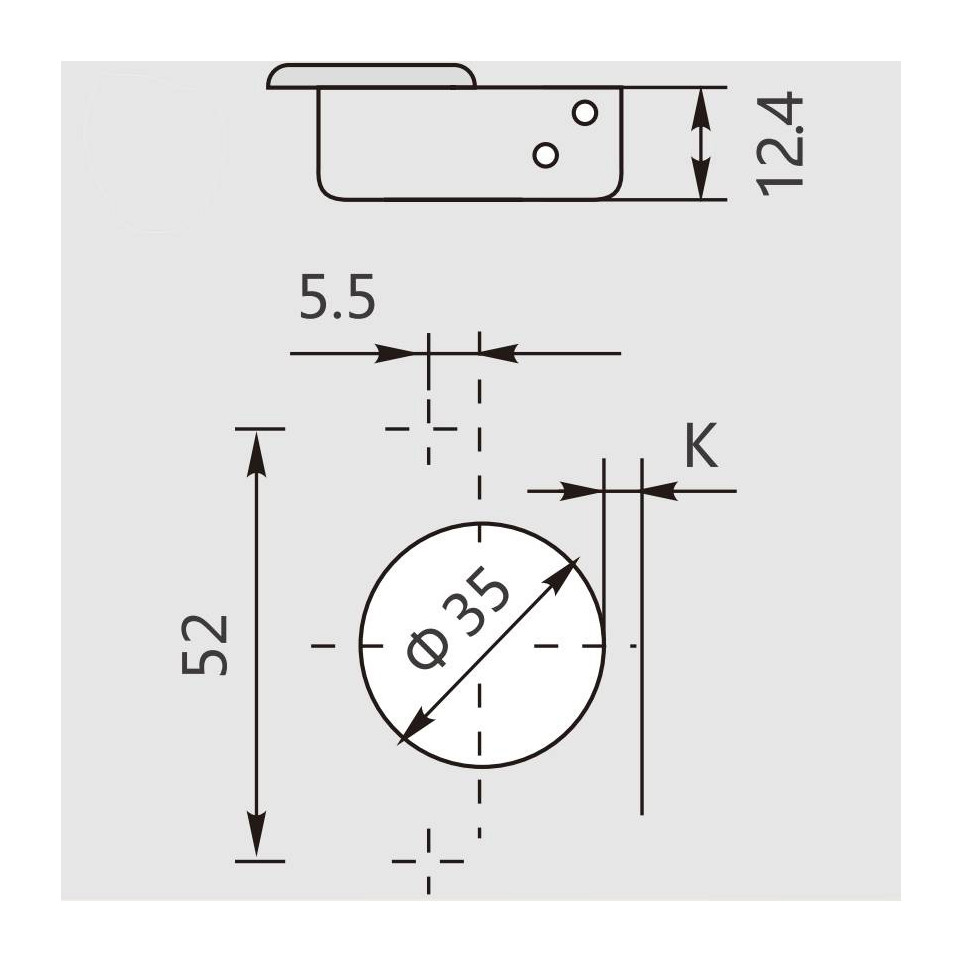

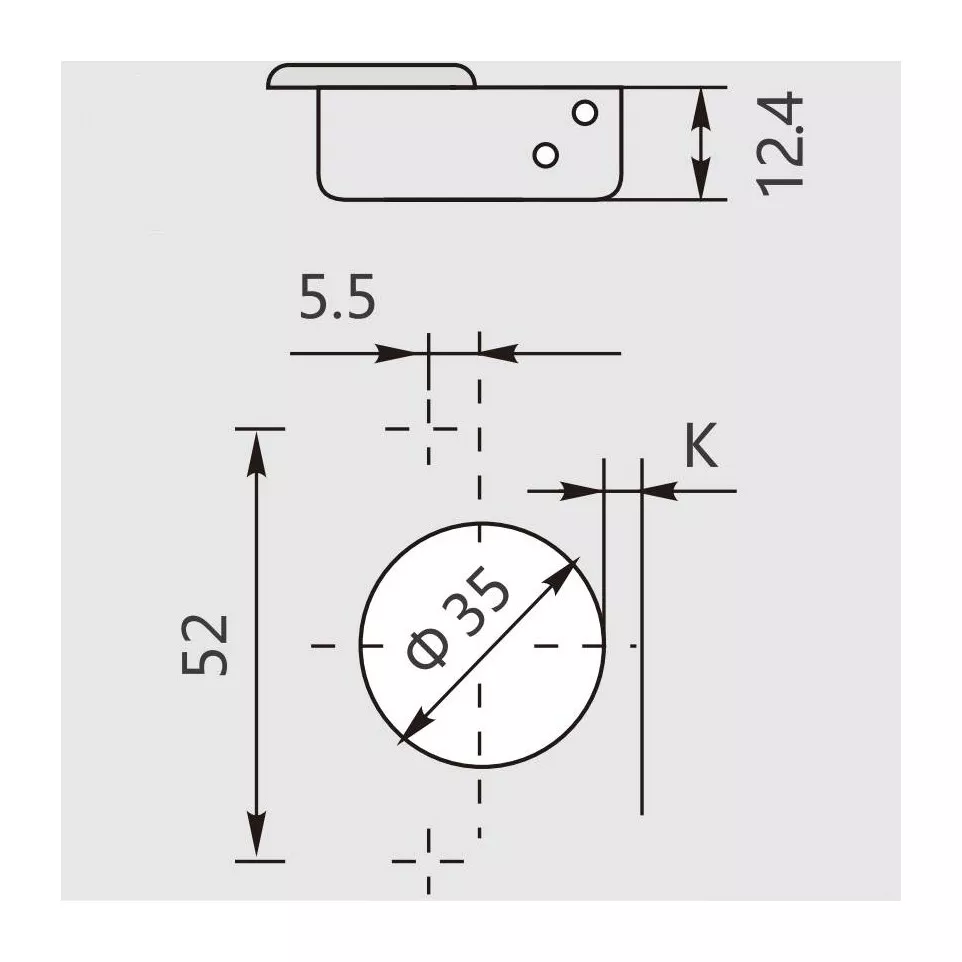

  • 35 mm hinge cup diameter with 12.4 mm depth

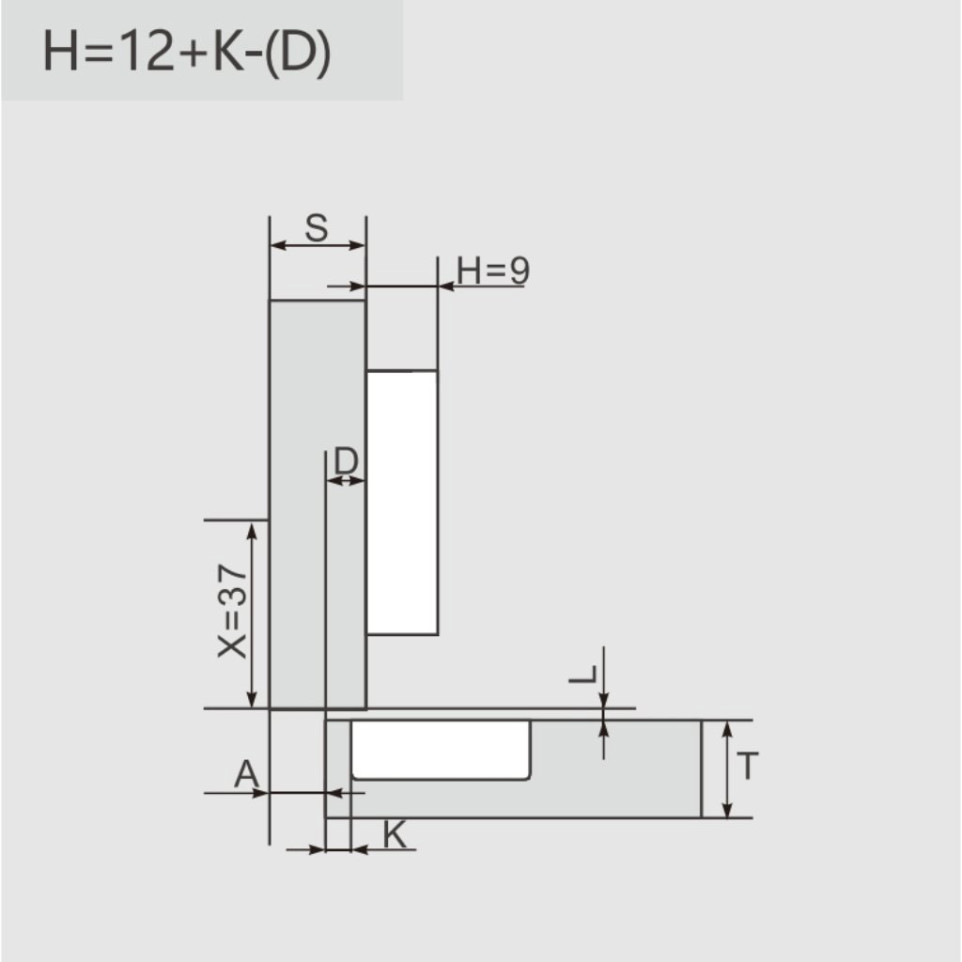

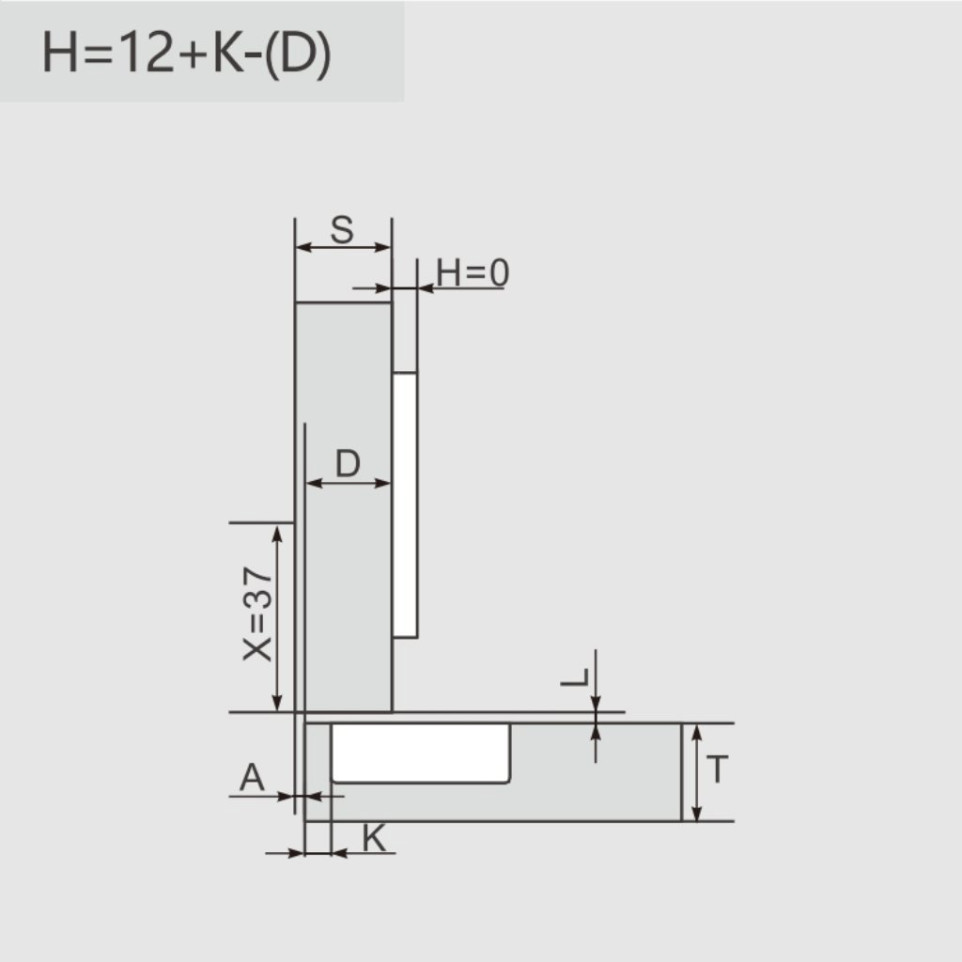

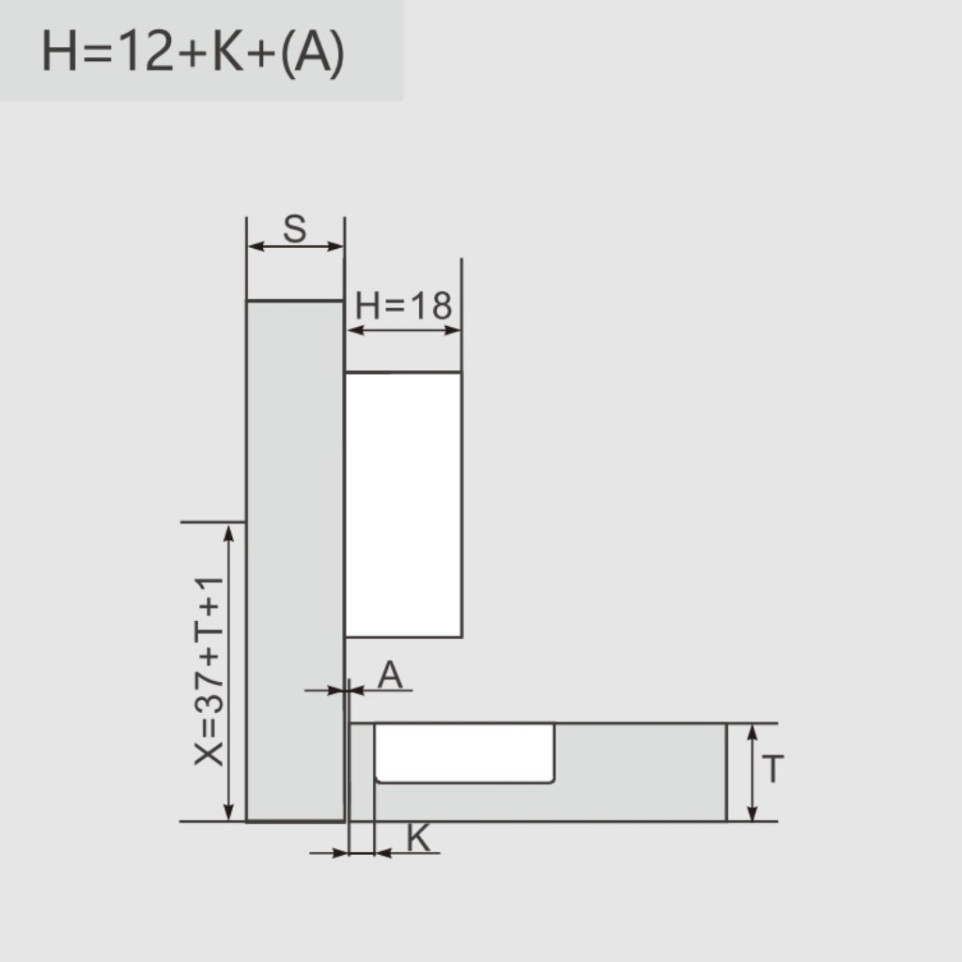

  • Overlay fitting type; drilling pattern 52 x 5.5 mm
  • Door drilling distance (K) adjustable from 3–6 mm
  • Designed for durability, tested for over 100,000 opening cycles

Usage

This hinge is pressed into place for quick and secure installation. Its soft-close feature provides gentle, controlled closure, while the automatic closing function ensures doors remain shut. Suitable for new installations or as a replacement on overlay cabinet doors with recommended thickness, it supports heavy and wide-opening applications.

FAQ

  1. What is the maximum opening angle of this hinge?

    • The maximum opening angle is 160°, providing wide access to cabinet interiors.

  2. Does the hinge offer soft-close and automatic closing?

    • Yes, it features both integrated soft-close damping and automatic closing for smooth, silent, and secure door operation.

  3. What door thicknesses is this hinge suitable for?

    • It fits doors between 18 mm and 28 mm in thickness.

  4. How is the hinge installed?

    • The hinge is mounted by pressing (knock-in) into the pre-drilled hole; no additional screws are needed for the cup.

  5. Can this hinge be used for overlay door mounting?

    • Yes, it is specifically designed for overlay (appliqué) door applications.
