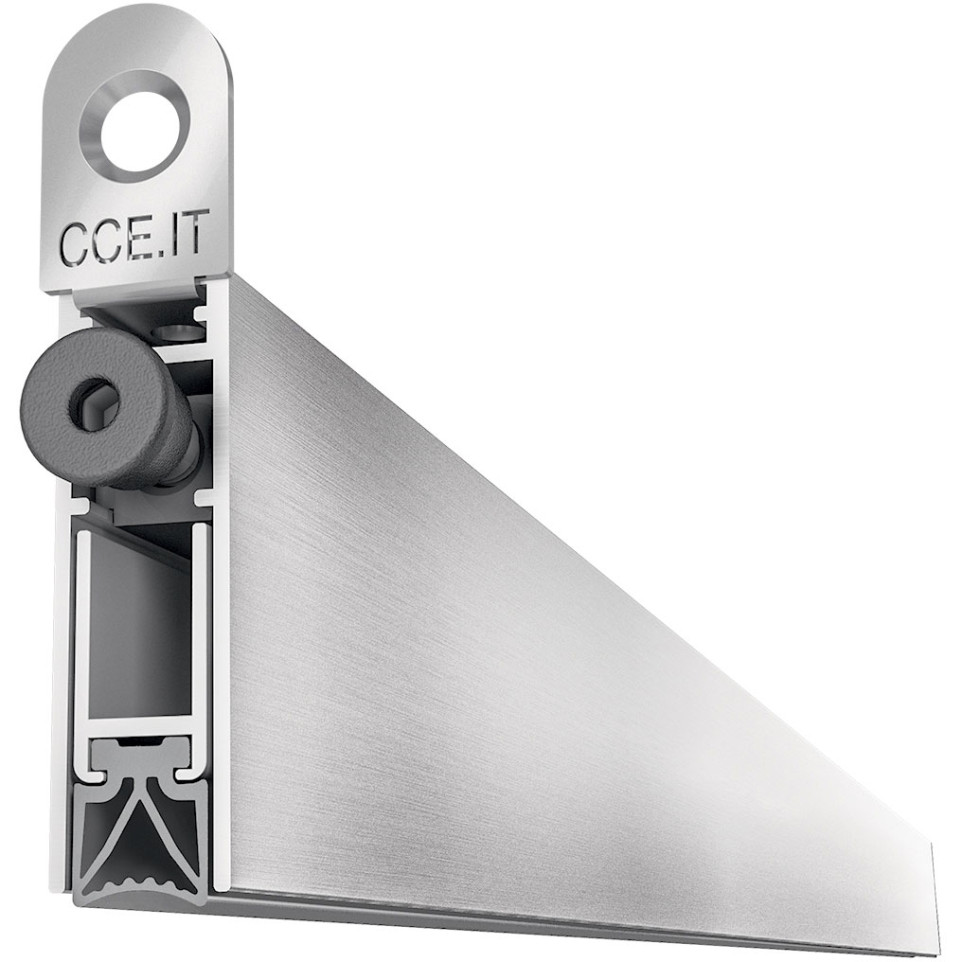

The CCE SQUAD 1240 Automatic Baseboard is a high-performance door sealing solution designed to eliminate gaps between doors and floors. Ideal for both wooden and armored doors, it creates an effective barrier against drafts, noise, and light infiltration.
Specifications
- Constructed with rigid nylon levers reinforced with fiberglass for maximum efficiency and uniform pressure on all floor types
- Fire-resistant silicone seal (UL94-V0 fire class certified)
- Self-directional articulated metal push button with adjustable nylon cap (3mm hex key)
- Lateral mounting brackets for secure installation
- Can be shortened by up to 200mm to fit custom door widths
- 630mm length for standard door widths
Usage
When the door closes, the push button compresses against the door frame or external stop, activating the thrust levers. These lower the internal mobile profile in a guillotine-like motion, starting from the button side and progressing to the opposite end, creating a complete seal along the entire door length.
FAQ
-
How does the automatic baseboard work? - The system activates when the door closes, pressing the push button against the frame, which triggers the mechanism to lower the seal uniformly against the floor.
-
Can I install this on any type of door? - Yes, the CCE SQUAD 1240 is designed for both standard wooden doors and security/armored doors.
-
How do I adjust the seal pressure? - Use a 3mm hex key to adjust the nylon cap on the push button to increase or decrease the seal pressure according to your floor conditions.
-
Can I cut the baseboard to fit my door? - Yes, the product can be shortened by up to 200mm from its original 630mm length.
-
What are the benefits of the fiberglass-reinforced mechanism? - The reinforced levers ensure long-term durability, consistent performance, and uniform pressure distribution across the entire seal, even with daily use.
