Product

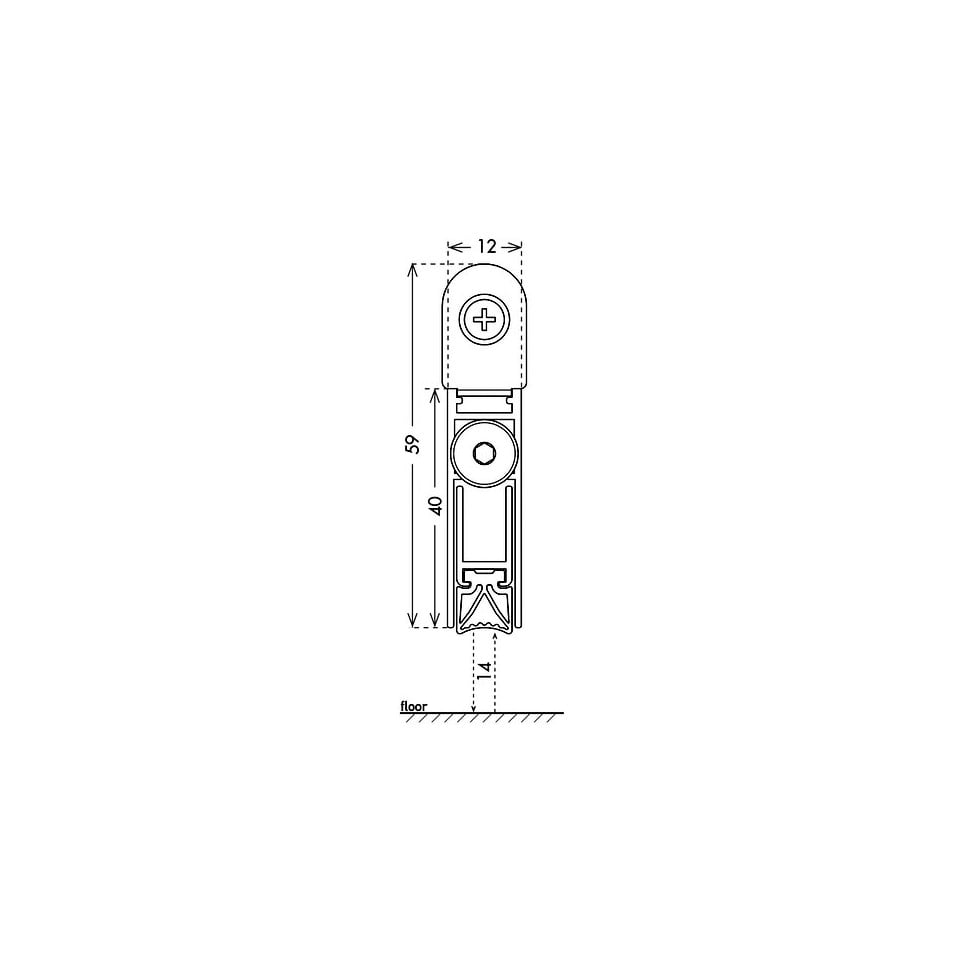

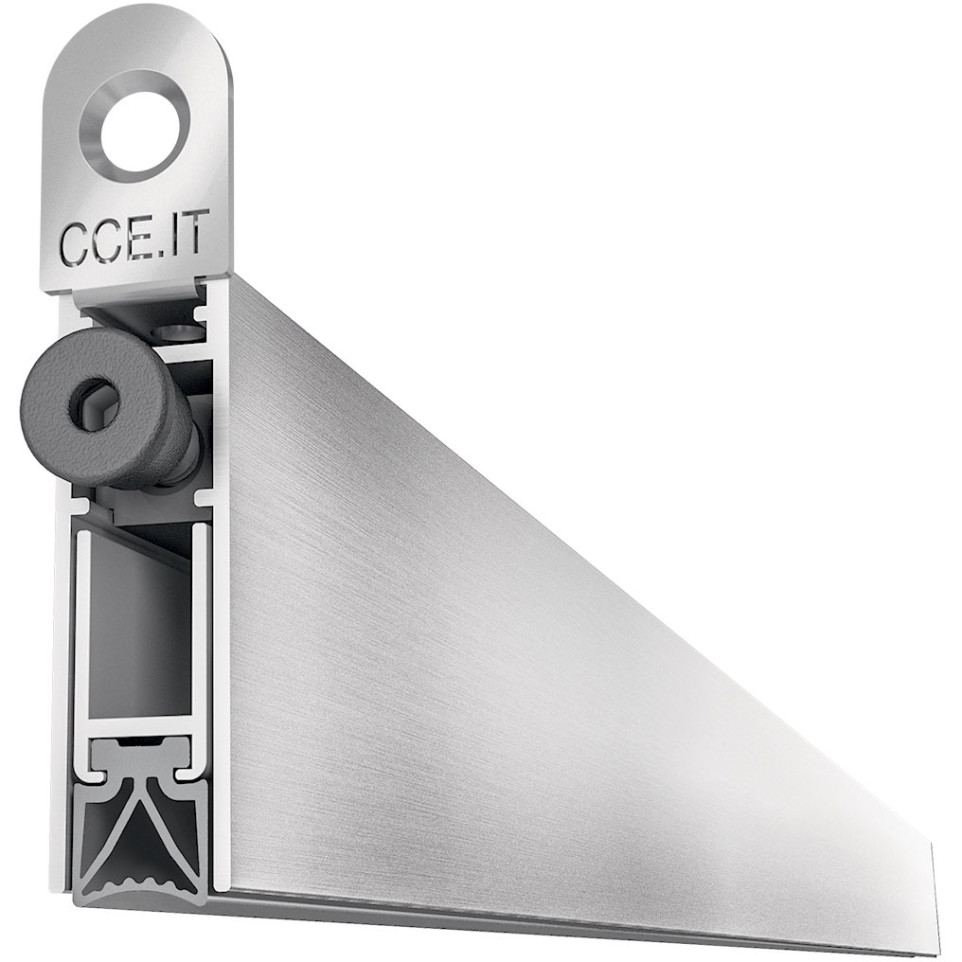

The CCE SQUAD 1240 automatic baseboard, reference 195050, is a precision-engineered drop-down seal designed for wooden and armored doors. It ensures a uniform, reliable seal against floors to eliminate drafts and enhance acoustic and thermal insulation.
Specifications
- Constructed with rigid nylon linkages reinforced with fiberglass for high efficiency and uniform pressure distribution
- Features a self-directing, metal push button with an adjustable nylon cap using a 3 mm hex key
- Equipped with a UL94-V0 fire-rated silicone gasket for added safety
- Side brackets for stable lateral mounting
- Can be trimmed up to 200 mm to fit various door widths
Usage
Install the baseboard at the door’s bottom using the provided side brackets. When the door closes, the push button compresses against the frame or stop, activating the internal mechanism. The mobile profile drops in a guillotine motion and presses the silicone seal fully against the floor, closing any gap for maximum insulation.
FAQ
- What types of doors is this baseboard suitable for?
It is designed for both wooden and armored doors.
- How is the sealing mechanism activated?
The seal deploys automatically when the door is closed, triggered by a push button pressed against the frame or an external stop.
- Can the length be adjusted to fit my door?
Yes, it can be shortened by up to 200 mm for a custom fit.
- What is the fire resistance of the seal?
The silicone gasket is UL94-V0 fire-rated, offering high fire resistance.
- How is the product installed?
Installation uses side brackets for secure and easy mounting on the door.
