CCE SQUAD 1240 Automatic Skirting Board 930mm per piece

CCE SQUAD 1240 Automatic Skirting Board 930mm per piece
CCE SQUAD 1240 Automatic Skirting Board 930mm per piece
CCE SQUAD 1240 Automatic Skirting...
CCE SQUAD 1240 Automatic Skirting...

Estimated delivery date :  Friday 24 July
€43.62 HT
In stock

Ref : FGT-195049

Variantes

Automatic CCE SQUAD 1240 Baseboard 430mm / piece Automatic CCE SQUAD 1240 Baseboard 430mm / piece Automatic CCE SQUAD 1240 Threshold 530mm/piece Automatic CCE SQUAD 1240 Threshold 530mm/piece Automatic CCE SQUAD Drop Down Door Seal 1240 1430 mm per piece Automatic CCE SQUAD Drop Down Door Seal 1240 1430 mm per piece Automatic Skirting Board CCE SQUAD 1240 730mm per piece Automatic Skirting Board CCE SQUAD 1240 730mm per piece CCE SQUAD 1240 Automatic Door Bottom 830mm per piece CCE SQUAD 1240 Automatic Door Bottom 830mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1030mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1030mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1230mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1230mm per piece CCE SQUAD 1240 automatic drop-down door seal 1330 mm / piece CCE SQUAD 1240 automatic drop-down door seal 1330 mm / piece CCE SQUAD 1240 Automatic Skirting Board 1130mm per piece CCE SQUAD 1240 Automatic Skirting Board 1130mm per piece CCE SQUAD Automatic Plinth 1240 630mm per piece CCE SQUAD Automatic Plinth 1240 630mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

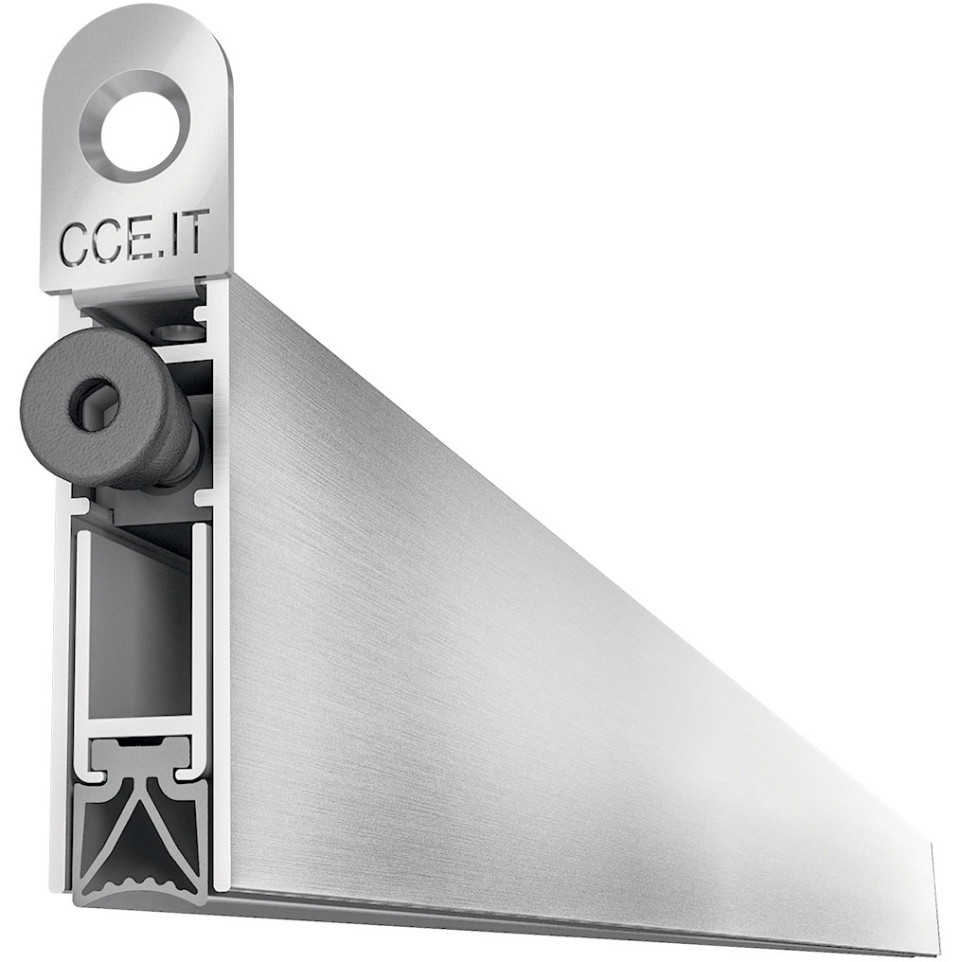

The CCE SQUAD 1240 automatic baseboard, 930mm, is designed for wooden and armored doors. It provides efficient sealing at the bottom of doors, ensuring optimal insulation and protection against air, dust, and noise.

Specifications

  • Features a rigid fiberglass-reinforced nylon linkage system for uniform pressure and efficient sealing
  • Equipped with a metal articulated, self-directing push button and an adjustable nylon cap
  • Fitted with a fire-retardant silicone seal rated to UL94-V0
  • Secured using lateral mounting brackets
  • Can be shortened by up to 200 mm

Usage

When the door closes, the push button compresses against the frame or an external stop, activating the internal linkage. This mechanism gently lowers the internal movable profile, ensuring the silicone seal adheres to the floor along the door's entire length and blocks gaps between the door and floor.

FAQ

  1. Is the baseboard compatible with armored doors?
    Yes, it is designed for both wooden and armored doors.

  2. How is the product installed?
    The baseboard is fixed in place using lateral mounting brackets.

  3. Can the length be adjusted?
    Yes, it can be shortened by up to 200 mm to suit different door widths.

  4. What is the sealing material made of?
    The seal is made of a fire-retardant silicone with UL94-V0 certification.

  5. How is the drop-down mechanism activated?
    The mechanism is triggered by a push button that engages when the door is closed, automatically lowering the internal seal.

mvm-dt-2025-06-04

See more

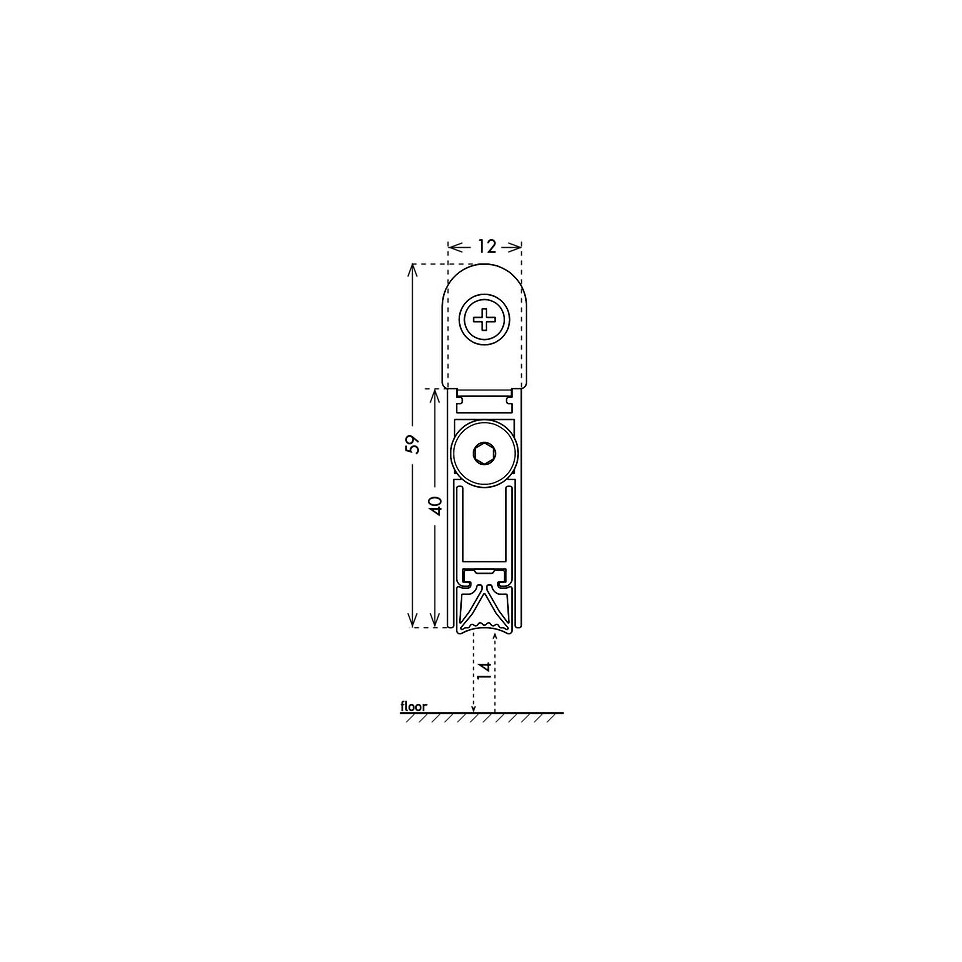

Product Details

Brand CCE
Length (in mm) 930
Stroke ( mm ) 14
Groove width (mm) 12,00
FGT-195049
New
