CCE SQUAD 1240 Automatic Drop Down Seal 1230mm per piece

CCE SQUAD 1240 Automatic Drop Down Seal 1230mm per piece
CCE SQUAD 1240 Automatic Drop Down Seal 1230mm per piece
CCE SQUAD 1240 Automatic Drop Down...
CCE SQUAD 1240 Automatic Drop Down...

Estimated delivery date :  Friday 18 September
€45.89 HT
In stock (5)

Ref : FGT-195052

Variantes

Automatic CCE SQUAD 1240 Baseboard 430mm / piece Automatic CCE SQUAD 1240 Baseboard 430mm / piece Automatic CCE SQUAD 1240 Threshold 530mm/piece Automatic CCE SQUAD 1240 Threshold 530mm/piece Automatic CCE SQUAD Drop Down Door Seal 1240 1430 mm per piece Automatic CCE SQUAD Drop Down Door Seal 1240 1430 mm per piece Automatic Skirting Board CCE SQUAD 1240 730mm per piece Automatic Skirting Board CCE SQUAD 1240 730mm per piece CCE SQUAD 1240 Automatic Door Bottom 830mm per piece CCE SQUAD 1240 Automatic Door Bottom 830mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1030mm per piece CCE SQUAD 1240 Automatic Drop Down Seal 1030mm per piece CCE SQUAD 1240 automatic drop-down door seal 1330 mm / piece CCE SQUAD 1240 automatic drop-down door seal 1330 mm / piece CCE SQUAD 1240 Automatic Skirting Board 1130mm per piece CCE SQUAD 1240 Automatic Skirting Board 1130mm per piece CCE SQUAD 1240 Automatic Skirting Board 930mm per piece CCE SQUAD 1240 Automatic Skirting Board 930mm per piece CCE SQUAD Automatic Plinth 1240 630mm per piece CCE SQUAD Automatic Plinth 1240 630mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

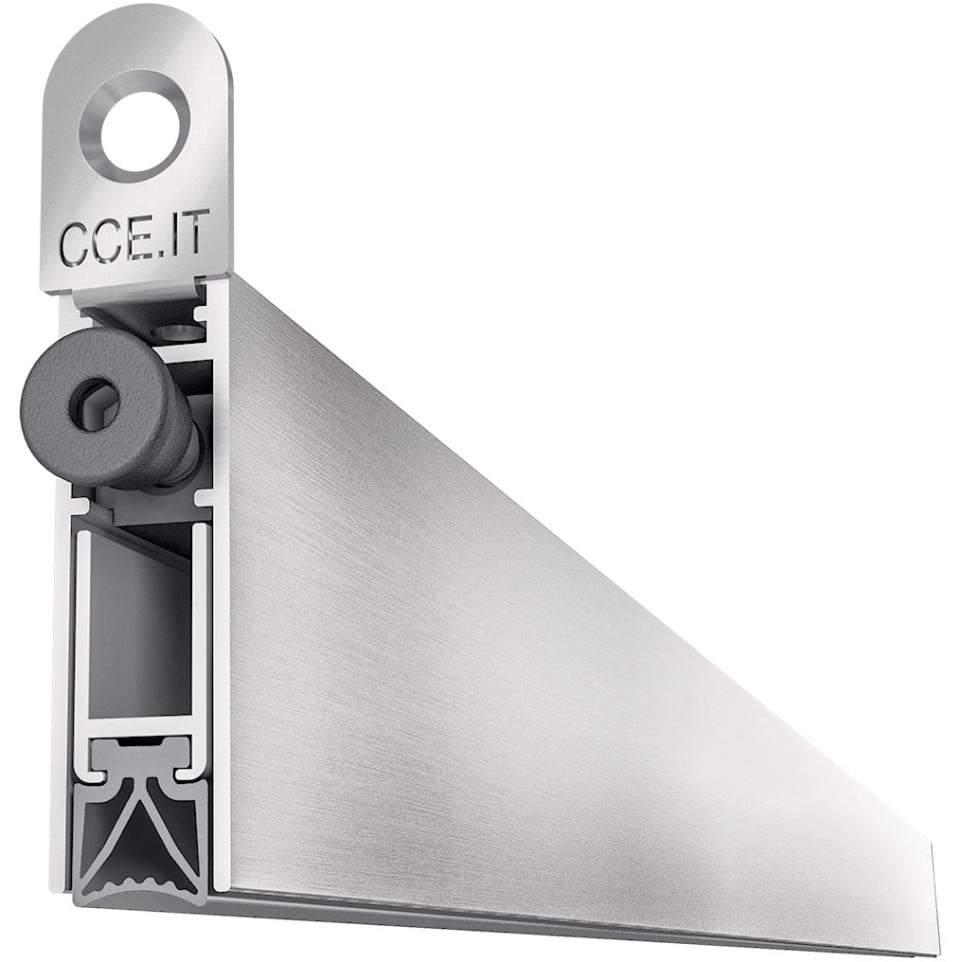

The CCE SQUAD 1240 1230mm automatic baseboard is designed for seamless integration with wood and reinforced doors, using an automatic drop-down mechanism to seal gaps at the threshold of doorways.

Specifications

  • Design: Automatic baseboard system with rigid, fiberglass-reinforced nylon levers ensures uniform pressure and maximum efficiency.
  • Materials: Metal push button with nylon cap and silicone fireproof seal (UL94-V0 rating).
  • Durability and Certification: Fire-resistant silicone seal meets UL94-V0 standards.
  • Features: Push-button mechanism operates with a guillotine-style movement, allowing complete lowering and sealing. Lateral mounting brackets are included for secure installation. The baseboard can be shortened by up to 200mm if required.

Usage

When the door is closed, the button is pressed against the frame or external stop, activating the system. The rigid levers push the internal profile downward along both sides, ensuring complete contact with the floor. This creates a reliable seal beneath the door, improving insulation and preventing drafts.

FAQ

  1. What types of doors is this baseboard suitable for?
    Designed for wood and armored (reinforced) doors.

  2. How does the automatic mechanism function?
    The push button is compressed against the frame or a stop, activating nylon-reinforced levers that lower the profile to seal the gap at the threshold.

  3. What material is used for the seal?
    The product uses a fireproof silicone seal (UL94-V0).

  4. How is the baseboard installed?
    Installation is done using lateral mounting brackets, and the length can be reduced by up to 200mm if needed.

  5. Is the push button adjustable?
    Yes, the metal push button features an adjustable nylon cap that can be regulated with a 3mm hex key.

See more

Product Details

Brand CCE

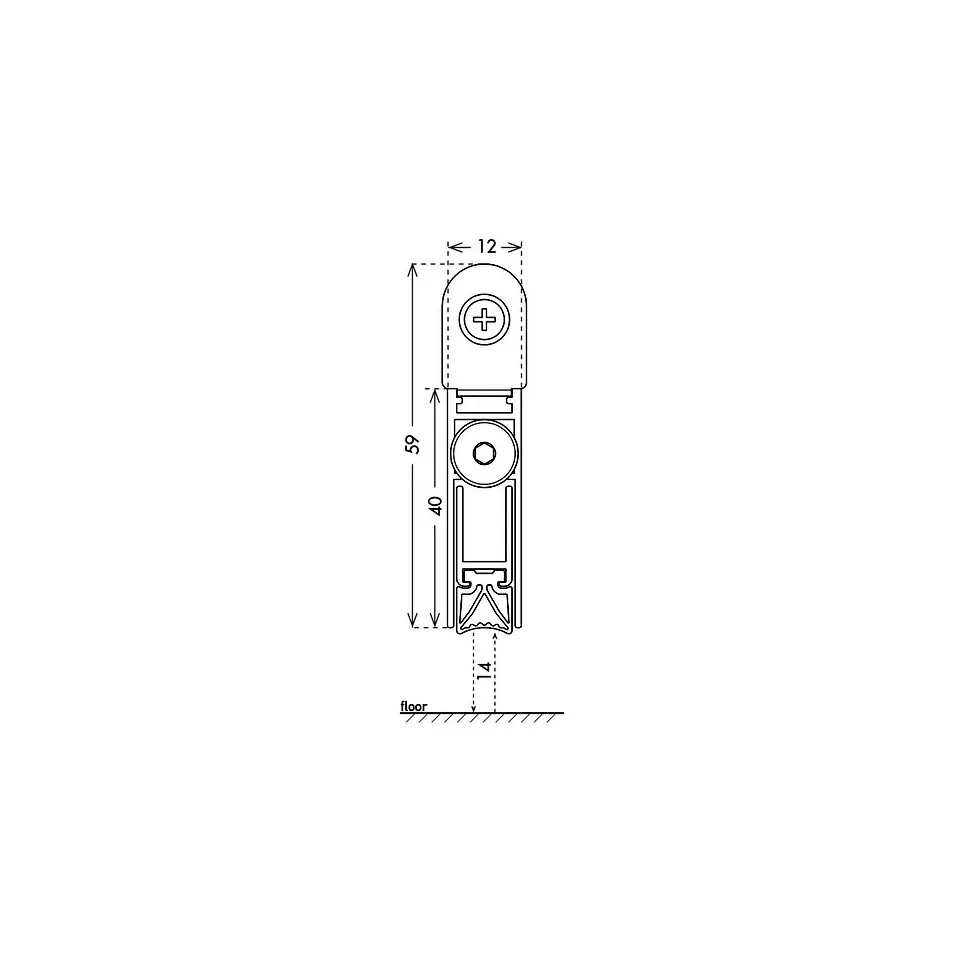

Length (in mm) 1.230
Stroke ( mm ) 14
Groove width (mm) 12,00
FGT-195052
