Product

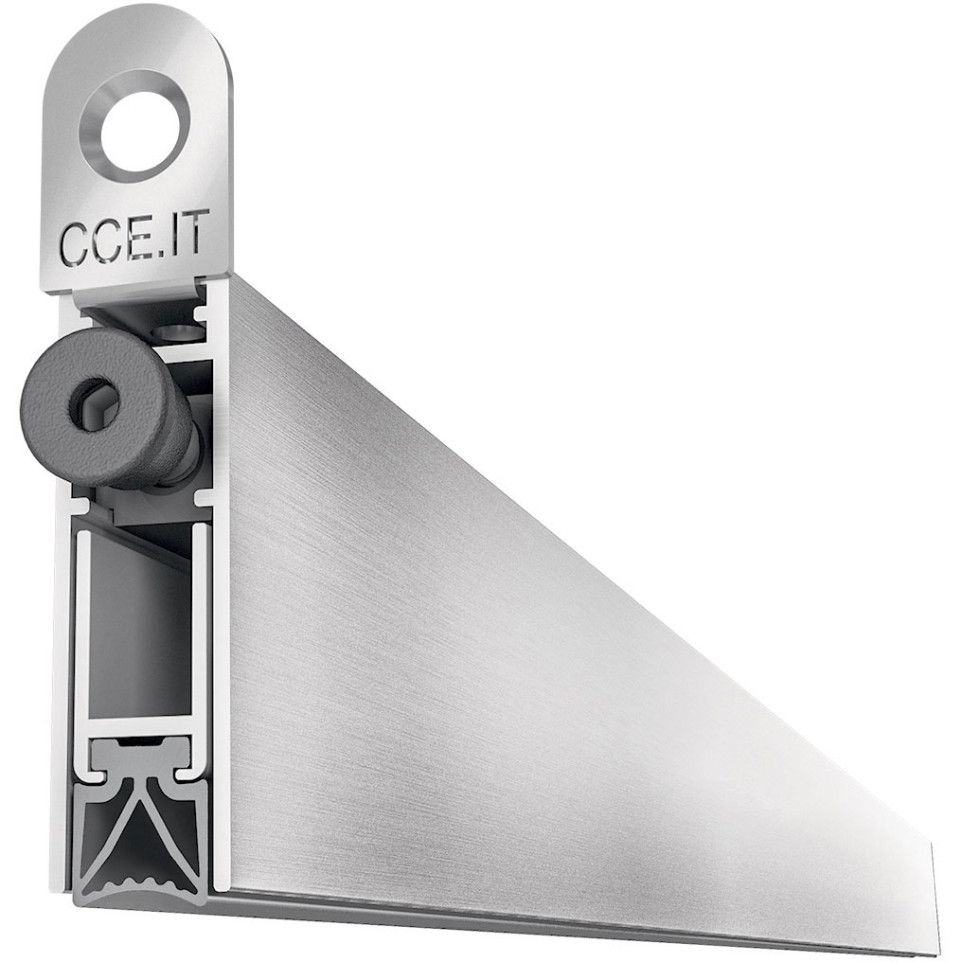

The CCE SQUAD 1240 automatic baseboard (530 mm) is a drop-down door seal designed for wooden and security doors, providing reliable sealing of the gap between the door leaf and the floor for improved comfort and protection.
Specifications
- Rigid-link mechanism in fiber glass–reinforced nylon, driving an internal mobile profile in a progressive guillotine-type movement for uniform pressure on all floor types.
- Fire-retardant silicone gasket rated UL94 V-0 and metal articulated self-directing push button with adjustable nylon cap, ensuring stable performance and compliance with demanding safety requirements.

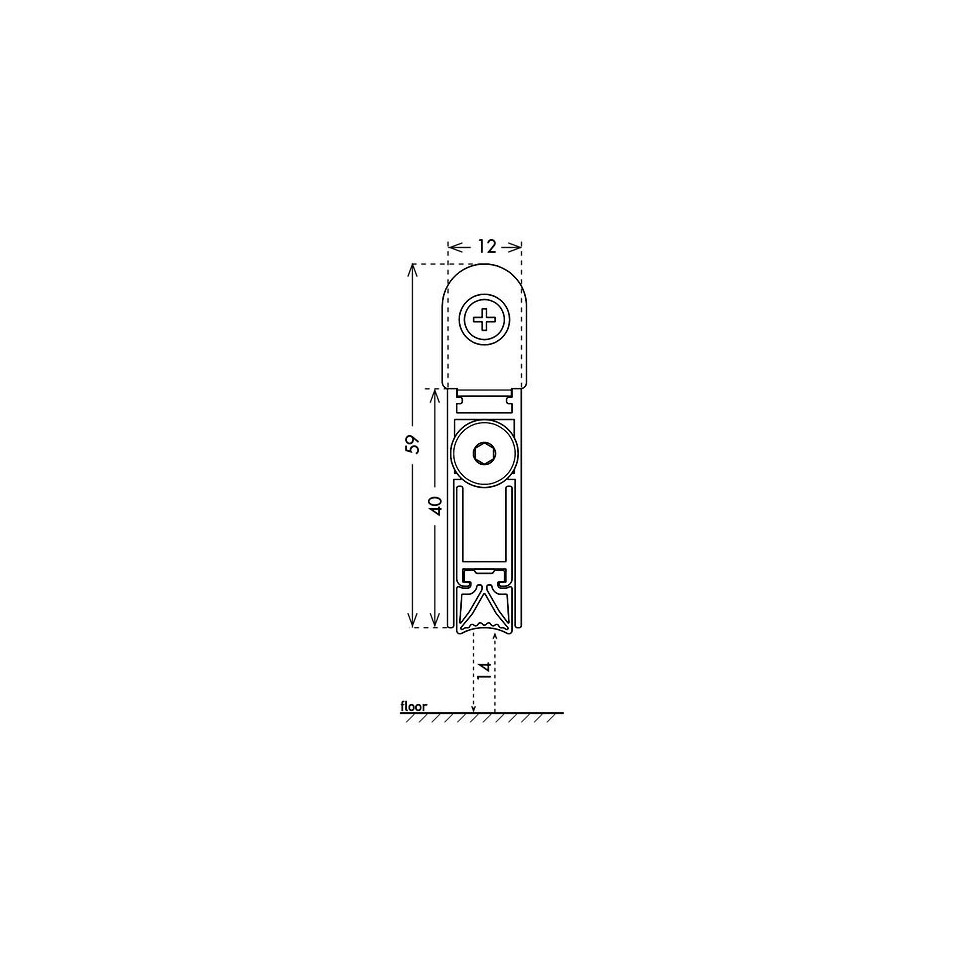

- Suitable for wooden and armoured doors, supplied with lateral mounting brackets, can be shortened by up to 200 mm, and delivers continuous floor contact along the entire door width.
Usage
When the door closes, the push button presses against the frame or an external stop, activating the internal linkage that lowers the movable profile. The silicone seal then descends from the push-button side to the opposite side, sealing the gap uniformly against air, dust, noise, and light infiltration. When the door opens, the mechanism releases and the profile rises back into the base of the door.
FAQ
-
What types of doors is this automatic baseboard compatible with?
It is designed for use on wooden doors and armoured or security doors, providing a concealed and efficient drop-down seal along the bottom edge.
-
How is the CCE SQUAD 1240 automatic baseboard installed?
It is fixed using the supplied lateral brackets. The baseboard is typically inserted into a routed groove at the bottom of the door and secured on each side according to the manufacturer’s instructions.
-
Can the length of the baseboard be adjusted on site?
Yes, the profile can be shortened by up to 200 mm, allowing adaptation to different door widths while maintaining correct operation of the internal mechanism.
-
How does the self-directing push button work?
The metal articulated push button with adjustable nylon cap automatically aligns to the door frame or stop. When the door closes, it compresses the button, which activates the rigid-link system and lowers the internal sealing profile.
-
What are the benefits of the fire-retardant silicone seal?
The silicone gasket, rated UL94 V-0, offers resistance to fire propagation and provides durable, flexible sealing performance over time, contributing to improved safety and environmental sealing at the door bottom.
