Product

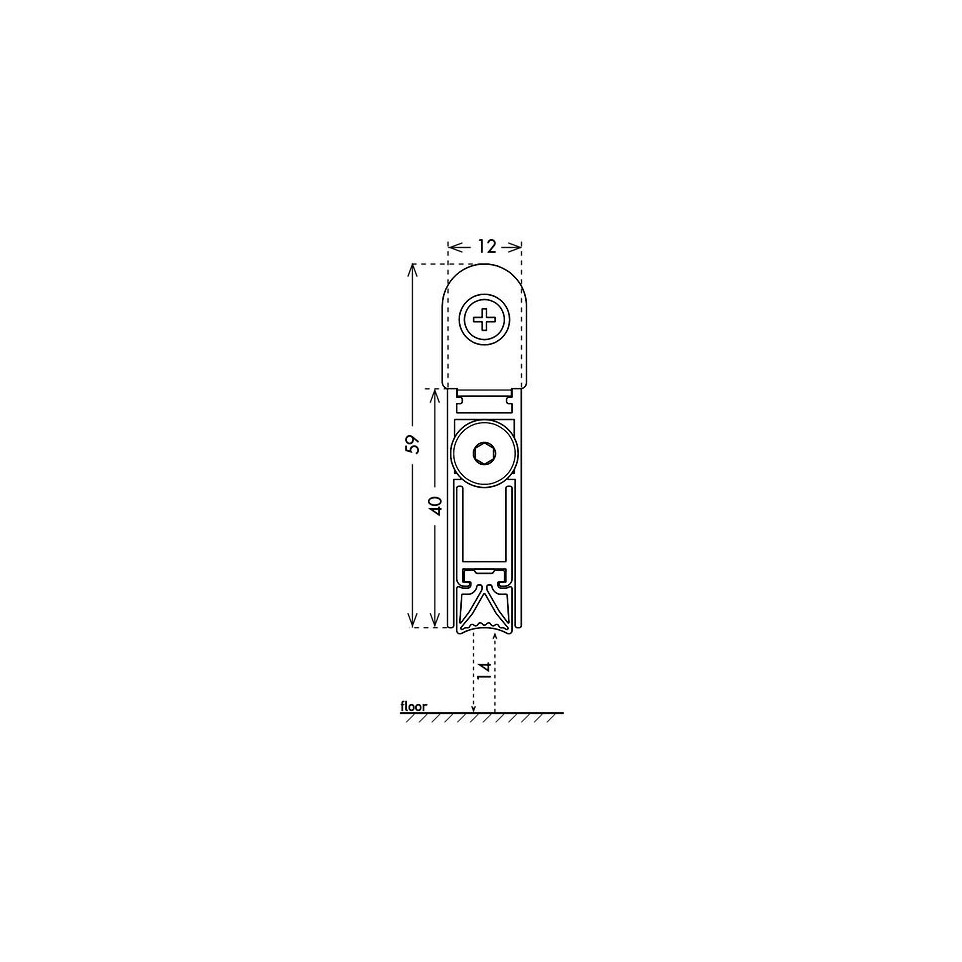

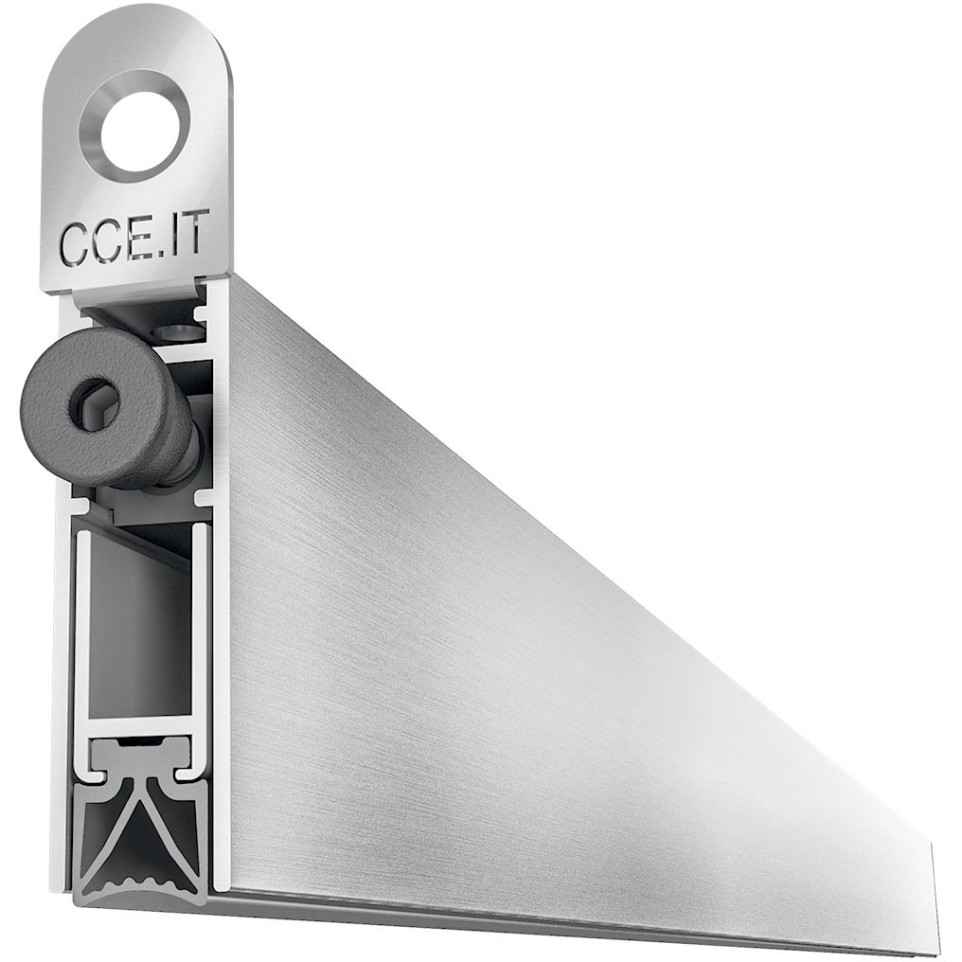

The CCE SQUAD 1240 automatic baseboard is a concealed drop-down seal for 1330 mm wooden or security doors, designed to close the gap under the door and improve acoustic, thermal, and smoke control performance.
Specifications
- Rigid glass-fiber reinforced nylon linkage system
- Self-directional metal push button with adjustable nylon cap (3 mm hex key)
- Fire-retardant silicone gasket, classification UL94-V0
- Supplied with lateral fixing brackets
- Maximum shortening capacity: 200 mm
Usage
When the door closes, the push button presses against the frame or an external stop, activating the internal linkage. The inner profile drops in a guillotine-style movement, first on the button side then on the opposite side, until the fire-retardant silicone seal contacts the floor along the full door width.
FAQ
-
[ What types of doors is the CCE SQUAD 1240 suitable for? - It is designed for installation on wooden and armored (security) doors, where an automatic drop-down seal is required under the door leaf.]
-
[ How does the automatic sealing mechanism operate? - Closing the door compresses the push button against the frame or stop, which drives the rigid linkage system and lowers the internal profile so that the seal contacts the floor.]
-
[ Can the length of the profile be adjusted on site? - Yes, the automatic baseboard can be shortened by up to 200 mm, allowing adaptation to different door widths within the specified range.]
-
[ How is the product fixed to the door? - The unit is mounted using the supplied lateral brackets, which allow precise positioning and secure fastening inside the door bottom.]
-
[ What advantages does the fire-retardant silicone seal provide? - The UL94-V0 classified silicone gasket offers improved fire behavior and helps provide continuous contact with the floor, contributing to better insulation and smoke or draft limitation.]
