Product

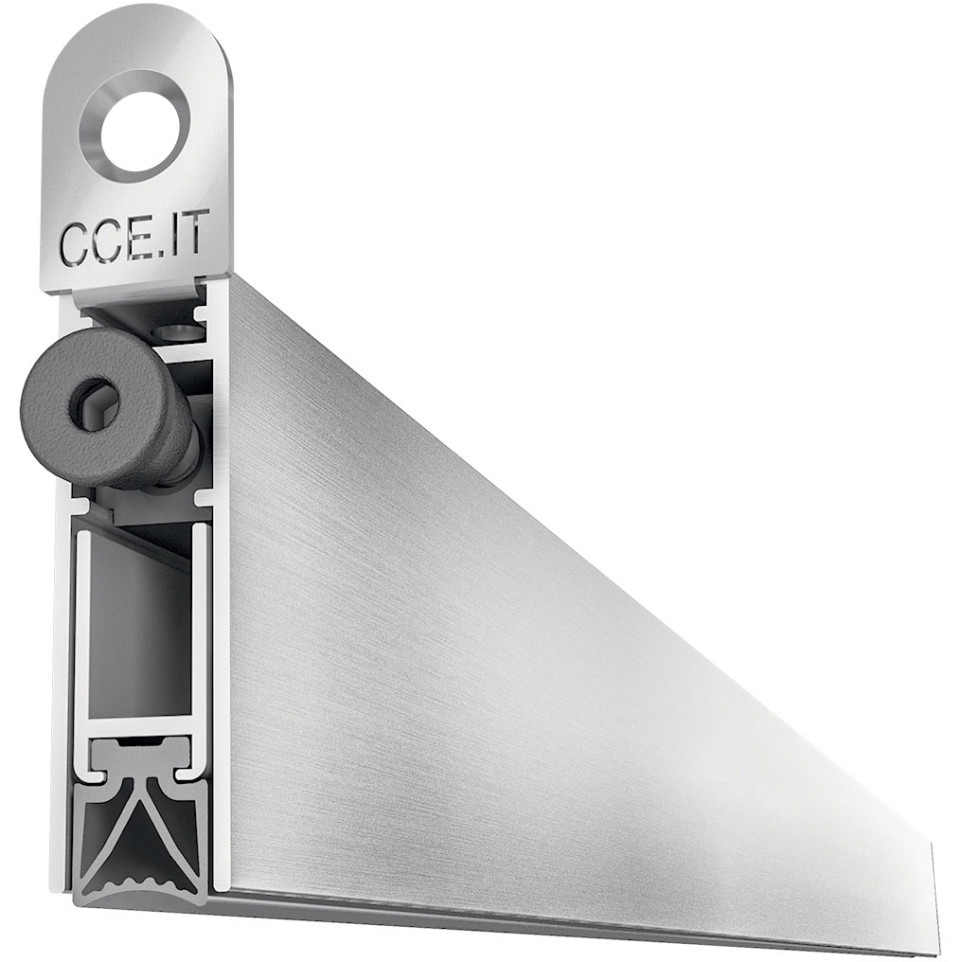

The CCE SQUAD 1240 automatic baseboard is a high-performance door bottom seal designed to create an effective barrier between doors and floors, eliminating drafts, noise, and light infiltration in both residential and commercial settings.
Specifications
- Manufactured with rigid nylon linkage system reinforced with fiberglass for maximum efficiency and uniform pressure on all floor types
- Fire-resistant silicone seal (UL94-V0 fire class certification)
- Self-directional articulated metal push button with adjustable nylon cap (using 3mm hex key)
- Suitable for wooden and reinforced security doors
- Can be shortened by up to 200mm for custom installations
- Lateral mounting brackets included for secure installation
Usage
When the door closes, the push button compresses against the door frame, activating the internal mechanism. This triggers a guillotine-like movement that lowers the mobile internal profile, creating a perfect seal along the entire length of the door and effectively insulating the gap between door and floor.
FAQ
-
How does the automatic baseboard work? The mechanism is activated by a push button that, when compressed against the door frame, triggers internal linkages that lower the sealing profile in a guillotine motion, creating a tight seal against the floor.
-
Can I cut the baseboard to fit my door? Yes, the CCE SQUAD 1240 can be shortened by up to 200mm to fit your specific door width requirements.
-
What types of doors is this product compatible with? This automatic baseboard is designed for both wooden doors and reinforced security doors.
-
How is the baseboard installed? Installation is accomplished using the included lateral mounting brackets that secure the unit to the bottom of the door.
-
Is the seal fire-resistant? Yes, the silicone seal is certified to UL94-V0 fire classification standards, providing additional safety in case of fire.
