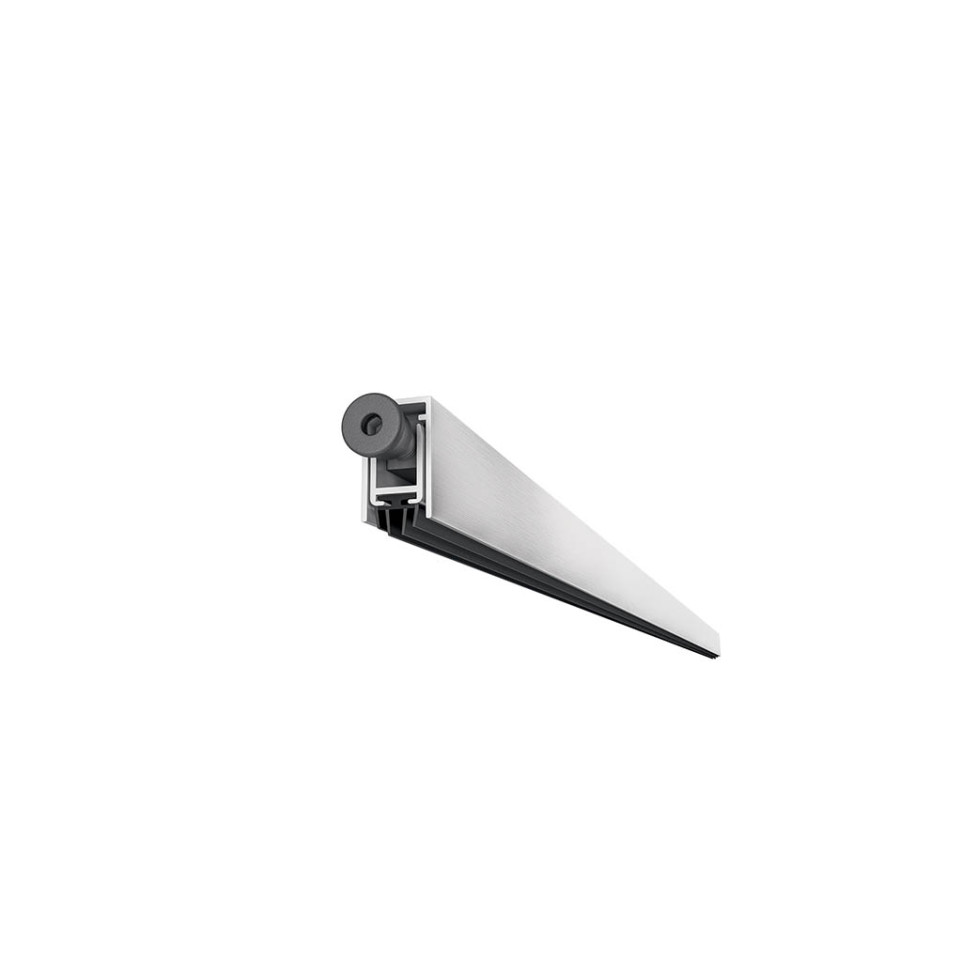

Automatic baseboard CCE TREND 1220 530mm is engineered to ensure optimal sealing beneath doors, effectively blocking sound, smoke, and drafts in residential and commercial settings. Suitable for use with wood, aluminum, PVC, and reinforced doors.
Specifications
- Manufactured with rigid nylon operating arms reinforced with fiberglass for stability
- Equipped with an auto-directional metal plunger with an adjustable nylon cap (3 mm hex key)
- Features a co-extruded thermoplastic (rigid and flexible) flame-retardant seal
- Compatible with door bottoms up to 530mm; unit can be trimmed by up to 200mm
- Internal mechanism must be removed for screw installation, then repositioned
- Achieves up to 39 dB sound insulation; tested for smoke control and certified for use with fire-resistant doors (30/60 minutes)
- Uniform pressure distribution ensures continuous contact with flooring surfaces
Usage

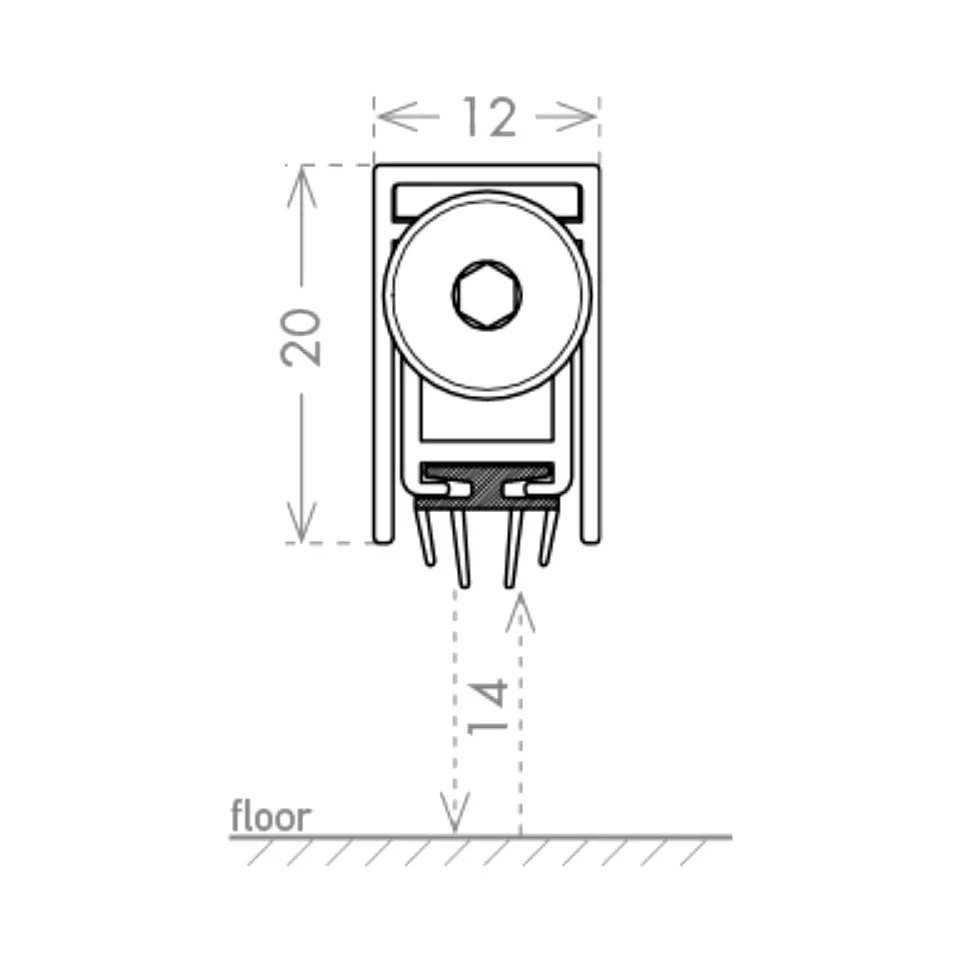

When the door closes, the plunger is pressed against the frame or a stop, activating the internal linkage. The movable seal descends in a guillotine motion, applying even pressure from the plunger side to the opposite end, closing the gap between door and floor. To install, temporarily remove the internal mechanism, secure the baseboard with screws (not included), and reinsert mechanism.
FAQ
-
What door materials is this automatic baseboard compatible with?
Compatible with PVC, wood, aluminum, and armored doors.
-
Can I trim the baseboard to fit my door width?
Yes, you can shorten the product by up to 200 mm if needed.
-
How effective is the sound insulation?
It provides up to 39 dB of noise reduction, depending on the door and seal type.
-
Is the seal suitable for fire and smoke protection?
Yes, the product is tested for smoke control and certified for use with 30 or 60-minute fire doors.
-
How is the product installed?
Remove the internal mechanism, fix the baseboard to the door with screws, and reinsert the mechanism before final use.
