Product

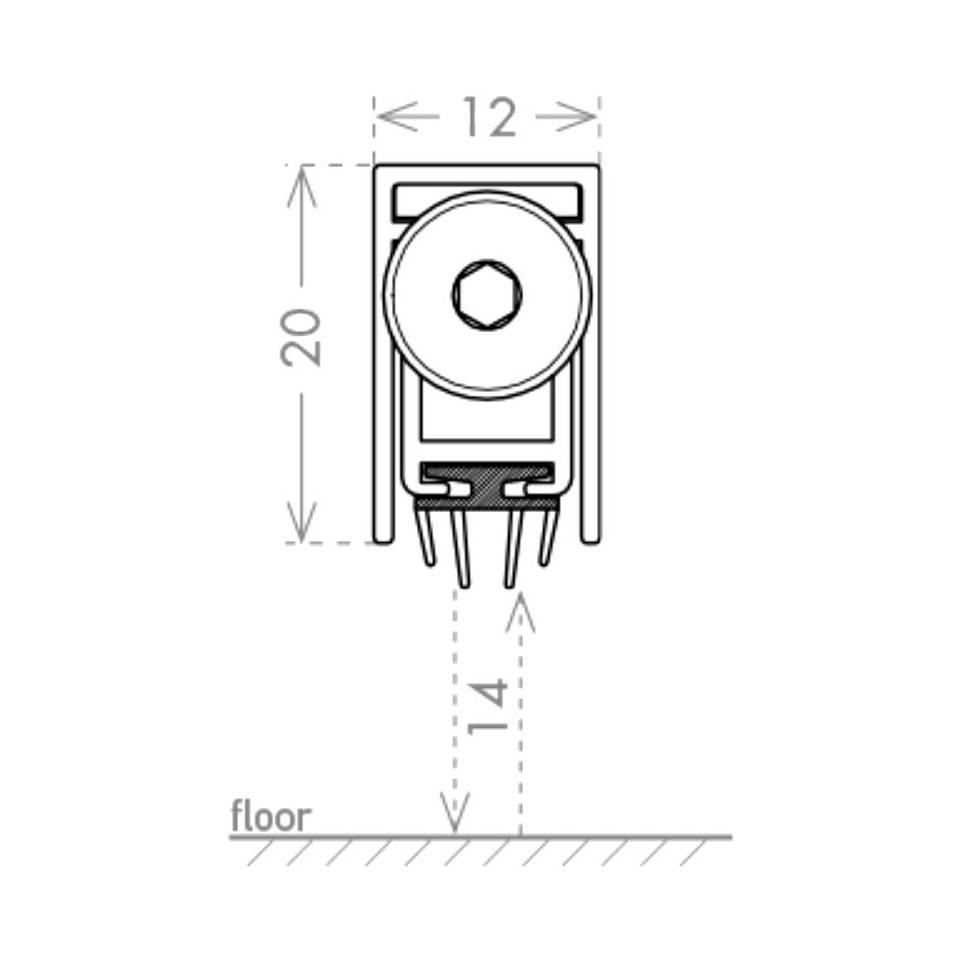

Automatic baseboard CCE TREND 1220–1430mm, designed for optimal door bottom sealing. Suitable for use with PVC, wood, aluminum, and security doors, ensuring a draft and noise-free environment.
Specifications
- Features rigid nylon linkages reinforced with fiberglass for uniform pressure and lasting effectiveness.
- Incorporates a self-adjusting metal push button with a nylon cap, adjustable via 3mm hex key.
- Seal made of co-extruded thermoplastic, combining rigid and flexible, flame-retardant materials.
- Maximum length reduction: 200mm for custom fitting.
- Installation requires removal and re-insertion of the mechanism; baseboard is fixed with screws (not included).
Usage
When the door closes, the push button is compressed against the frame or a stop, activating the internal linkage. This mechanism lowers the mobile internal profile in a guillotine motion, sealing the gap efficiently; the thermoplastic joint adheres along the full door width for reliable insulation.
FAQ
-
Which door types are compatible with the CCE TREND automatic baseboard?
Compatible with PVC, wood, aluminum, and armored/security doors.
-
How do I install the baseboard?
Remove the internal mechanism, fix the baseboard with screws, and then reinsert the mechanism.
-
Can the length be adjusted for custom door sizes?
Yes, the baseboard can be shortened by up to 200mm to fit different door widths.
-
Is the seal resistant to fire and wear?
Yes, the joint uses co-extruded flame-retardant thermoplastic for durability and safety.
-
What adjustment options are available for the push button?
The push button's nylon cap can be precisely adjusted with a 3mm hex key for optimal activation.
