Product

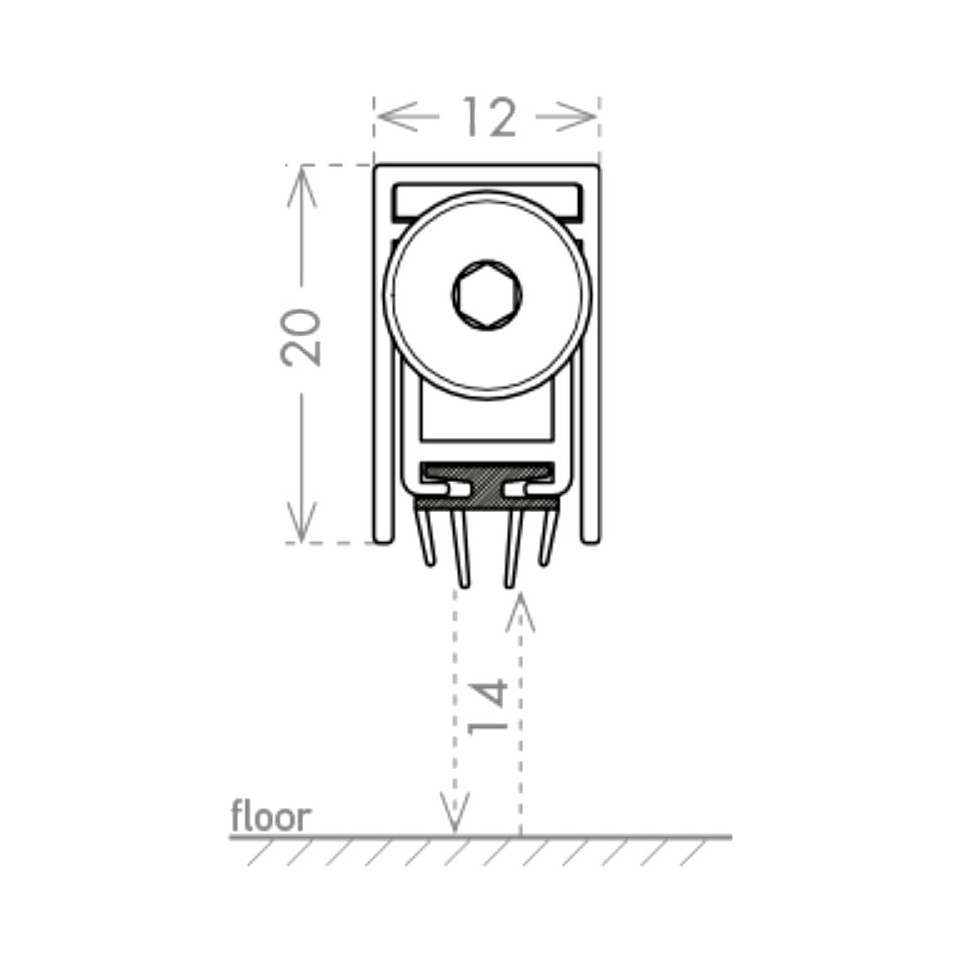

The CCE TREND 1220 automatic baseboard is an engineered drop-down seal for doors, designed to efficiently close the gap between the door and the floor. Ideal for use with PVC, wood, aluminum, and armored doors, it provides reliable insulation for various environments.
Specifications
- Manufactured with rigid nylon linkages reinforced with fiberglass for optimal durability and consistent pressure across all floor types
- Features a self-directing, articulated metal push-button with an adjustable nylon cap (adjustable via a 3 mm hex key)
- Sealing gasket made of co-extruded, flame-retardant thermoplastic material (rigid and flexible components)
- Can be installed with screws (not included) after temporarily removing the internal mechanism; maximum shortening capacity: 200 mm per piece
- Suitable for both residential and commercial doors, targeting sound and draft insulation needs
Usage
The baseboard automatically descends when the door is closed, activated by a push-button pressing against the frame or a fixed stop. This triggers a sequential guillotine-like movement, ensuring the internal profile seals to the floor along the entire door width, efficiently blocking air, dust, and noise.
FAQ
-
What types of doors is the CCE TREND 1220 compatible with?
It can be used on PVC, wood, aluminum, and armored doors.
-
How does the automatic sealing mechanism work?
When the door closes, the push-button activates and the internal seal lowers to contact the floor, creating a continuous seal.
-
Can the baseboard be shortened to fit different door widths?
Yes, it can be trimmed by up to 200 mm to match your specific door size.
-
Is installation complicated, and are screws included?
Installation requires removing the internal mechanism to fix the screws, but screws are not included with the product.
-
What tools are needed for adjustment?
A 3 mm hex key is needed to adjust the nylon cap of the push-button.
