CCE Trend Automatic Drop Down Seal 1220 x 630mm per piece

Product

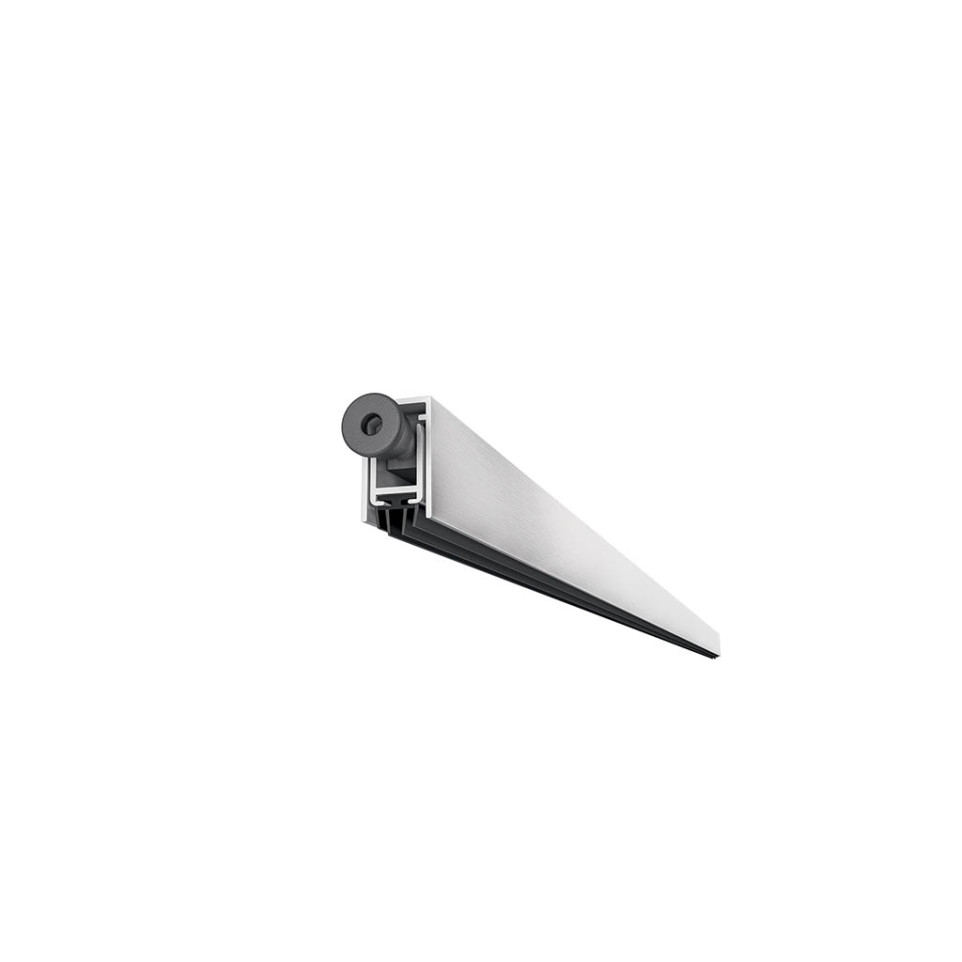

The CCE TREND 1220 automatic baseboard (630mm) is engineered to seal the gap between the bottom of a door and the floor, providing enhanced insulation and sound dampening for PVC, wood, aluminum, or armored doors.

Specifications

• Constructed with rigid glass fiber-reinforced nylon linkages for maximum efficiency and uniform floor pressure
• Adjustable, articulated metal push-button actuator with a nylon cap, adjusted using a 3mm hex key
• Fire-resistant co-extruded thermoplastic gasket (rigid + flexible composition)
• Can be shortened by up to 200 mm for precise fitting
• Installs with screws (not supplied); mechanism is removable for mounting

Usage

When the door closes, the self-directing push button presses against the frame or an external stop, lowering the internal sliding profile in a guillotine motion until the seal makes continuous contact with the floor. This blocks drafts, dust, and noises regardless of the floor type.

FAQ

1. What door types are compatible with this automatic baseboard? — It fits PVC, wood, aluminum, and armored doors.

2. How is the product installed? — Remove the internal mechanism, mount the baseboard with screws, and reinsert the mechanism.

3. Can the length be adjusted? — Yes, the unit can be shortened by up to 200 mm to fit different door widths.

4. How does the sealing mechanism operate? — The push-button actuator triggers the internal profile to drop and seal the gap when the door closes.

5. Is the gasket material fire-resistant? — Yes, the gasket is made from a co-extruded thermoplastic that is both rigid and flame-retardant.
