Product

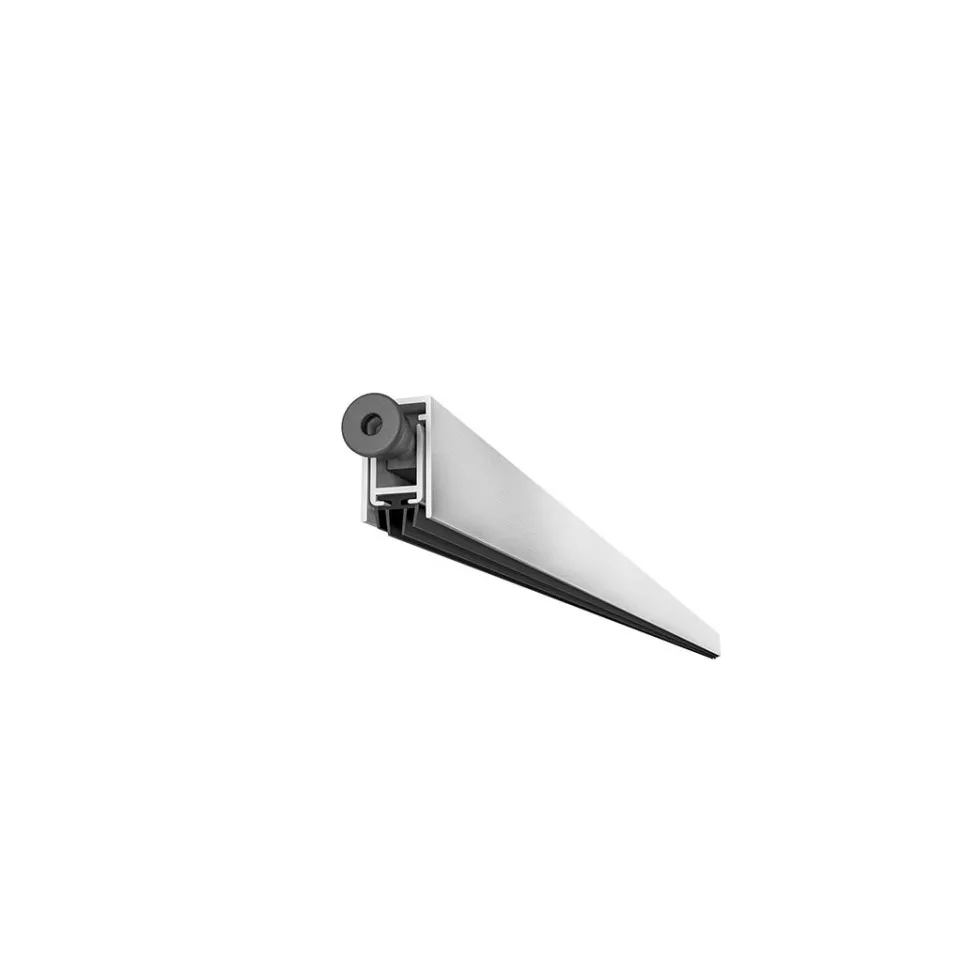

The CCE TREND 1220 automatic baseboard, 730mm, is designed for professional door sealing applications, ensuring effective closure for acoustic, thermal, and smoke protection in commercial and residential environments. Compatible with wood, PVC, aluminum, and armored doors.
Specifications
- Features reinforced nylon-fiberglass rigid rod mechanism for consistent pressure and durability
- Tri-extruded thermoplastic fire-retardant seal (rigid and flexible)
- Adjustable articulating metal plunger with nylon cap, set with a 3mm hex key
- Maximum trimming allowance: 200 mm
- Certifire approved, acoustic rating up to 39 dB Rw, tested to BS EN 1634-3:2004
- 14 mm maximum drop for sealing
Usage
Install the automatic baseboard by removing the internal mechanism, securing the unit with screws (not included), then reinstalling the mechanism. The self-directing push-button activates internal push-rods when compressed by the door or an external stop. Upon door closure, the internal seal is deployed to cover the floor gap, providing uniform contact across the door width.
FAQ
-
What types of doors is the CCE TREND 1220 suitable for?
The product is suitable for doors made of PVC, wood, aluminum, and steel, including armored doors.
-
How is the seal activated and adjusted?
The seal is deployed automatically by a metal push-button when the door closes. The nylon-capped button is adjustable with a 3mm hex key.
-
Can the product be shortened if needed?
Yes, it can be trimmed by up to 200 mm to fit the installation requirements.
-
What certifications or standards does this baseboard meet?
The CCE TREND 1220 is Certifire approved and tested to BS EN 1634-3:2004 for fire and smoke protection, with an acoustic insulation rating up to 39 dB.
-
Is the installation hardware included?
Screws are not supplied; internal components must be removed for screw installation, then replaced after mounting.
