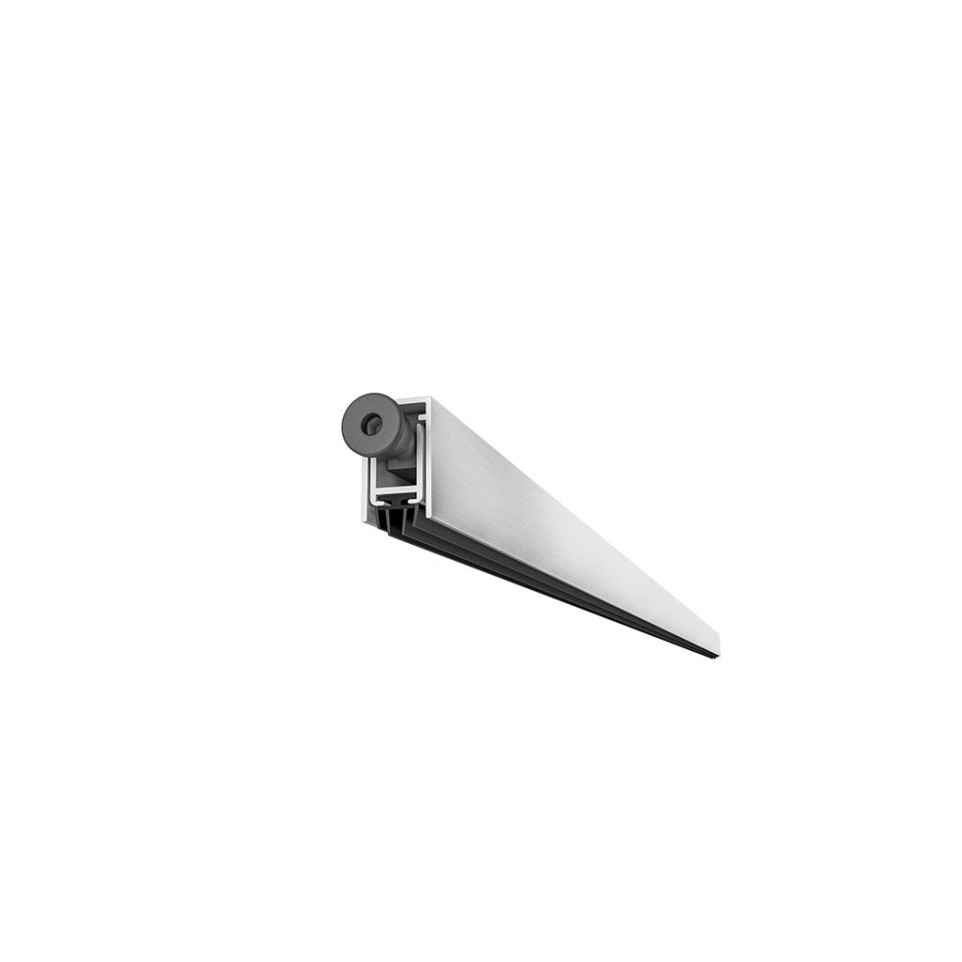

The CCE TREND 1220 automatic baseboard is an engineered drop-down seal for door bottoms, designed to create a tight seal when the door closes. It is ideal for use in homes, offices, and commercial spaces for improved sound and thermal insulation.
Specifications
- Features rigid nylon linkages reinforced with fiberglass for maximum efficiency and uniform pressure on all floor types
- Compatible with PVC, wood, aluminum, and security doors
- Fitted with a metal articulated self-aligning plunger and an adjustable nylon cap for precise fit, using a 3 mm hex key
- The thermoplastic co-extruded gasket combines rigidity and flexibility for durable, fire-resistant sealing
- Mounts via screws after extracting the internal mechanism, then reinserts fully; allows shortening by up to 200 mm for custom fit
Usage
The seal is activated by a push button that is compressed against the door frame or an external stop when the door closes. This operates the internal mechanism, causing the movable profile to drop and press the gasket securely against the floor, sealing the gap completely to prevent drafts, noise, and smoke from passing underneath the door.
FAQ
-
What door types is the CCE TREND 1220 compatible with?
It works with PVC, wood, aluminum, and armored doors.
-
How is the seal installed?
Remove the internal mechanism, fix the base with screws (not included), then reinsert the mechanism for full operation.
-
Can the length be adjusted?
Yes, the product can be shortened by up to 200 mm to fit different door widths.
-
What kind of sealing material is used?
It uses a co-extruded thermoplastic gasket that is both rigid and flexible, providing a secure and fire-resistant seal.
-
How does the push-button mechanism work?
When the door closes, the push button presses against the frame, triggering the internal nylon-fiber glass rods to lower the seal in a precise motion for optimal contact with the floor.
