Product

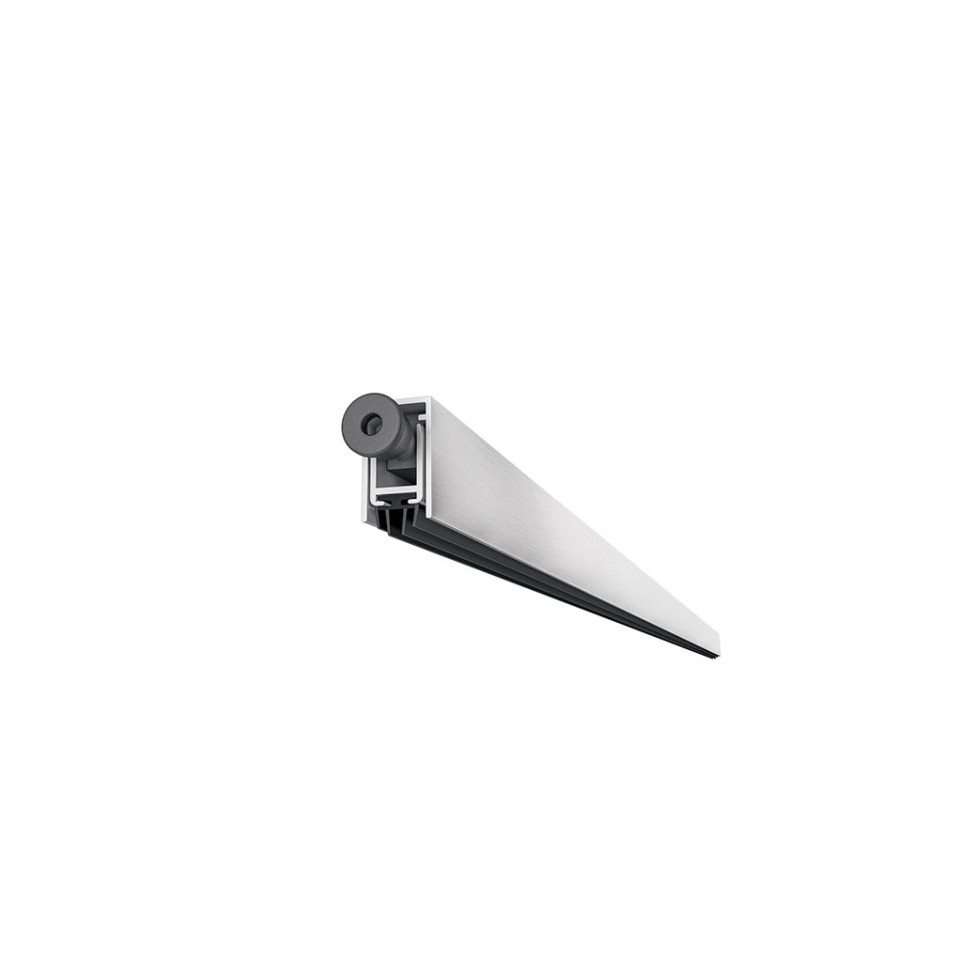

The CCE TREND 1220–1330mm automatic baseboard is designed for precise sealing at the bottom of doors, ensuring effective sound, thermal, and draft insulation. Suitable for PVC, wood, aluminum, and reinforced doors, it fits various installation environments.
Specifications
- Rigid nylon linkages reinforced with fiberglass deliver stable pressure and maximum efficiency across all floor types
- Self-adjusting articulated metal push button with an adjustable nylon cap, calibrated with a 3 mm hex key
- Co-extruded flame-retardant thermoplastic gasket (combining rigid and flexible materials)
- Internal mechanism is removable for mounting; fix with screws (not provided), then reinsert the mechanism
- Can be trimmed by up to 200 mm to fit custom door widths
- Designed for long-term durability, with robust materials selected for high-performance sealing
Usage
The automatic baseboard is mounted at the door’s lower edge. When the door is closed, its push button is compressed, triggering fiberglass-reinforced nylon linkages. This lowers the internal sealing profile evenly, efficiently closing the gap between the floor and the door. The thermoplastic gasket forms a continuous barrier that prevents drafts, noise, and dust from passing under the door.
FAQ
-
Which door types are compatible with the CCE TREND automatic baseboard?
Compatible with PVC, wood, aluminum, and reinforced (armored) doors.
-
How is the product installed?
Remove the internal mechanism, screw the base to the door (screws not included), then reinsert the mechanism for full functionality.
-
Can the length be adjusted to match different doors?
Yes, the baseboard can be trimmed by up to 200 mm to accommodate various door widths.
-
How does the self-adjusting button function?
The articulated metal push button automatically adapts to different frames or external stops and can be finetuned with a 3 mm hex key.
-
What type of seal provides the insulation?
The baseboard uses a co-extruded, flame-retardant thermoplastic gasket combining rigid and flexible properties for optimal floor adherence.
