Product

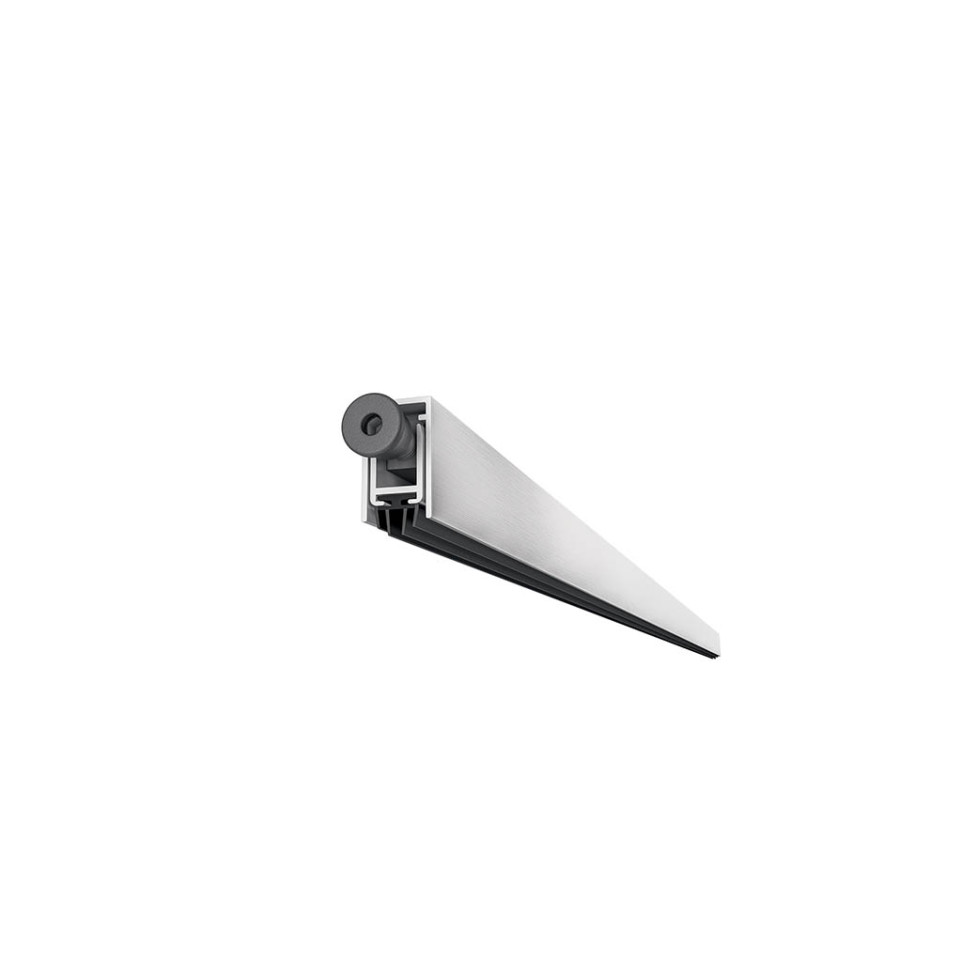

The CCE TREND 1220 830mm Automatic Baseboard is designed for optimal sealing of door bases on PVC, wood, aluminium, or security doors. It ensures a highly effective and uniform floor contact, providing reliable insulation and draft protection in commercial and domestic settings.
Specifications
- Constructed with rigid nylon linkages reinforced with glass fiber, delivering maximum efficiency and even surface pressure
- Features a self-directing push button mechanism in metal with an adjustable nylon cap (adjustable via 3 mm hex key)
- Equipped with a co-extruded, flame-retardant thermoplastic seal combining rigid and flexible sections
- The internal mechanism must be removed before screw installation (screws not included); reinstall after fixing
- Compatible with doors up to 830mm wide and allows shortening by up to 200mm
Usage
When the door is closed, the push button compresses against the door frame or external stop, activating the internal nylon linkages. This lowers the mobile profile in a guillotine-like motion, first on the push button side then on the opposite, ensuring the thermal seal contacts the floor along the full door width for effective sealing.
FAQ
-
Which door types are compatible with this baseboard?
The product fits PVC, wood, aluminium, and reinforced security doors.
-
How is the seal adjusted for different thresholds?
The nylon-capped metal push button is adjustable with a 3 mm hex key for precise fit.
-
Is the installation process complex?
To install, remove the internal mechanism, fix the baseboard using screws (not included), and then replace the mechanism.
-
Can the product be cut to fit narrower doors?
Yes, it can be shortened by up to 200 mm to fit custom door widths.
-
What type of seal material is used?
It uses a co-extruded thermoplastic that is both rigid and flexible, as well as flame-retardant.
