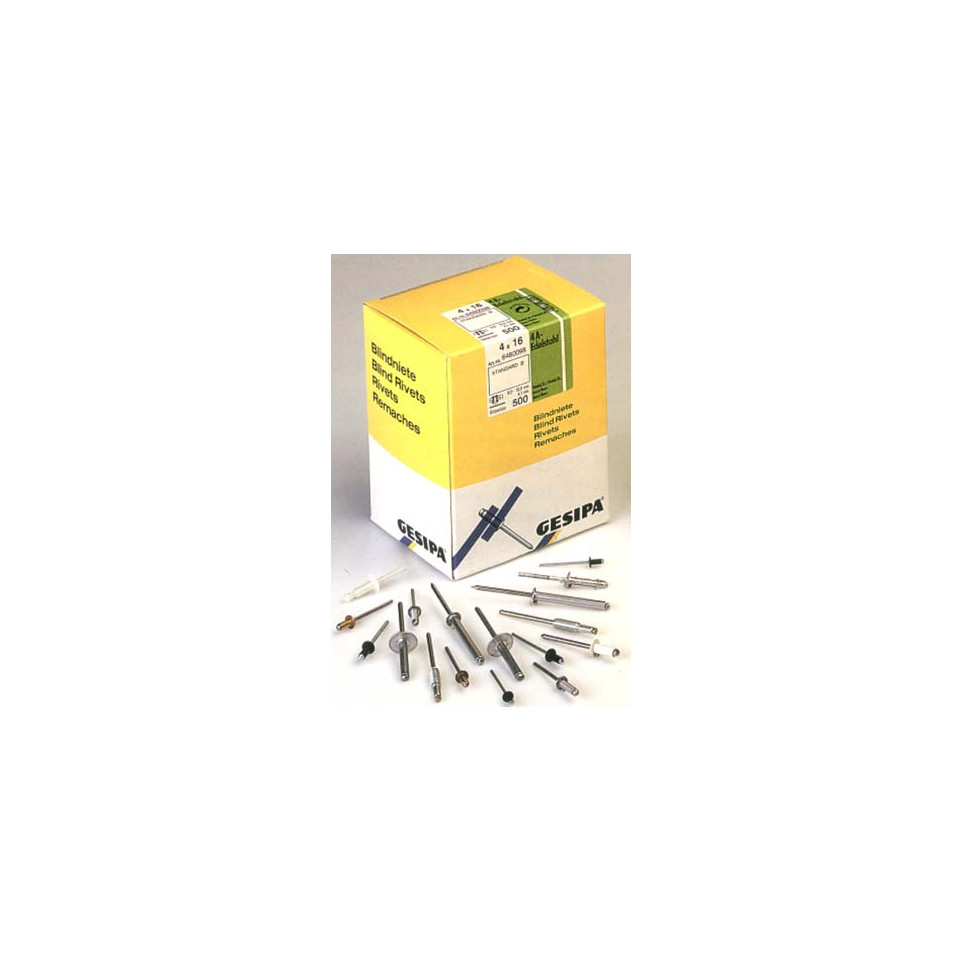

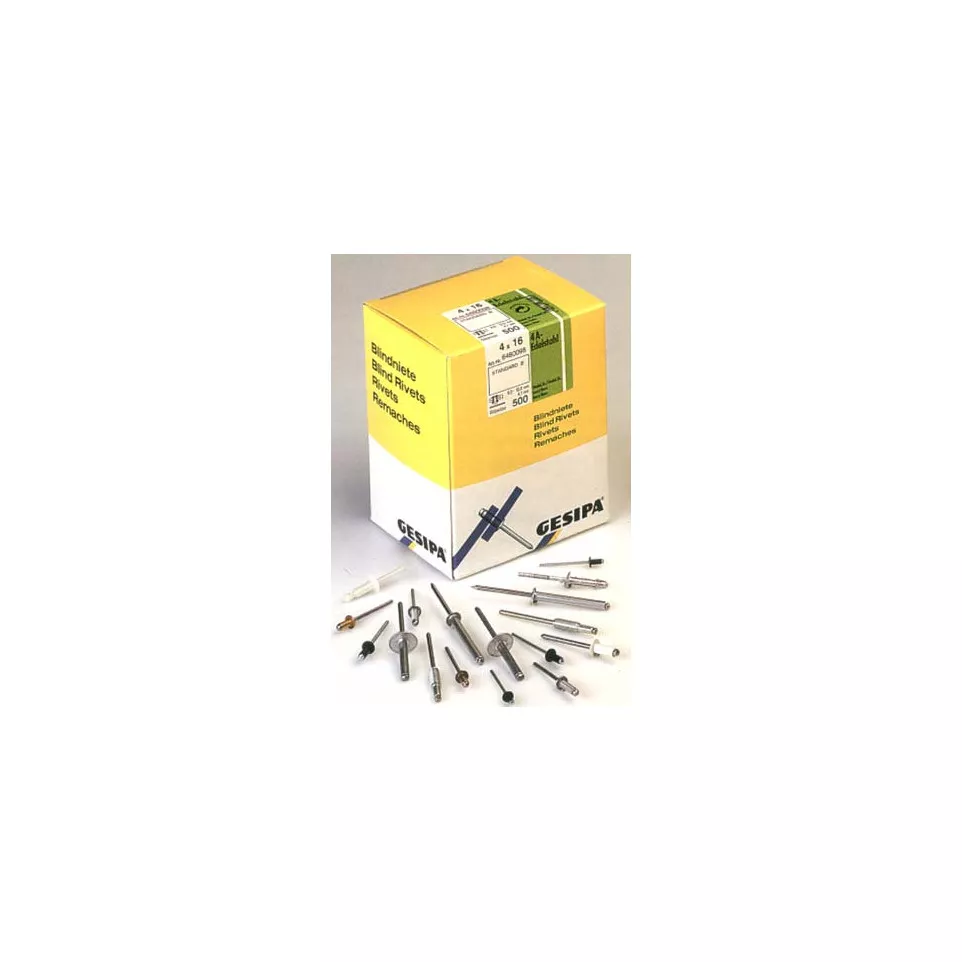

The GESIPA K14 standard rivets, size Ø5x8mm, feature a large flange for enhanced load distribution. Designed for secure and durable fastening of aluminium and steel components, these rivets are sold in boxes of 250 pieces and are suitable for use with compatible rivet pliers.
Insert the rivet into a pre-drilled hole (Ø5 mm rivet: 5.1 mm drilling recommended). Use a compatible rivet tool to compress and secure the materials together. The large head is ideal for applications needing a broad load-bearing area, reducing material stress.
What materials are these rivets made of?
The body is aluminium, and the mandrel is made of steel, providing a combination of strength and corrosion resistance.
What is the recommended hole diameter for installation?
For Ø5 mm rivets, a 5.1 mm diameter drilling is recommended.
Are these rivets suitable for use with extensions?
Yes, the mandrels are long enough for installation using nozzle extensions up to 10 mm.
What is the head diameter?
The large K14 head has a maximum diameter of 14 mm, ensuring a broad bearing surface.
What standards do these rivets meet?
Manufactured in compliance with DIN EN ISO standards for reliable performance in demanding applications.
mvm-dt-2025-07-07
| Brand | Gesipa |
|---|---|
| Ø x L (mm) | 5 x 8 |
| Head | large |
| Rivetable thickness (mm) | 2,5 - 4,5 |
