Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Product

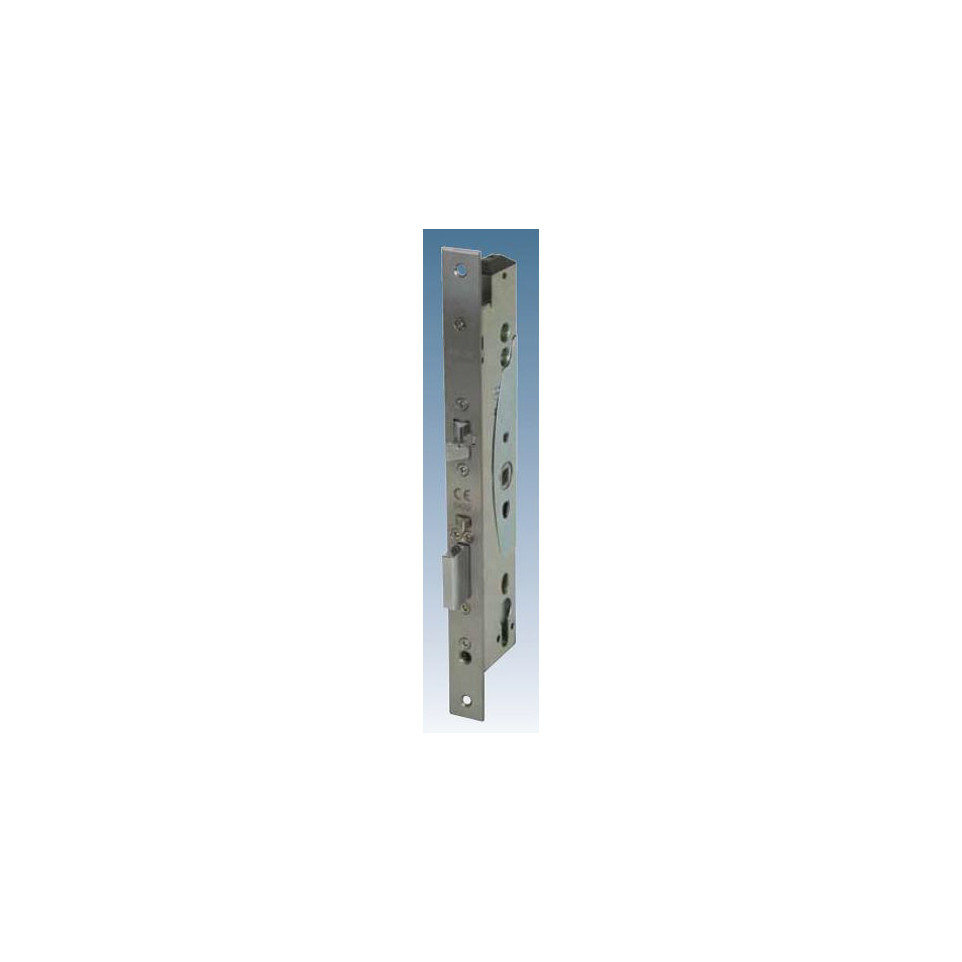

The Abloy EL461 Modular Solenoid Lock is an electric security lock for high-security interior and exterior doors, designed for access control on both sides. Suitable for aluminum, wood, or metal doors, it enables precise entry management in commercial and institutional environments.
Specifications

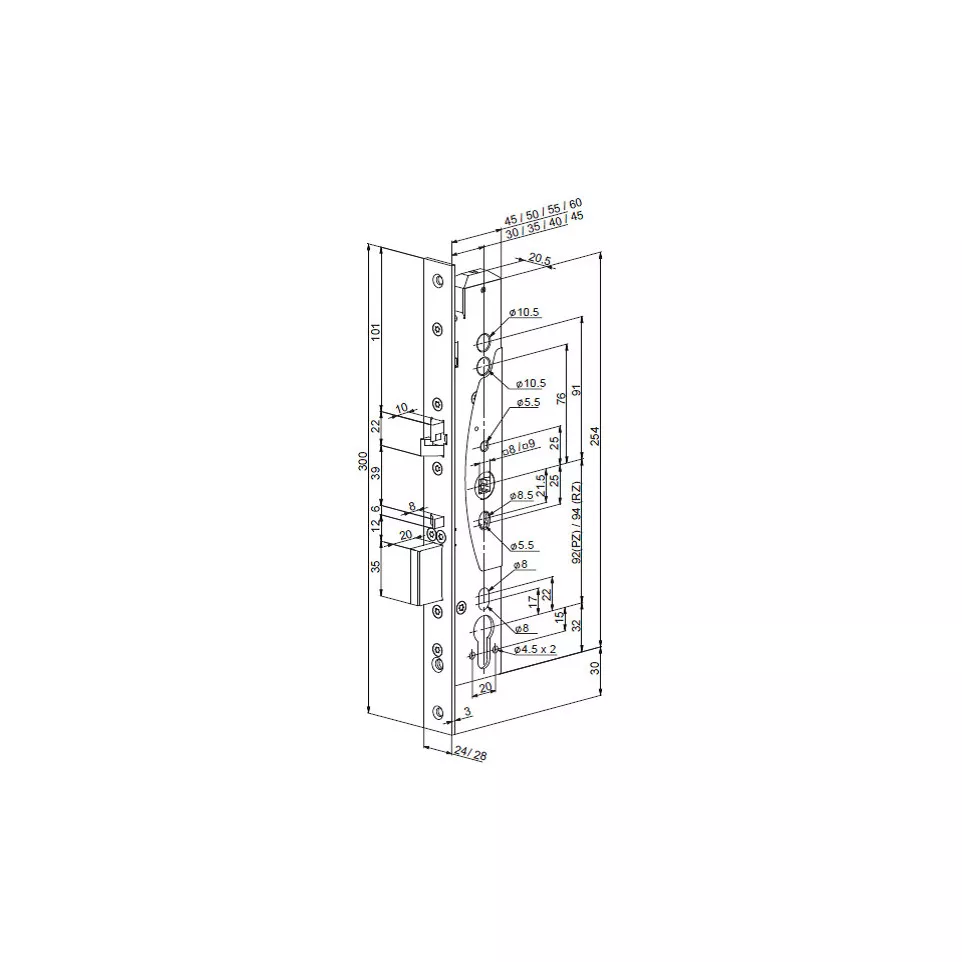

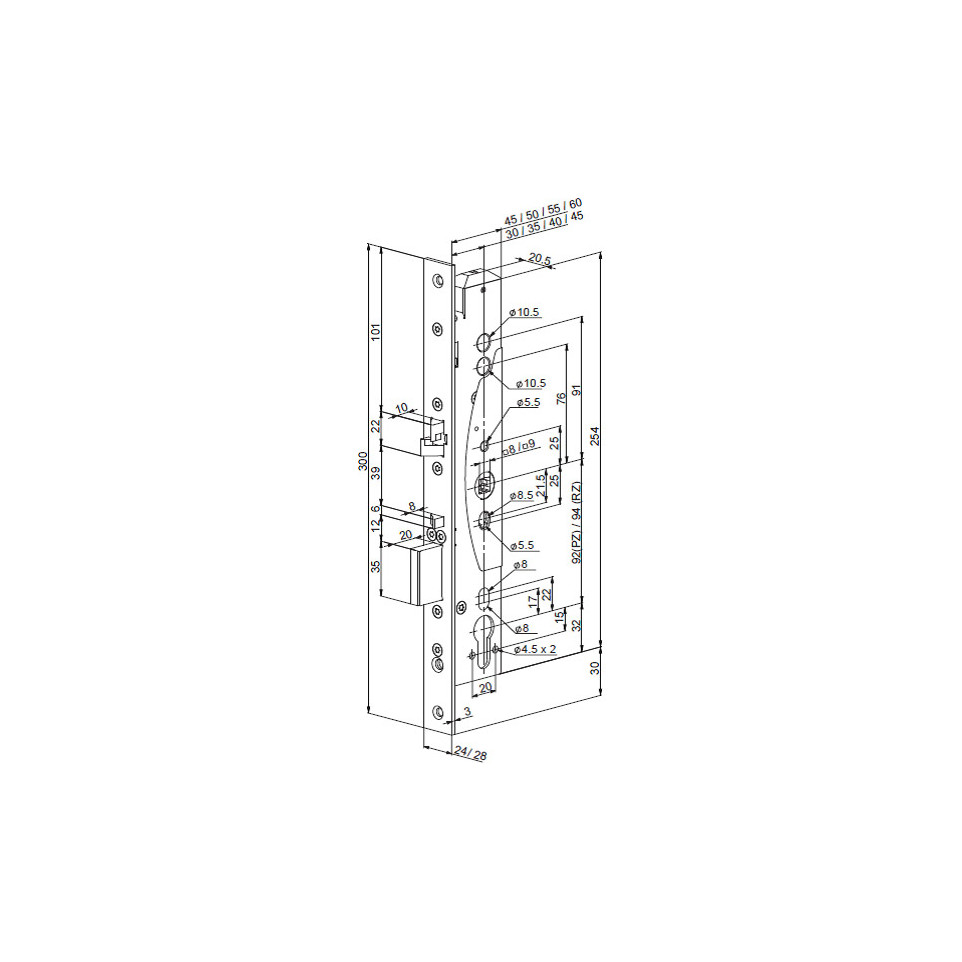

- Modular mortise lock with a zinc-plated steel case (2 mm), reinforced satin chrome steel forend (24 x 300 mm), and polished nickel-plated steel bolts
- Double-action, antifriction latchbolt, 20 mm deadbolt projection, 10 mm latchbolt projection
- Certified to EN 12209 (security class 6), SKG** (suitable for wood/metal, EL561 profile), CE, and Benor/ATG RF 30'/60' fire resistance
- Dual-side electrical handle control; mechanical override always possible via euro-profile cylinder
- Fail Secure or Fail Safe operation selectable on lock
- Monitoring outputs: deadbolt status, latchbolt use, cylinder use, door state (max 0.8A at 30V AC/DC)
- 12-24 V DC power supply (-10%, +15%), current draw: 550 mA at 12V, 270 mA at 24V
- 35 mm backset (30/40/45 mm options), 92 mm centers, reversible handing (left/right), 9 mm spindle with 8 mm adapter
- Operating temperature: -20°C to +60°C
- Automatic deadbolt locking on closing, even during power failure
- Cylinder function always unlocks mechanically
- Not suitable for emergency exits; no free exit function
Usage
The EL461 is installed on doors requiring controlled electric access on both sides. It operates via connection to access control systems such as card readers or keypads. Power pulse or loss (fail secure/fail safe) activates handles for entry or exit. The mechanical key cylinder always provides manual override. Automatic locking and multiple monitoring signals support integration in secure, monitored facilities.
FAQ
-
Can this lock be used on both left and right-handed doors?
Yes, the handing can be reversed easily via an internal adjustment screw. -
What access control systems are compatible with the EL461?
The lock works with badge readers, keypads, switches, timers—any system delivering a 12–24 V DC impulse or power drop. -
Is the lock certified for fire doors?
Yes, it is approved for Benor/ATG RF 30'/60' fire resistance and CE certified. -
Does the lock allow mechanical key override?
Mechanical override is always possible from both sides using a euro-profile cylinder, regardless of electrical status. -
Is this lock suitable for emergency exit doors?
No, the EL461 is not equipped with a free exit (panic) function and should not be used on emergency escape routes.
