Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Product

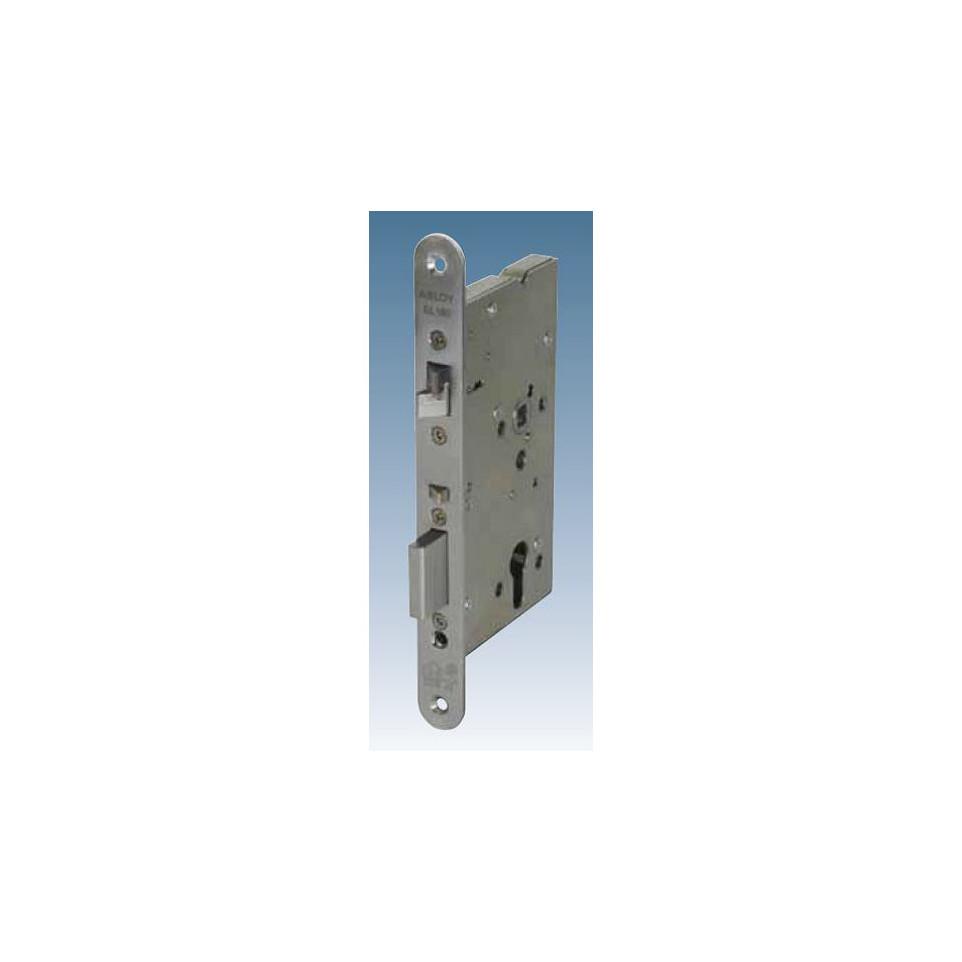

The Abloy EL561 modular solenoid lock offers electrically controlled access on both sides of the door, suitable for wood and metal doors in high-security commercial and institutional environments. Designed for integration with access control systems, it supports both interior and exterior applications.
Specifications
- Design & Materials: Mortise-type lock with closed case in zinc-plated steel (~2 mm thick), reinforced chromed satin faceplate (20 or 24 x 235 mm), and chromed steel strike plate. Features double-action and antifriction latch, nickel-plated steel bolts, and a hardened steel follower.

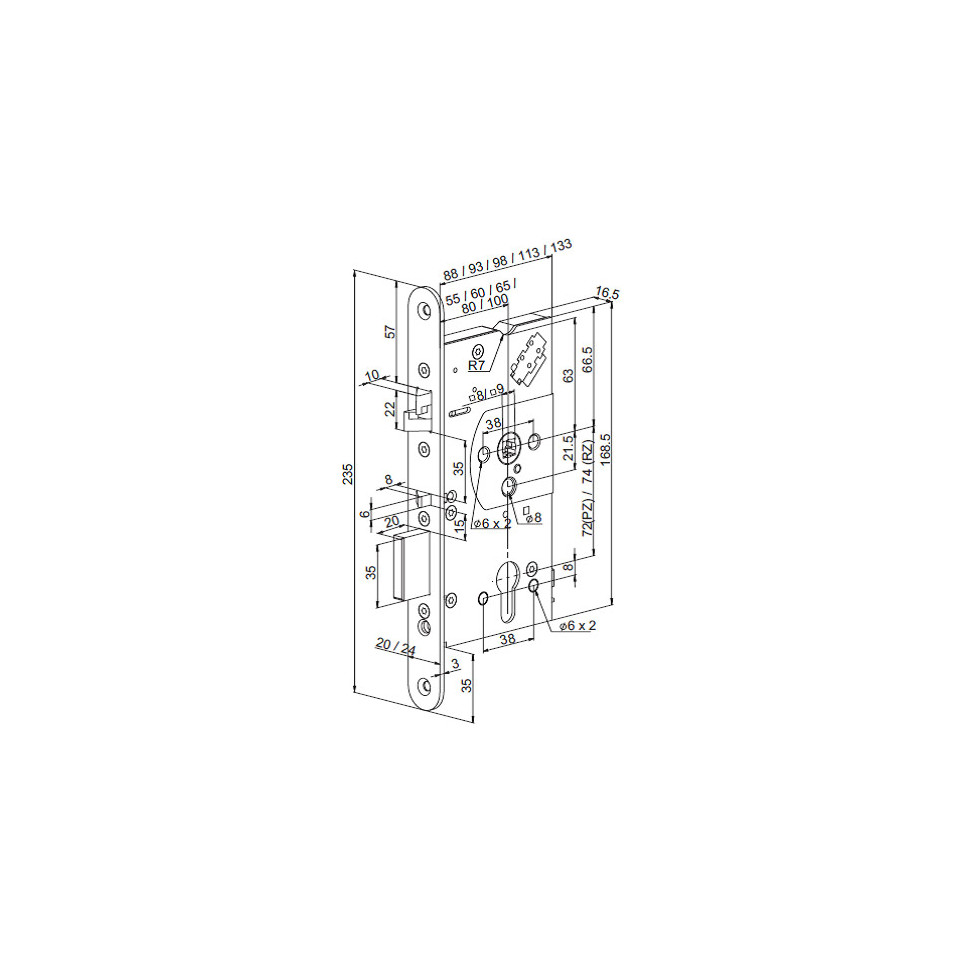

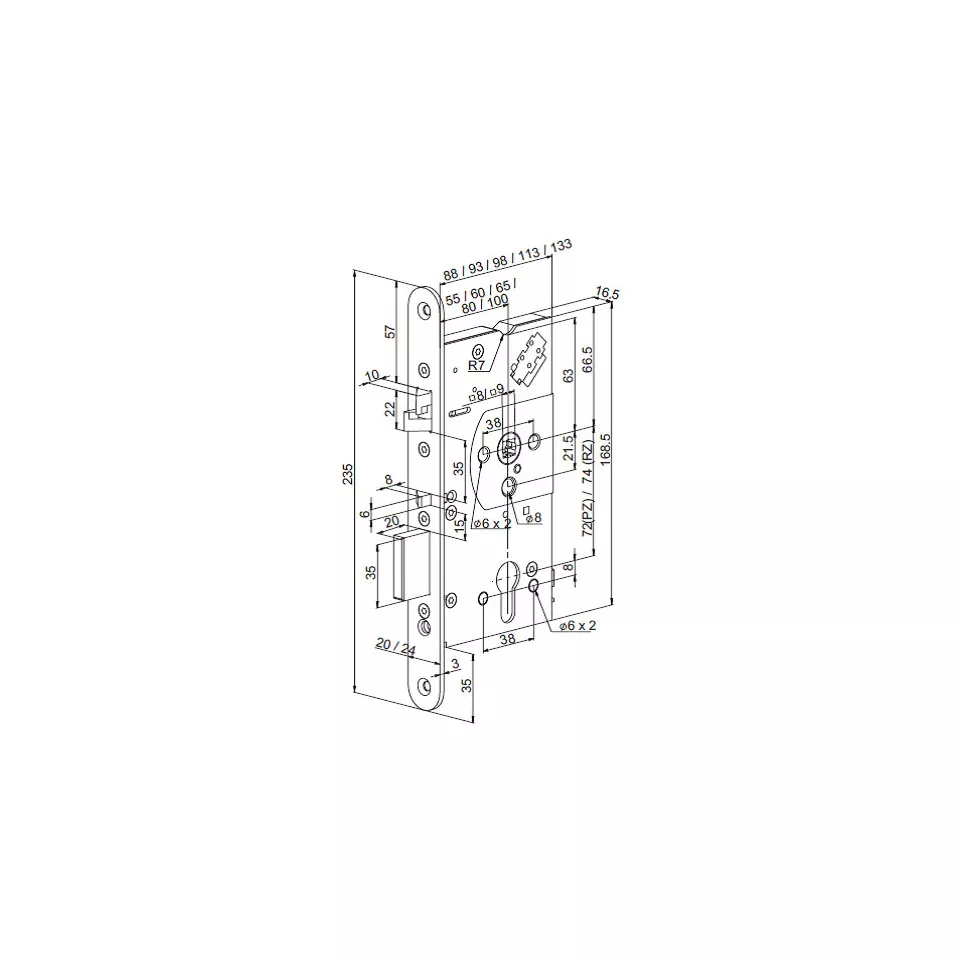

- Compatibility & Dimensions: For European profile cylinder, 55 mm backset (optionally 60/65/80/100 mm), 72 mm centre distance, 9 mm spindle (with 8 mm adapter), automatic deadbolt projection (20 mm deadbolt, 10 mm latch).
- Security & Durability: EN 12209 (security class 6) and SKG** certified, fire-rated for BENOR ATG RF 30’/60’, meets CE requirements, lateral resistance up to 10KN, operational temperature range -20°C to +60°C.
- Technology: Electrically controlled handles (fail secure/fail safe selectable), works with 12–24 VDC (-10%/+15%), current draw 550 mA at 12V / 270 mA at 24V.
- Features: 4 monitoring outputs (deadbolt status, handle use, cylinder use, door status), automatic deadbolt locking on closure, reversible handing (left/right) by Allen screw, not approved for escape routes.
Usage
Install the EL561 in wood or metal doors requiring controlled access on both sides. Connect directly to a 12–24 VDC supply and configure for fail safe or fail secure operation. Integrate with badge readers, keypads, or timers as desired. Electrical signals activate/deactivate the handles, allowing entry or exit as set. Manual override via mechanical cylinder always remains possible.
FAQ
-
Can this lock be used on emergency or panic exits?
No, the EL561 does not offer an always-free exit function and is not suitable for escape routes or panic exits. -
Is the handing of the lock reversible?
Yes, the EL561 can be configured for left or right-handed doors using an Allen screw. -
How is access controlled electrically and mechanically?
Both inside and outside handles are electrically controlled via your chosen access system, while a mechanical key override is always available. -
What access control systems are compatible?
The EL561 supports direct connection to most impulse generators, including card readers, keypads, key switches, push buttons, and timers. -
What certifications does this lock have?
It complies with EN 12209 security class 6, SKG** (for wood/metal doors), CE marking, and fire resistance certification BENOR ATG RF 30’/60’.
