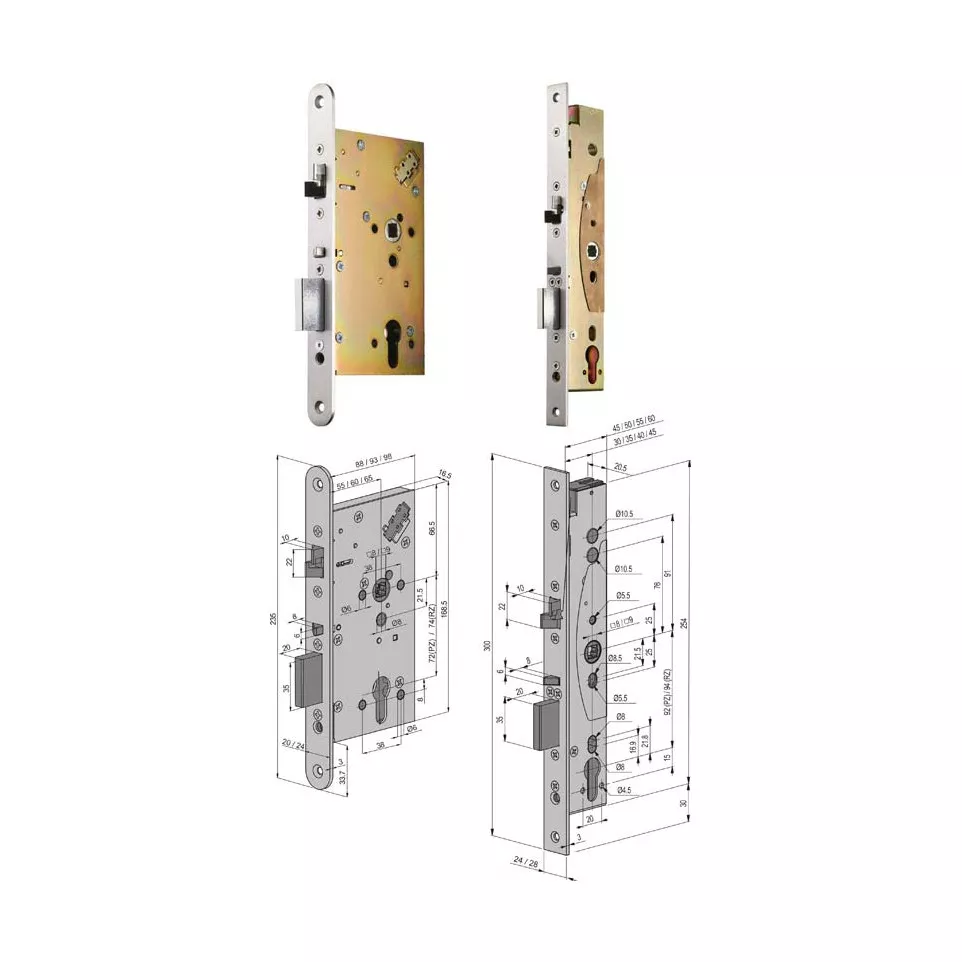

Abloy EL560 Mortice Solenoid Lockcase 65/72 12-24 V DC One-Sided Control per piece

Product

The Abloy EL560 65/72 Solenoid Lock is a robust electromechanical lock designed for integration into interior steel or wooden doors, including those requiring fire resistance. It offers reliable access control for high-security environments.

Specifications

• Electromechanical solenoid technology with automatic deadbolt locking
• Durable construction, suitable for use on fire doors and with standard or hydraulic door closers
• Dual voltage support: 12–24 VDC, with max current consumption of 350 mA
• Monitoring outputs: bolt status, handle use, and cylinder operation
• Reversible (left/right), with reinforced, saw-resistant deadbolt
• Accepts spindle sizes: 9 mm (with 8 mm adapter)
• Cylinder entry options: 30–45 mm (backset 92 mm), 55–100 mm (backset 72 mm)
• Operating temperature range: -20°C to +60°C
• Certified to EN 14846:2008 and EN 179:2008 standards

Usage

Install the EL560 in the door's mortise; automatic locking occurs only when the door is fully closed. Unlocking and handle engagement are controlled electrically by access systems or manually via cylinder. The lock requires handles on both sides and supports modular panic-bar integration.

FAQ

1. What types of doors is the EL560 compatible with?

   • The lock is suitable for interior steel and wooden doors, including fire-resistant and corridor doors.

2. Can the lock be used in access control systems?

   • Yes, electrical impulses from access control devices engage the lock, allowing handle operation for access.

3. Is the EL560 suitable for emergency exits?

   • The lock supports panic hardware and can be set up for emergency exit functions.

4. What happens to the lock during a power failure?

   • In fail-safe configuration, the lock unlocks during power loss, allowing free access from both sides.

5. Can the lock be manually overridden?

   • Yes, mechanical override is always possible by using the cylinder.
