Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

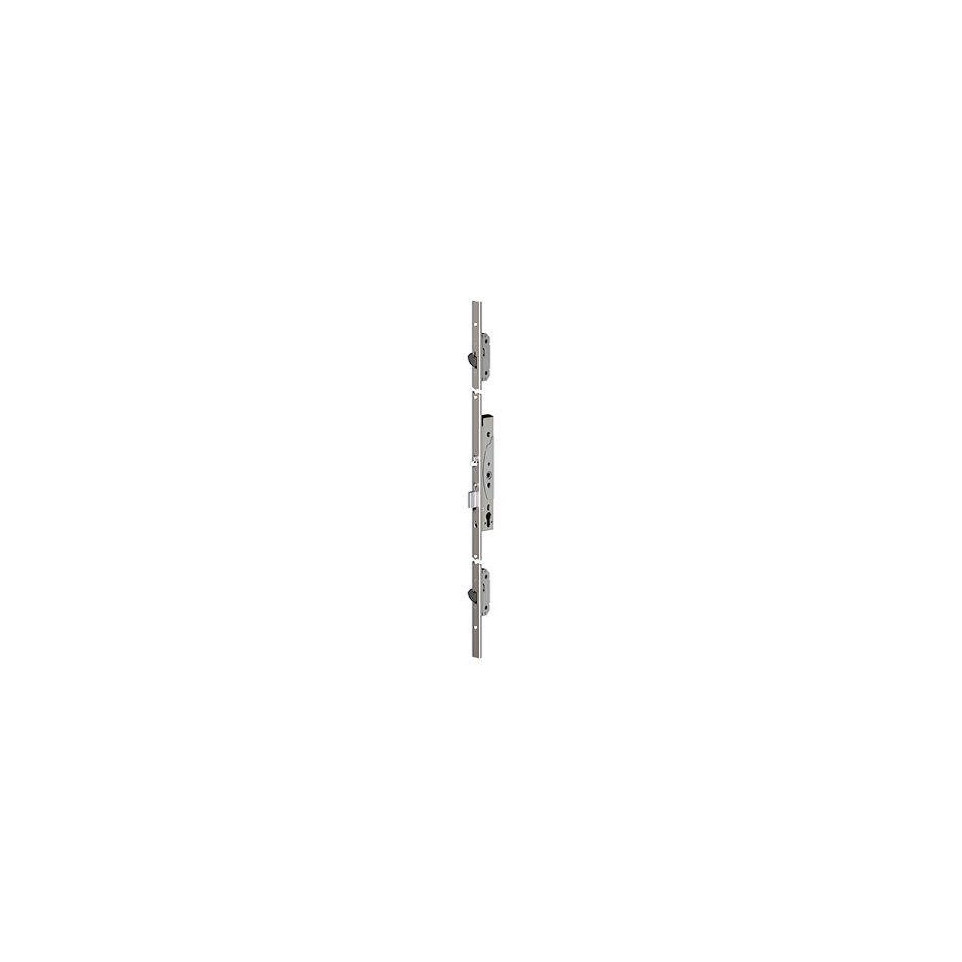

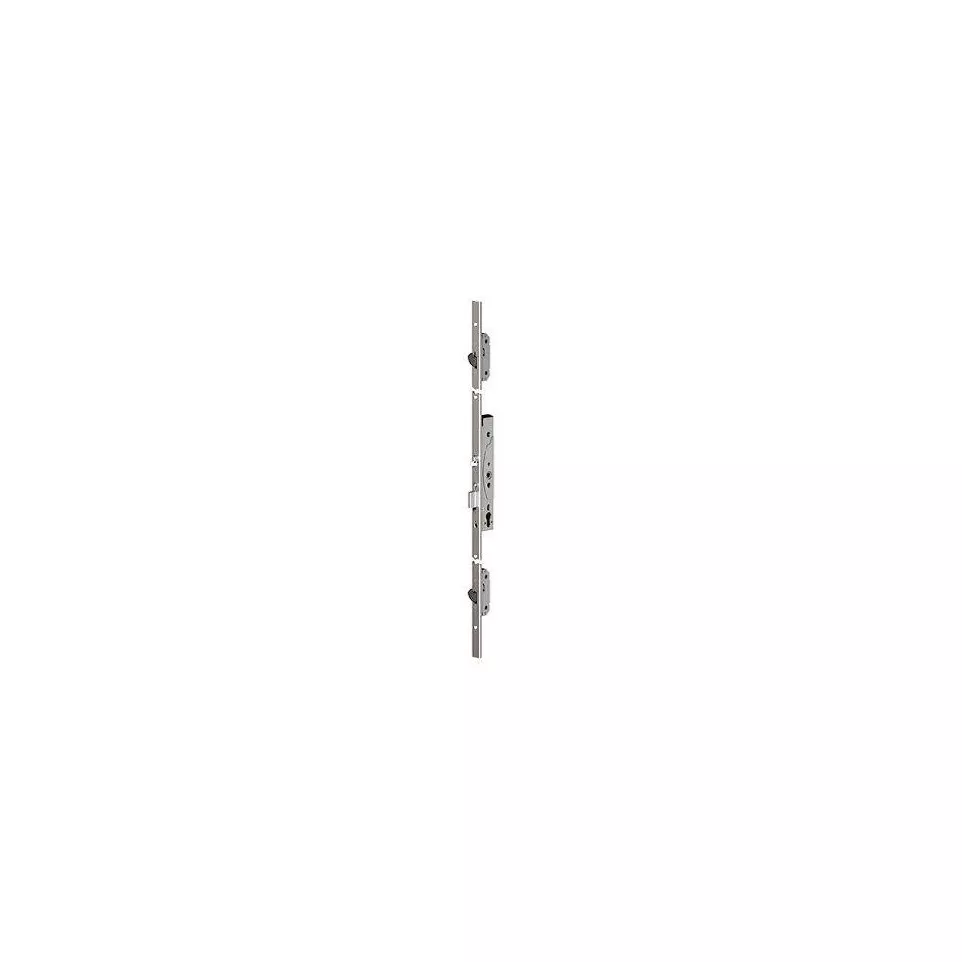

The Abloy EL467 solenoid multipoint lock is designed for securing profile doors in commercial or institutional settings where controlled access and high security are required on both sides of the door.
Advantages
- Electrically controls both inside and outside handles for two-sided access management
- Automatic mechanical deadlocking secures the door at four points upon closure
- Configurable fail-locked or fail-unlocked operation enhances flexibility for varied security needs
- Burglar-resistant with a robust 20 mm deadbolt and auxiliary hook bolts for increased protection
- Integrated monitoring contacts enable connection to access control or building management systems
Specifications

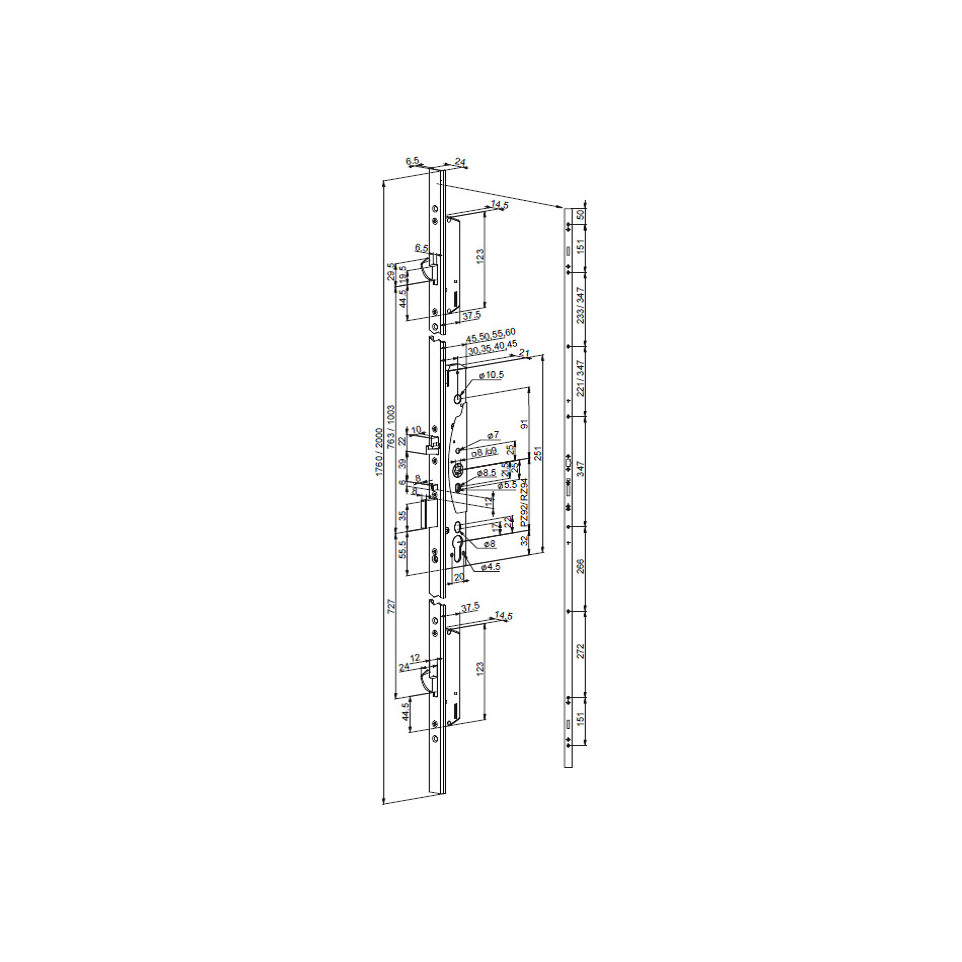

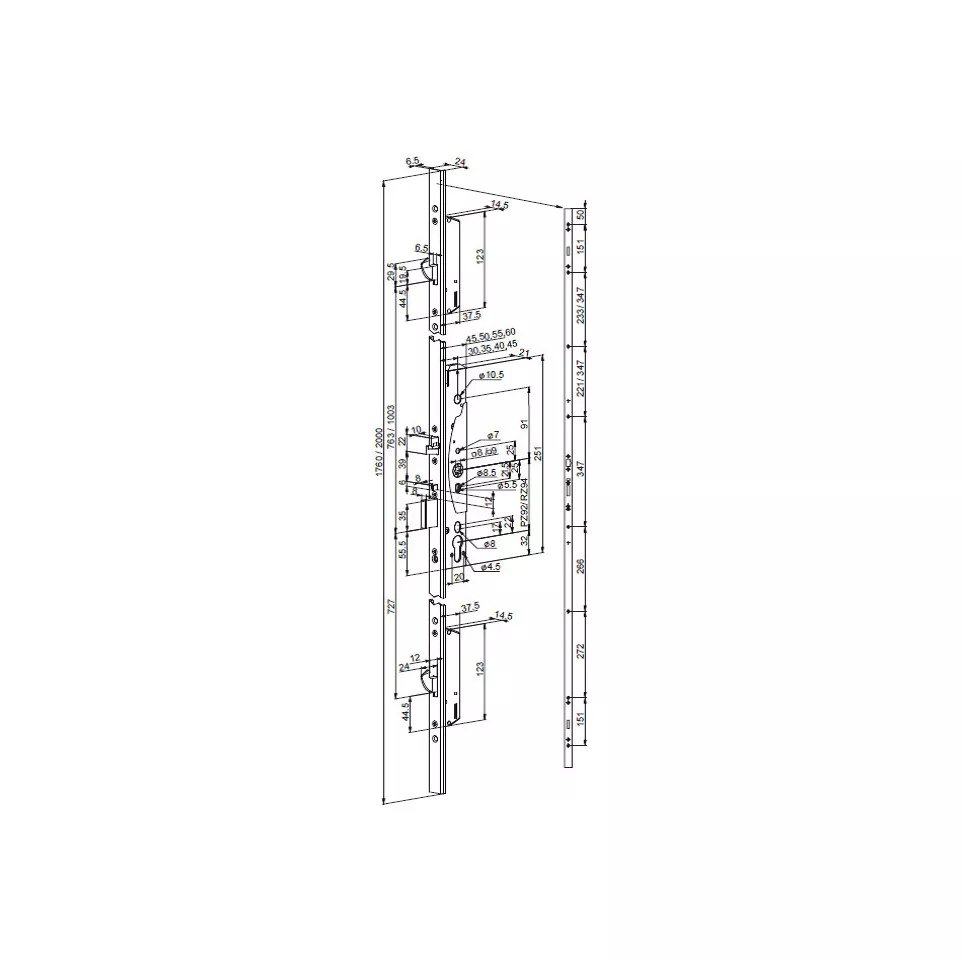

- Design & Materials: Europrofile DIN standard lock case, suitable for narrow profile doors; U-shape (metal) or flat (wood) forend options available; compatible with DIN cylinders.
- Sustainability & Certifications: Suitable for fire doors; compliant with EN1125:2008 and EN179:2008 standards; non-handed design simplifies installation.
- Performance Metrics: Operates on 12–24 VDC input, rated current consumption idle: max. 240 mA at 12V DC, max.130 mA at 24V DC; Deadbolt throw: 20 mm, Hook bolt throw: up to 24 mm.
- Differentiating Features: Mechanical override via key cylinder always possible from both sides; supports multiple monitoring outputs such as bolt state, handle position, sabotage loop, and key usage.
How it works
The EL467 uses electrically controlled solenoids to engage or disengage handles on both sides. When closed, it automatically projects deadbolt and hook bolts. Access can be enabled by power through an access control system or overridden mechanically by key if needed.
