Usage

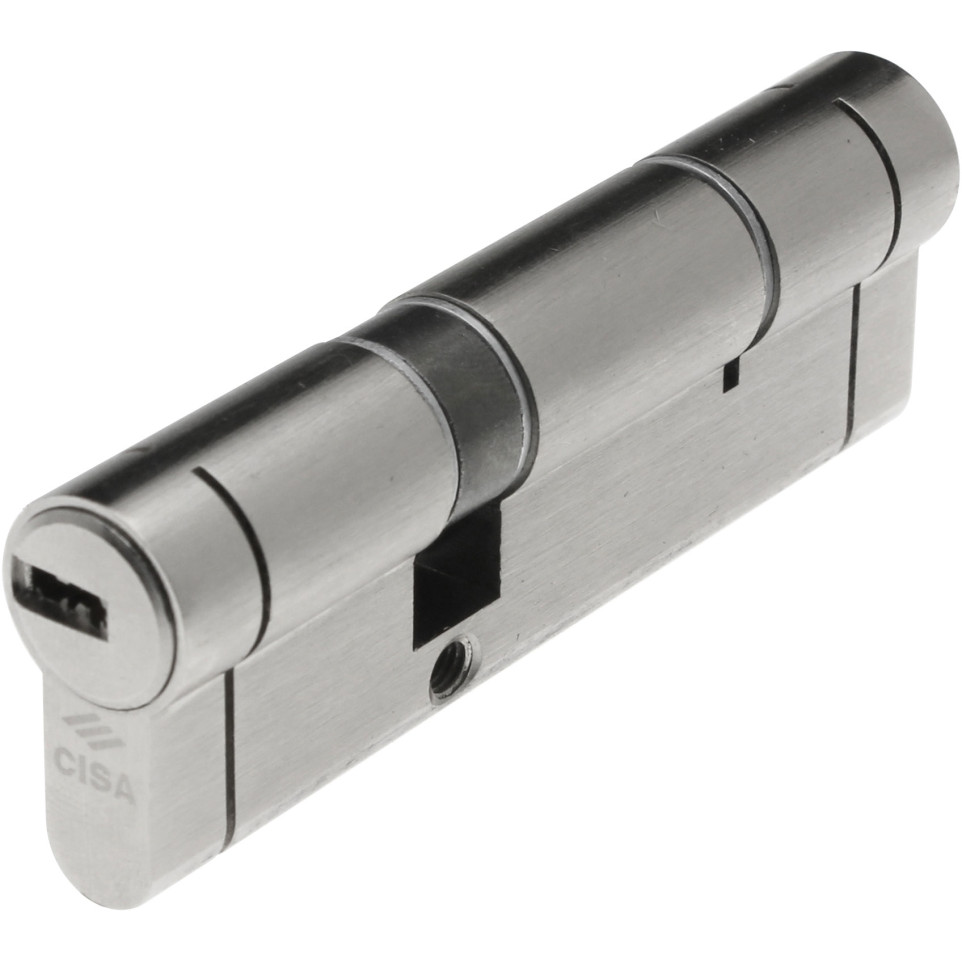

The Cylindre DUO double de très haute sécurité Cisa TEKNO 30/30 is designed to secure entrance doors in residential, commercial, or industrial settings where very high protection against unauthorized access and forced entry is required.
Advantages
- Advanced anti-snap feature ensures continued operation even after an attempted break-in by controlled break-off of the cylinder body.
- Protection against bumping attacks with a patented Bump Key Power (BKP) system for enhanced resistance.
- Anti-picking defense through a complex pin system including active and passive pins, plus steel control pins.
- Anti-drill shielding utilizing hardened steel elements that resist drilling attempts on both sides of the stator.
- Key duplication strictly controlled via security card and authorized CISA centers only.
Specifications
- The cylinder features a brass body with variable-shape hardened steel drivers and phosphor bronze springs. It incorporates a DIN-standard cam made of steel for robust performance.
- Cylinder certified to EN1303:2015 standards for durability, meeting relevant European high-security requirements.
- Total length: 59 mm (30/30 configuration). Weight: approximately 0.244 kg. The system comprises at least twelve pins (6 active, 4 passive, and two control), offering high key variation.
- Differentiating features include a clutch system allowing access if one key remains inserted on the opposite side; pre-set compatibility for thumbturn installation; patented keys with authorized duplication; compatible with master-keyed systems.
How it works
This double cylinder operates when the correct patented key aligns all internal pins to allow rotation of the core. Its integrated safety systems provide resistance against common intrusion techniques while permitting smooth, bi-directional door locking or unlocking.
