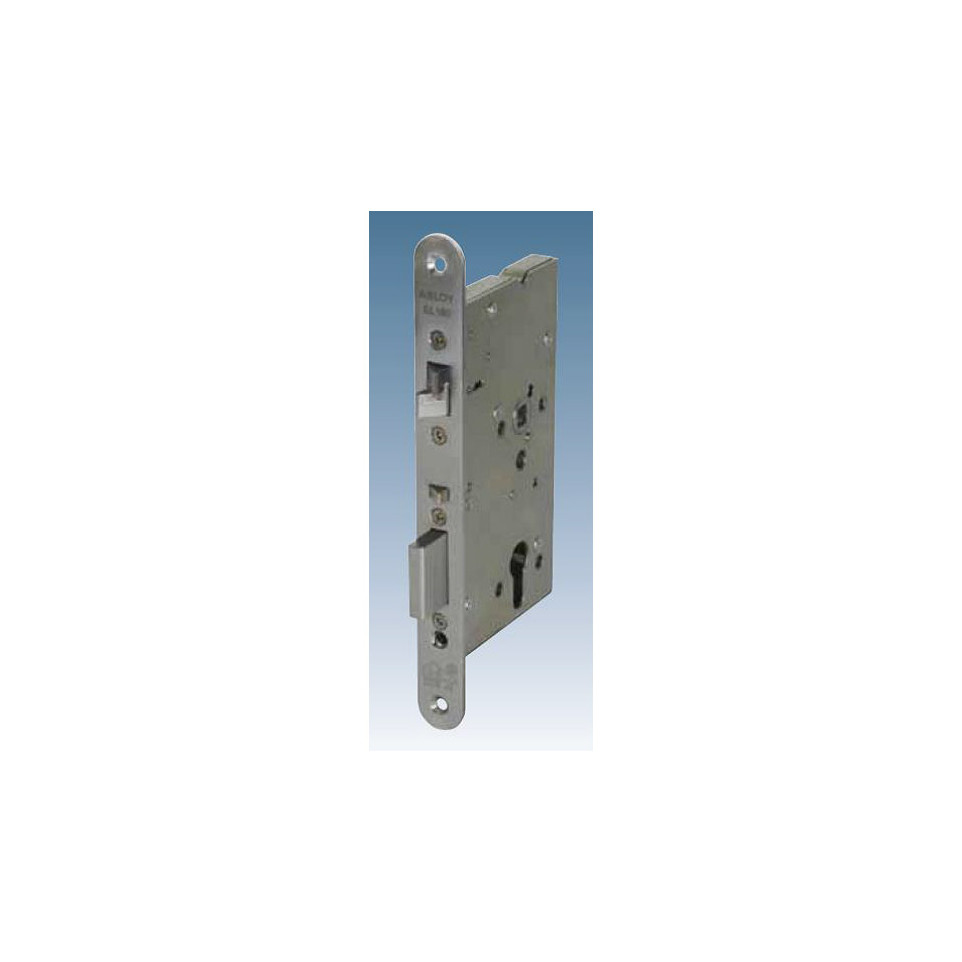

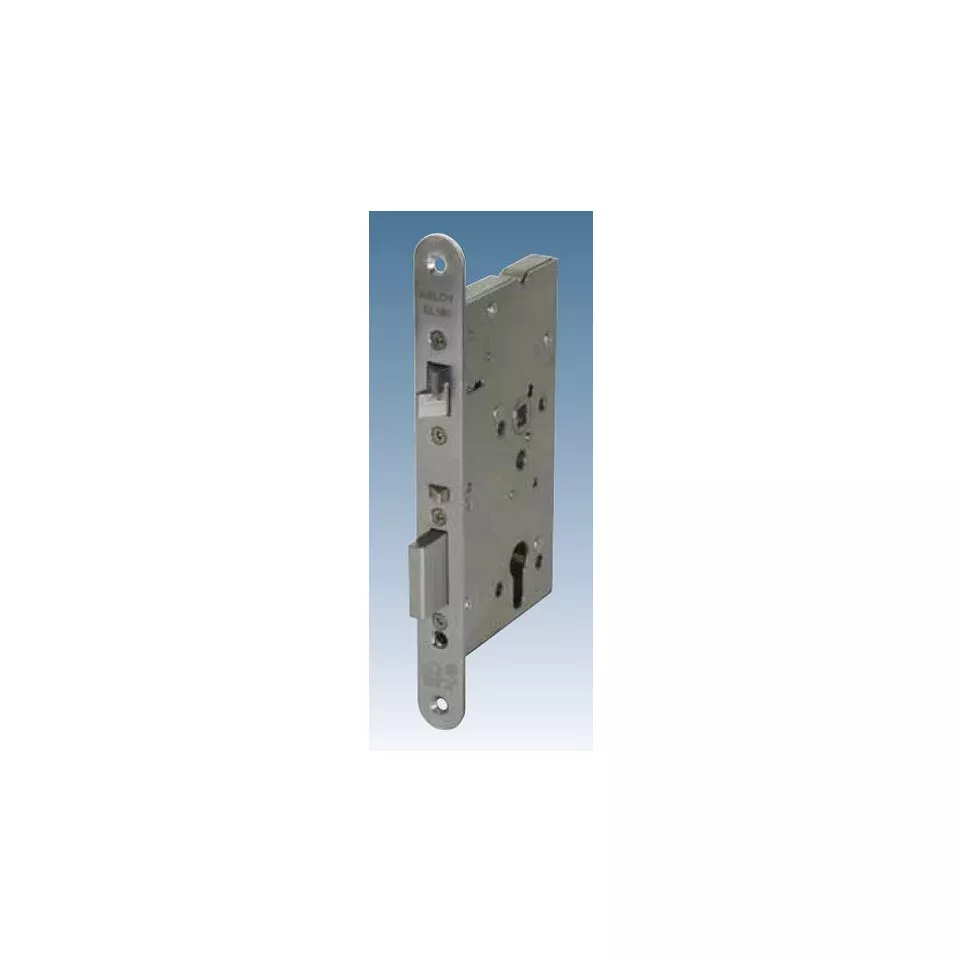

The Abloy EL561 is a modular solenoid lock designed for high-security wooden or metal doors, offering electrically controlled access from both sides. Suitable for external and internal applications, it integrates with multiple control systems and access points.
Specifications
- Electrically controlled handles on both sides, supporting direct integration with badge readers, keypads, timers, and more

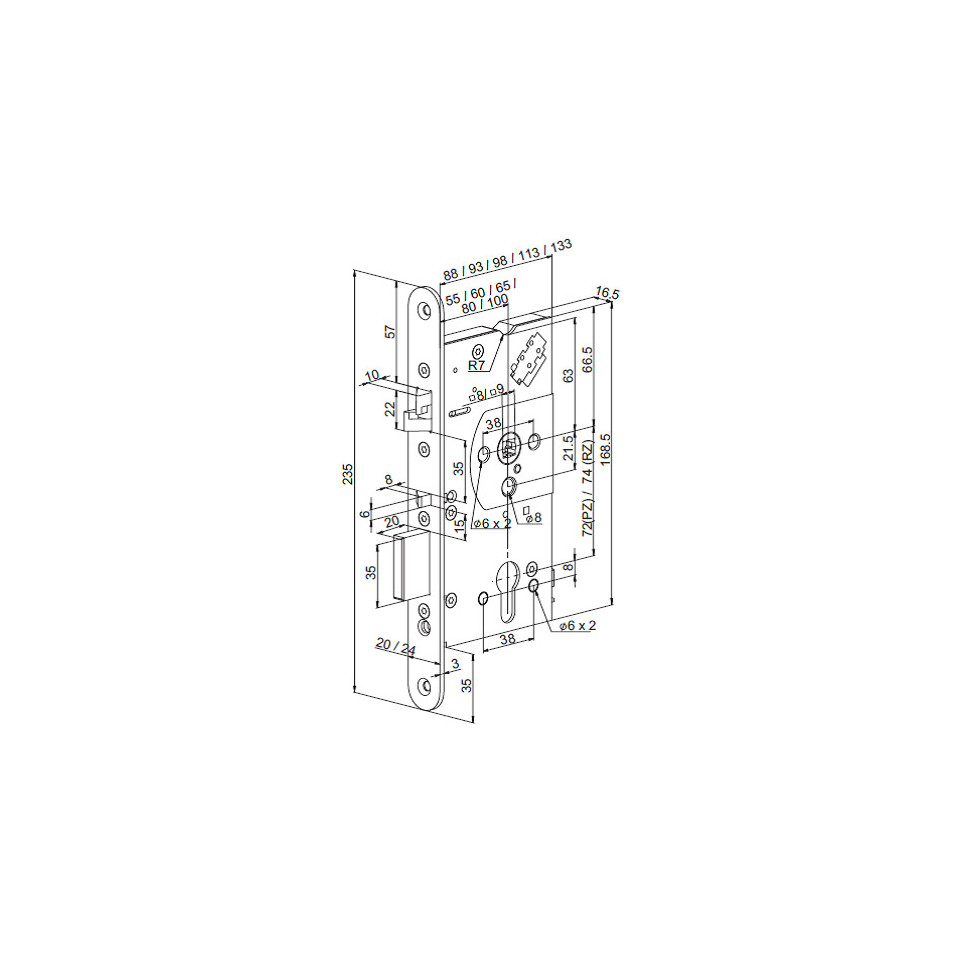

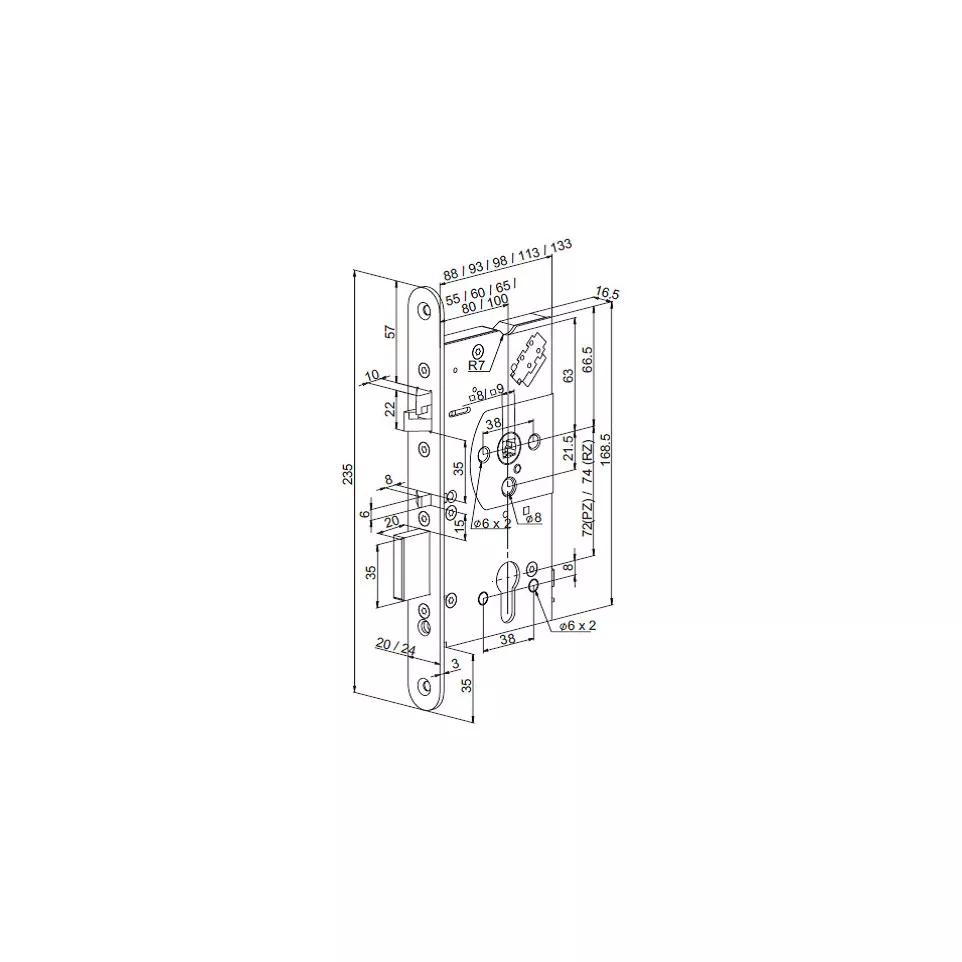

- Mortise lock body with a 2 mm zinc-coated steel case; satin chrome-plated reinforced steel forend (20 or 24 x 235 mm), matching chromed steel strike (3 mm)
- Nickel-plated steel bolts: deadbolt projection 20 mm, anti-friction double action latch with 10 mm projection
- Reversible handing for left or right doors, easy configuration (Allen screw)
- Designed for Euro-profile cylinders (both double and half-cylinder, max 45° cam angle); spindle: 9 mm (adaptor for 8 mm)
- Backset options from 55 to 100 mm; centre distance 72 mm
- Power supply: 12–24 VDC (–10%, +15%); current draw: 550 mA (12 V), 270 mA (24 V)
- Operation temperature range: –20°C to +60°C
- Mechanical override always possible by key; no panic function (not for emergency exits)
- Built-in auto-deadlocking: spring-activated projection ensures security on every closure
- Status monitoring: deadbolt state, handle use, cylinder use, door state. Signal capacity max 0.8A / 30V AC/DC
- Certified to EN 12209 (security class 6), SKG** for wood and metal, CE and Benor/ATG RF 30’/60’ fire-resistance approved
- Suitable for fire doors, not compatible with panic exit requirements
Usage
This lock is installed as a mortise unit in the door and provides electrically-controlled access via external triggers such as keypads, badge readers, or switches. It supports both Fail Secure and Fail Safe modes, configurable on the lock. The door can always be mechanically opened with a key from either side. Status signals allow monitoring of lock state and usage, and auto-deadlocking enhances security after each closure.
FAQ
-
Is the EL561 suitable for both wooden and metal doors?
Yes, it is designed for use on both wooden and metal doors and meets high security and fire-resistance standards. -
Can the lock be integrated with access control systems?
The EL561 is compatible with various access control devices, including badge readers, keypads, and electronic timers. -
What is the power requirement for the EL561?
The lock operates on 12–24 VDC, with a current draw of 550 mA at 12V or 270 mA at 24V. -
Does this lock support emergency exit (panic) functions?
No, the EL561 does not have a panic function and is not suitable for doors requiring free exit at all times. -
How is the deadbolt operated in case of power loss?
The deadbolt can always be unlocked mechanically with a key from either side, ensuring access even during power outages.
