The Abloy MP520 55/72 is a motorized multipoint security lock for exterior and interior doors demanding high security, suitable for applications requiring access control integration, automatic door operation, and robust mechanical fail-safe features.
Specifications
-
Design, materials, or technologies used
- Motorized multipoint lock with deadbolt and two hook bolts
- Europrofile cylinder compatibility

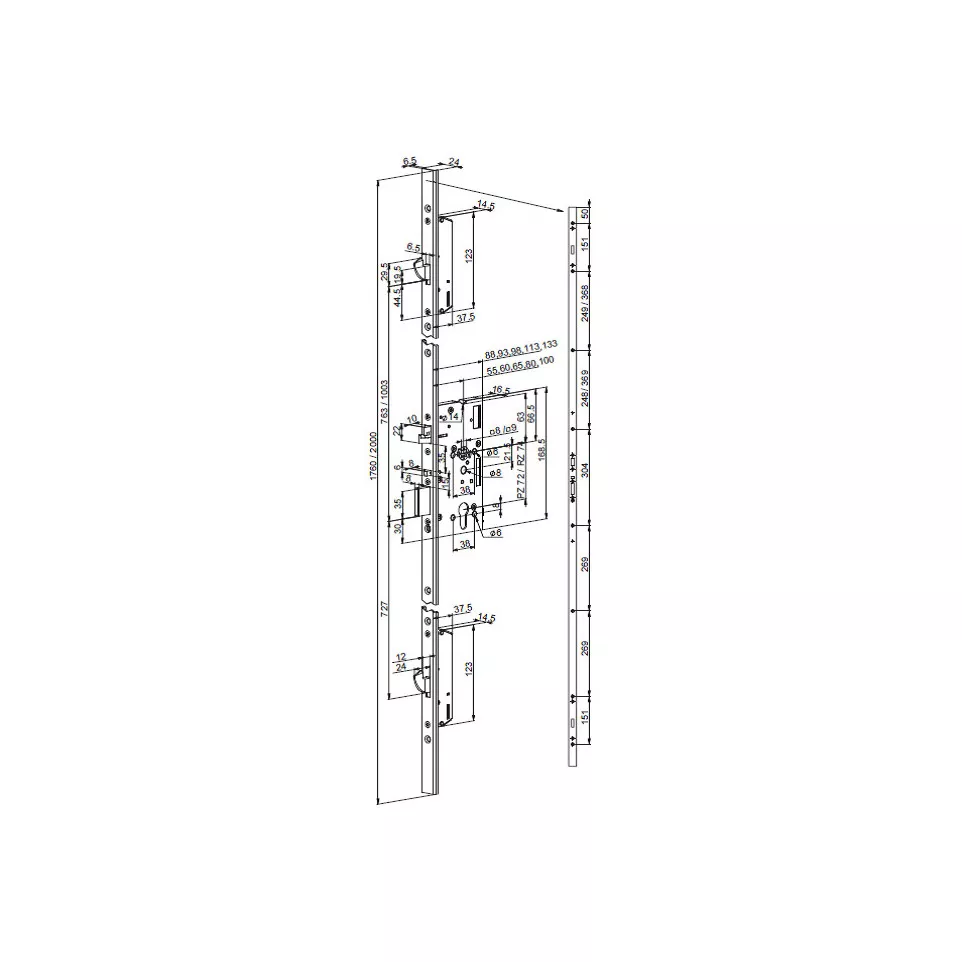

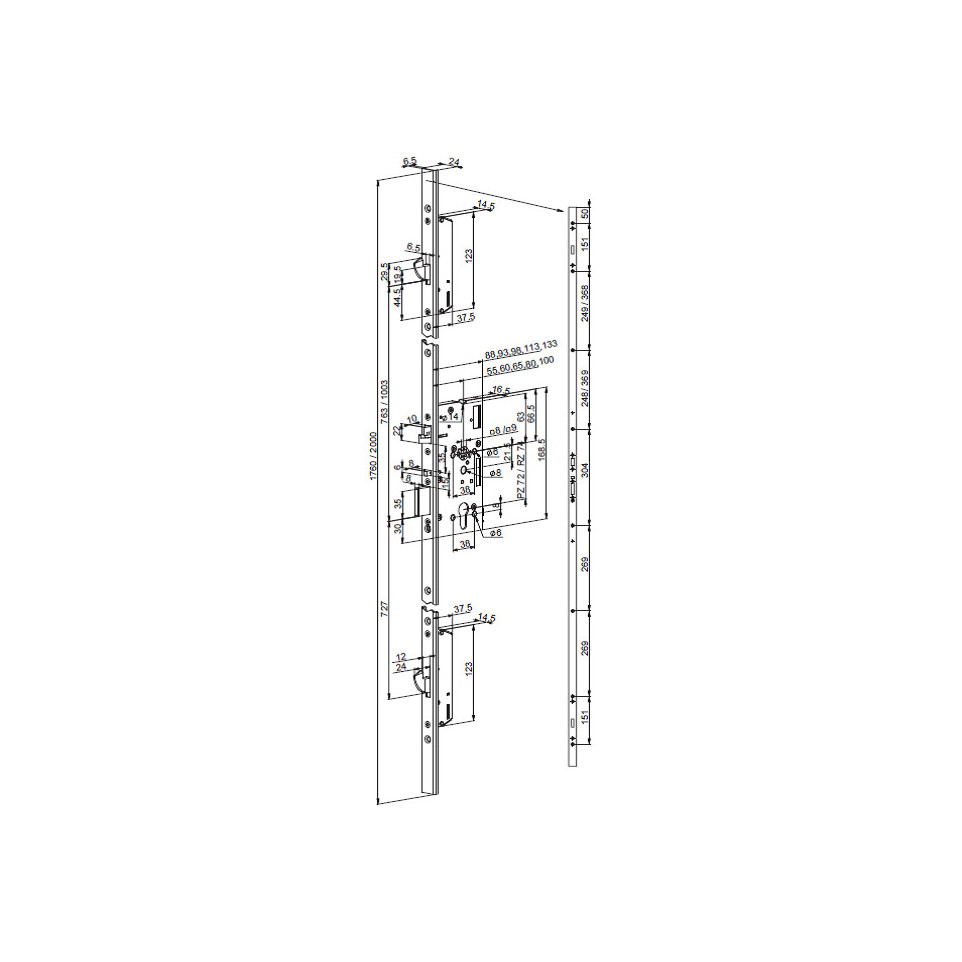

- Square faceplate: 1760 or 2000 x 24 x 6.5 mm (chromed reinforced steel)
- Lock case: 168.5 x 88 mm (zinc-coated steel, ~2 mm thick)
- Strike plate: 3 mm chromed steel
- Deadbolt throw: 20 mm, hooks: 24 mm, double-action latch: 10 mm
- Voltage: 12–24 V DC or 12–18 V AC
- Current: Max 1.3A (12V), 0.6A (24V), Idle 80mA (12V), 40mA (24V)
- Reversible (left/right handed), adjusted by Allen key
- For 72 mm centres; backset 55 mm as standard (60/65/80/100 mm available)
- 9 mm spindle (8 mm with adapter)
- Operating temperature: -20°C to +60°C
-
Durability, certifications, or standards
- 40 kN side resistance
- 500,000 cycle tested
- Compliant with EN 12209 security class 6, SKG*** (high burglary resistance), EN179 and EN1125 for emergency exits
- CE and Benor/atg RF 30’/60’ certified
-
Notable or differentiating product features
- Fail-secure operation (remains locked in power loss)
- Automatic mechanical deadbolt engagement at door closure
- Full monitoring contacts: bolt, latch, key, door state
- Adjustable timed opening (2–15 seconds)
- Panic function allows free exit at all times from the interior
- Anti-sabotage: automatic deadbolt retraction if thrown with door open
- Optional Hi-O (CAN bus) tech for simplified wiring and control
Usage
Install the lock in wooden or metal doors requiring high security and integration with access control. Connect to pulse generators (badge readers, keypads, timers) or automatic door operators. Upon authorized pulse, the lock’s motor retracts all bolts for a set period (2–15 seconds) or continuously if signal is maintained. Lock automatically re-engages on closure, independent of power supply. Always allows free interior exit via handle or panic bar.
FAQ
-
Can this lock operate with both left and right-handed doors?
Yes, the lock is fully reversible and can be set for left or right opening using an Allen key. -
How does the lock perform in case of a power outage?
The lock is fail-secure; deadbolt and hooks remain engaged, maintaining security even without power. -
What access control devices can control this lock?
The lock supports a wide range of control devices such as badge readers, keypads, key switches, push buttons, timers, and automatic door operators. -
Does the lock allow emergency exit at all times?
Yes, the panic function ensures the door can always be opened from the inside using a handle or approved panic bar, conforming to EN179 and EN1125. -
What monitoring and alarm features are included?
Integrated contacts signal the state of the deadbolt, latch, key operation, and door position. Anti-sabotage function retracts the deadbolt if it is projected when the door is open.
