Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Product

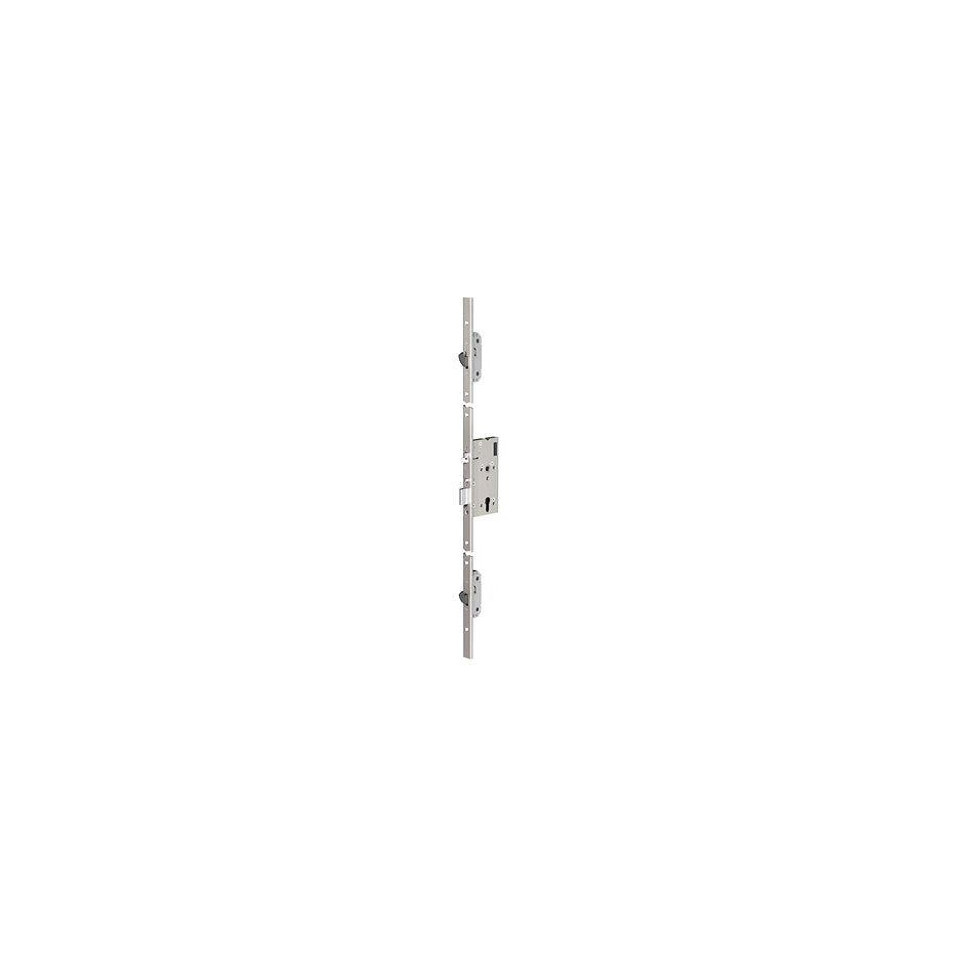

The Abloy MP520 65/72 Motorised Multipoint Lock is a high-security solution designed for interior and exterior doors requiring robust access control. It integrates seamlessly with various electronic access systems and is suitable for demanding environments.
Specifications
- Fits wooden and steel doors; Europrofile cylinder compatibility
- Electric operation: 12–24 VDC or 12–18 VAC; max 1300mA (12V), 600mA (24V), idle as low as 40mA
- Four-point automatic locking: 20 mm nickel-plated steel deadbolt, dual hook bolts, double action anti-friction latch
- Fail Secure (retains locked state when power fails); mechanical cylinder override at all times
- Reversible left/right handing; adjustable for different entry distances (55, 60, 65, 80, 100 mm)
- Reinforced zinc-plated steel case (approx. 2 mm), satin-chrome front plate (6.5 mm), 3 mm chrome strike plate
- Built-in monitoring: bolt status, handle/cylinder use, door status
- CE, Benor/atg RF, EN 12209 (mechanical class 6), SKG*** (burglary resistance), EN179/EN1125 (emergency exit compatibility)
- Lateral resistance: 40kN; tested to 500,000 cycles; temperature range: -20°C to +60°C
- Hi-O can-bus communication option (single 4-core cable for power and signal)
Usage
This lock is suitable for integration with badge readers, keypads, timers, or building automation. When triggered electrically, the motor retracts all bolts in under a second; relocking is automatic on door closure or after a set time (2–15 sec). Mechanical unlocking is always available via internal handle (panic/bar) or external key. Monitoring contacts and anti-tamper functions support advanced access control and security.
FAQ
-
Can the lock stay secure in case of a power failure?
Yes, the lock remains locked (Fail Secure), ensuring security even during outages. Mechanical key or internal handle always overrides. -
Which doors are compatible with this lock?
The MP520 is suitable for wooden or steel doors and supports both left- and right-handed installation. -
Can it be used as an emergency exit lock?
Yes, it supports exit by handle or panic bar according to EN179 and EN1125 standards, provided the required fittings are installed. -
How is access controlled?
The lock interfaces with access control devices like badge readers, keypads, switches, or building automation units via impulse control. -
What maintenance is required?
The lock’s robust design is tested for 500,000 cycles; regular checks of electrical connections and proper functioning of mechanical parts are advised.
