Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

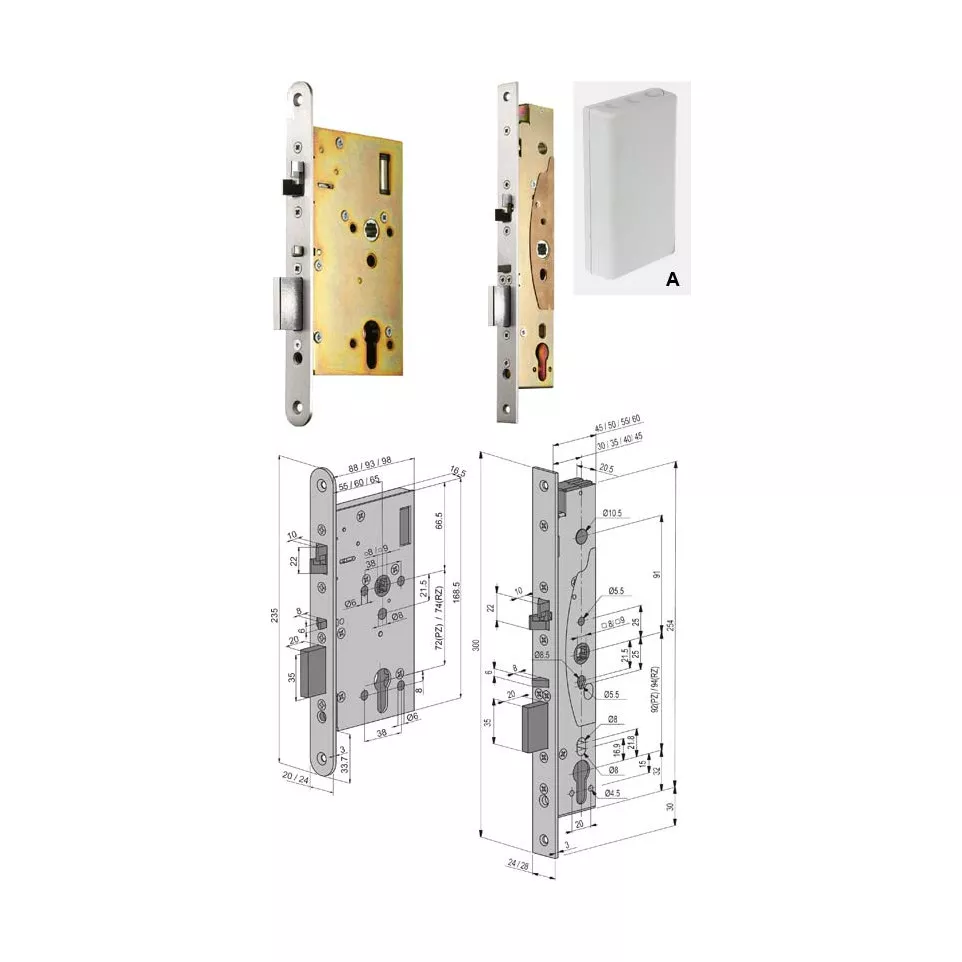

The Abloy EL520 mortise motorized lock is designed for secure access control on high-traffic wooden and metal doors in commercial premises, public buildings, hospitals, educational facilities, and fire-rated applications.
Advantages
- Compatible with most access control systems for enhanced building security management
- Provides dual security points with a motorized 20 mm deadbolt and double action latch
- Certified for use on emergency exits and fire doors (EN179, EN1125, EN14846)
- Non-handed design simplifies installation on both left- or right-opening doors
- Mechanical key override ensures door operation in power failure scenarios
Specifications
- Design: Mortise Europrofile lock case; single-point locking; push & pull function; compatible with wooden or metal doors
- Awards & Standards: Certified to EN179 (exit), EN1125 (panic exit), EN14846 (electric locks); suitable for fire-rated applications per EN1634-1
- Main Performance:
- Backset: available in multiple sizes including standard 55 mm
- Centres: 72 mm
- Deadbolt throw: 20 mm
- Voltage range: operates at either 12–24 VDC or AC supply
- Current draw: idle—80 mA/40 mA (12V/24V); drive—450 mA/220 mA; max—1300 mA/600 mA
- Dimensions (approx.): height –168.5 mm, width –16.5 mm, depth –113 mm - Differentiators:
- Integrated monitoring contacts report door status, bolt position, handle/cylinder use,
- Day/night modes and electric anti-tampering functions
- Fail-locked outside but always permits exit by inside handle
How it works
This motorized lock retracts the deadbolt via an electric command from an access system or remote control. When the door closes, the mechanism automatically extends the deadbolt ensuring full security. The inside handle mechanically releases the lock at any time. A mechanical cylinder provides manual override if needed.
