Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

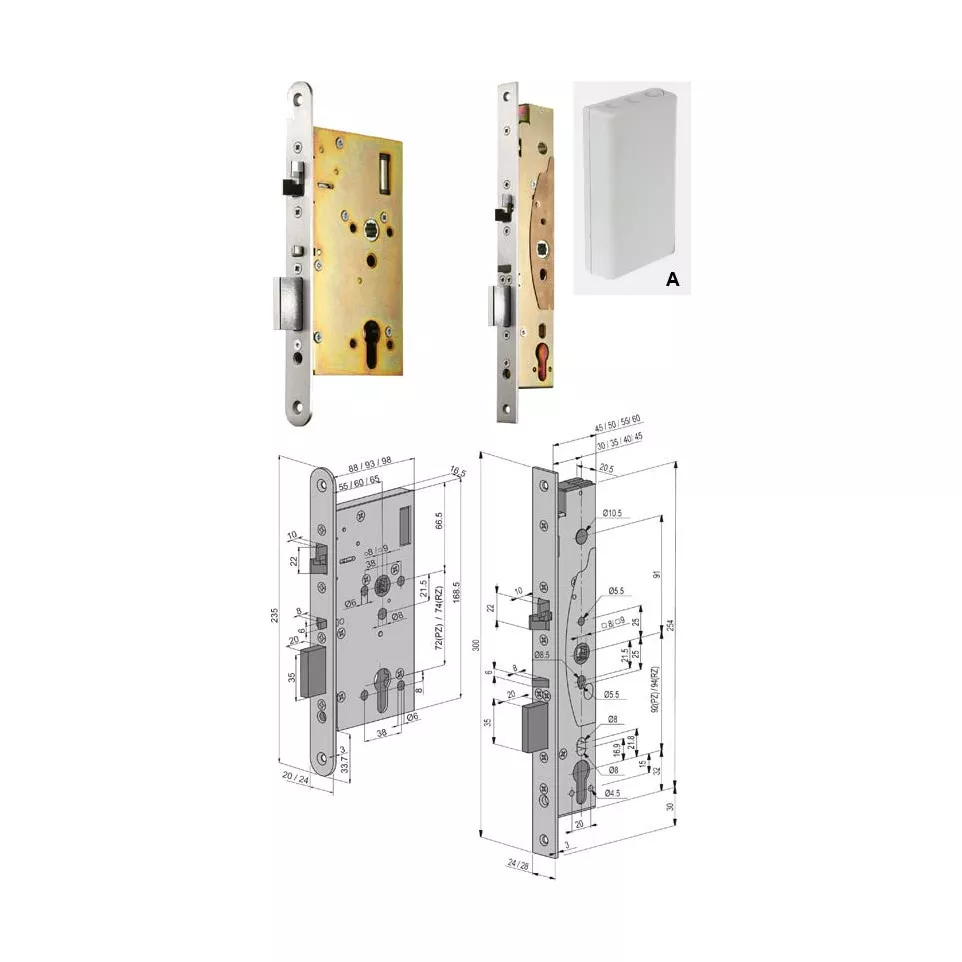

The Abloy EL420 motorized mortise lock is designed for secure access control in high-traffic environments, such as public buildings, hospitals, educational facilities, and business premises.
Advantages
- Electrically controlled locking and unlocking enables seamless integration with access control and door automation systems.
- Automatic double-point deadlocking with a 20 mm deadbolt enhances burglary resistance and security.
- Certified for use on fire-rated (EN14846) and emergency exit doors (EN179/EN1125), supporting safety compliance requirements.
- Reversible handing allows installation on both left- or right-opening doors without additional modifications.
- A mechanical cylinder override provides manual unlocking capability during power failure or emergencies—ensuring operational continuity.
Specifications
- Design & Materials: Steel case with chrome finish; suitable for DIN-standard narrow profile doors; mortise Europrofile format; single-point locking mechanism.
- Sustainability & Certifications: Fire door suitability (EN14846); escape route suitability (EN179/EN1125); durable construction tested between -20°C to +60°C operating temperature.
- Performance: Input voltage: 12–24 VDC; idle current: 40–80 mA; normal drive current: up to 450 mA at 12 VDC / up to 220 mA at 24 VDC; maximum consumption up to either 1300 mA (12V) or 600 mA (24V); bolt throw: 20 mm deadbolt, double-action latch.
- Differentiators: Integrated monitoring contacts for real-time feedback on lock status (e.g., bolt position, door open/closed), push & pull functionality ideal for high usage scenarios, anti-tampering electronics retract the deadbolt if thrown while the door is open.
How it works
The EL420 operates by withdrawing its motorized deadbolt upon receiving an electrical signal from an access control device. The double-action latch allows controlled push-pull opening. Manual release is possible via a mechanical key cylinder or interior handle in case of emergency or power loss. When the door closes, both latch and deadbolt automatically secure the lock in two points.
