Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

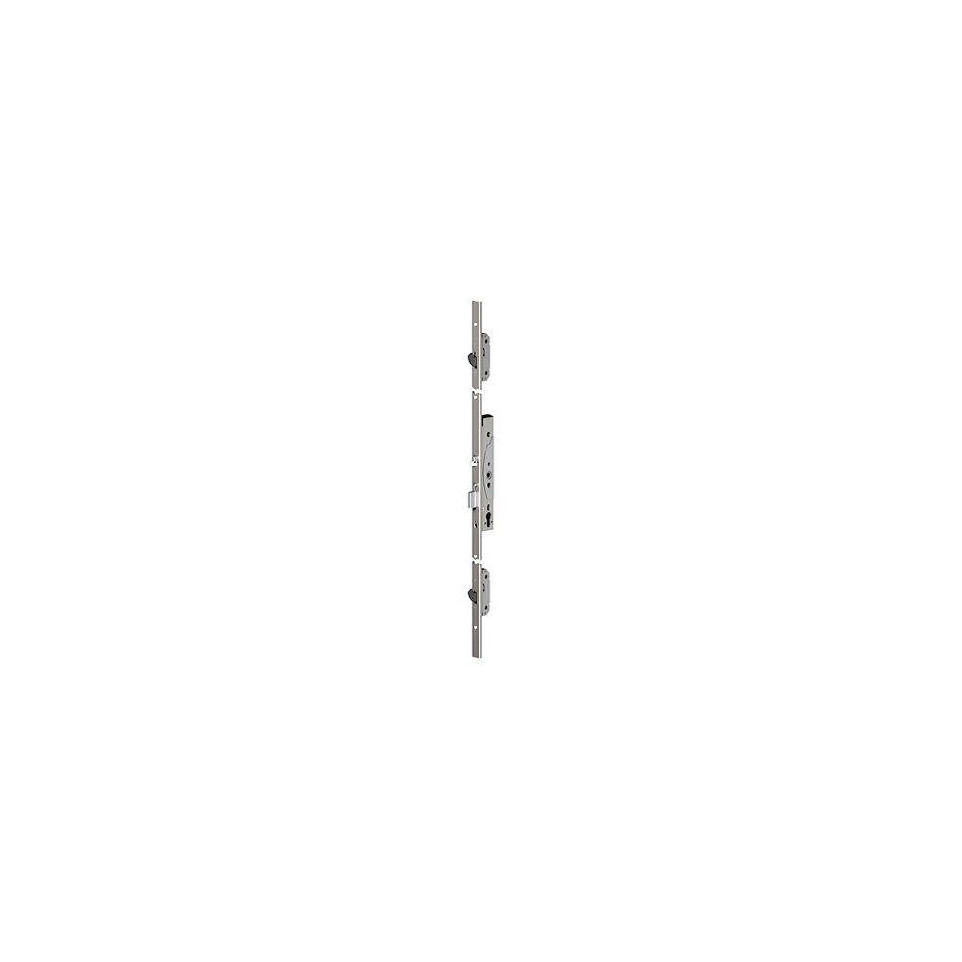

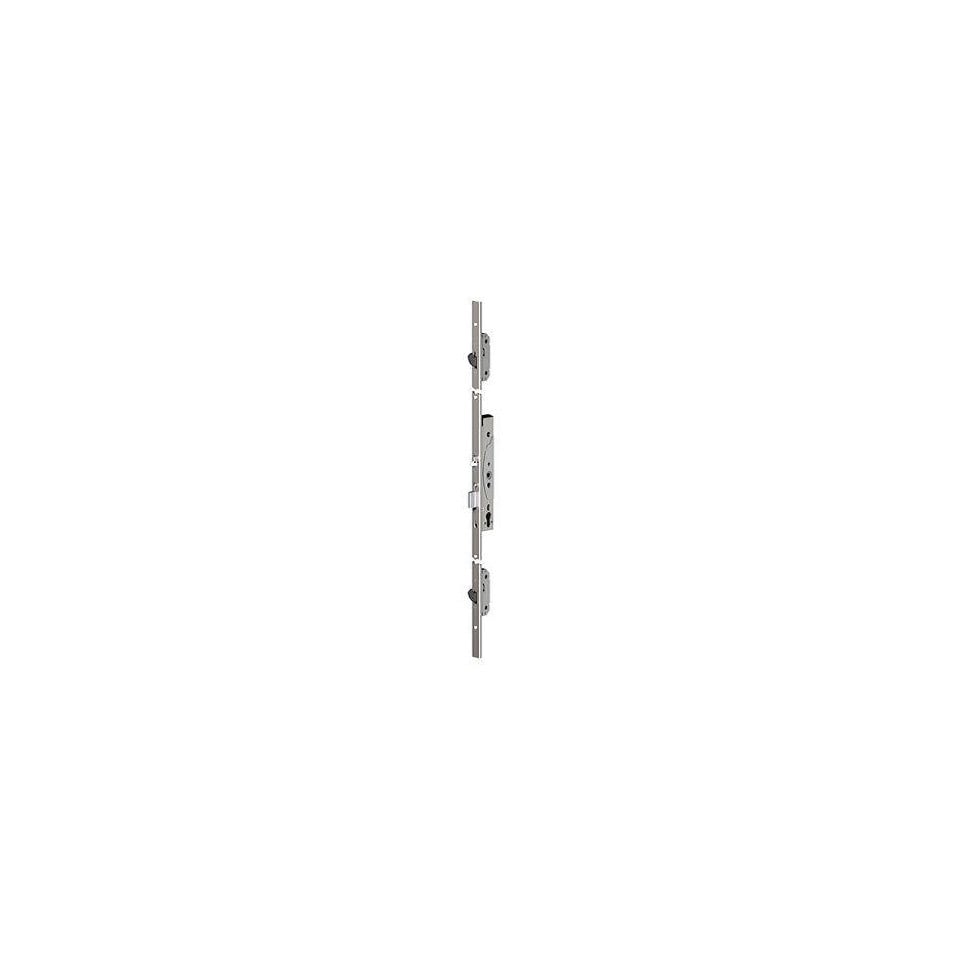

The Abloy MP420 is a DIN standard push & pull multipoint lock designed for high-traffic profile doors in commercial, public, and residential buildings. It provides secure access control and can be integrated with electronic access systems.
Advantages
- Suitable for high-traffic doors, offering durability and reliability
- Electrically controlled by access control or remote systems
- Features day function for open access and secure mode for automatic deadlocking
- Compatible with door automation systems
- Requires regular maintenance to ensure optimal performance
Specifications

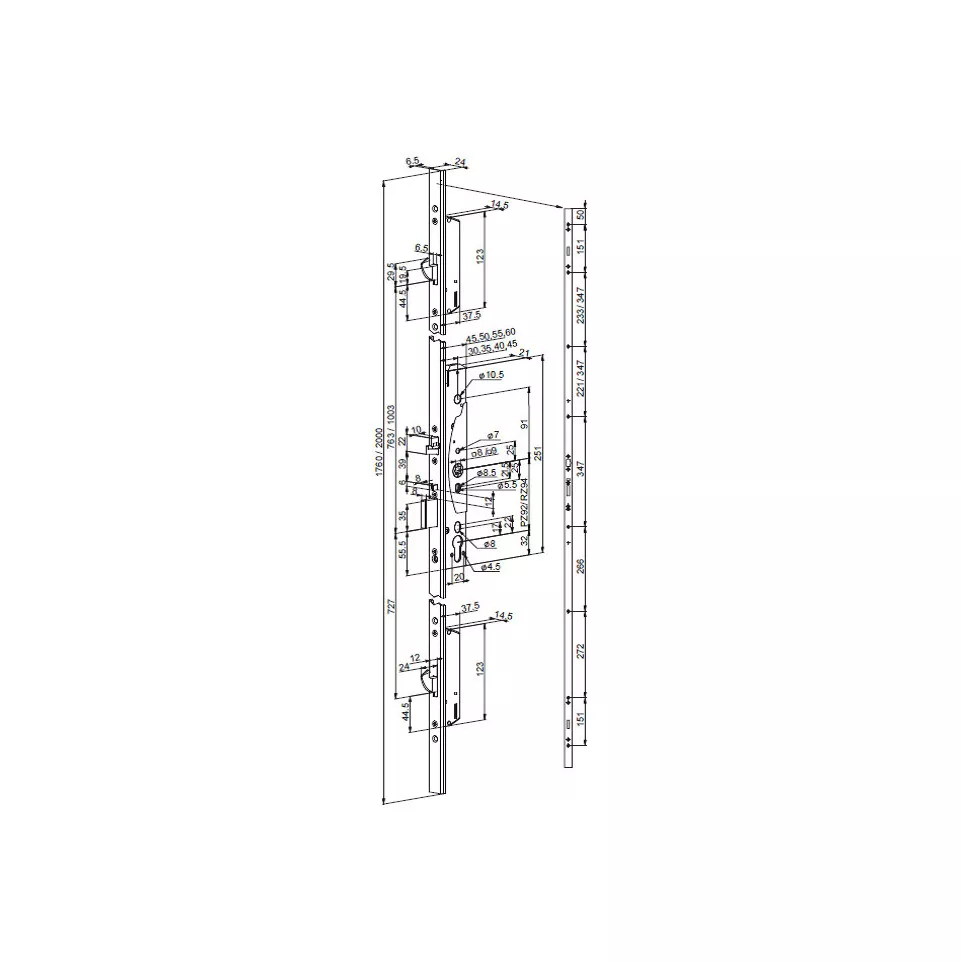

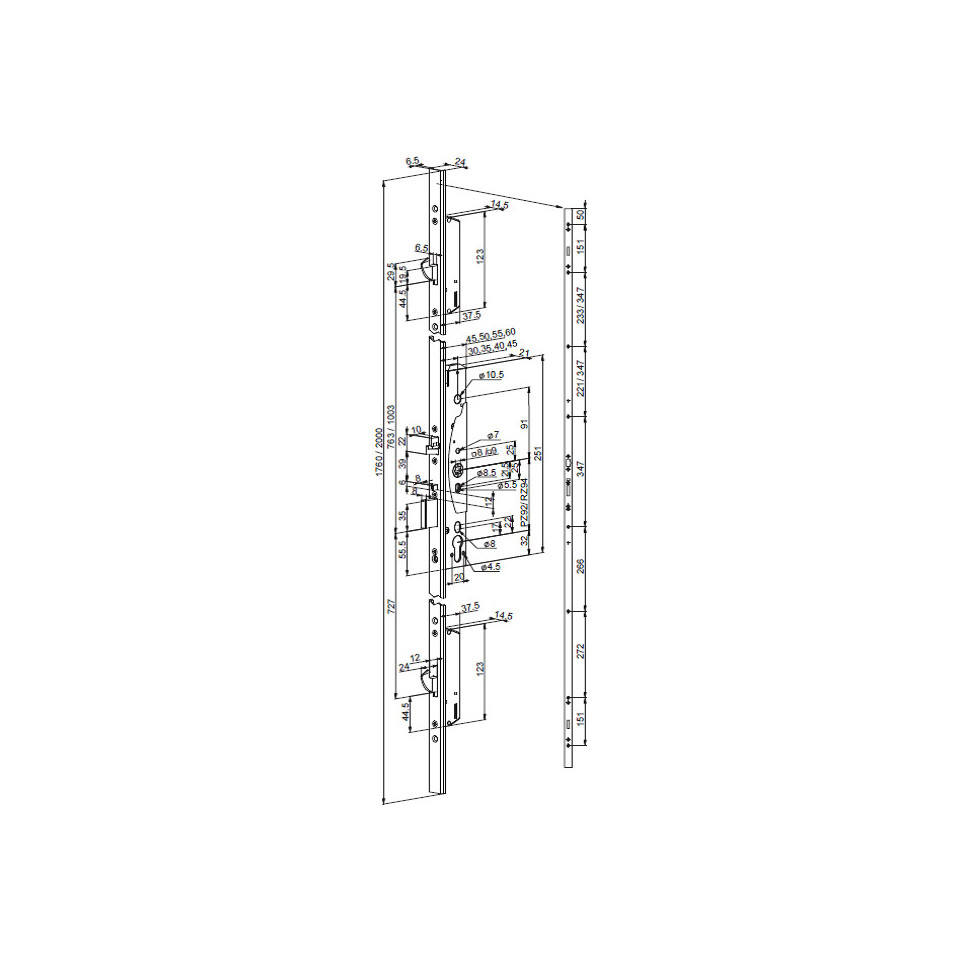

- Multipoint lock with three locking points for enhanced security
- Certified according to EN14846 (electric lock standard with fire approval), EN179 (exit doors), and EN1125 (panic exit doors)
- Operating voltage: 12-24 VDC (+15%)
- Bolt throw: 20 mm for deadbolt, 10 mm for double action bolt, 24 mm for hook bolt in multipoints
- Backset: 35 mm, Europrofile cylinder distance: 92 mm
How it works
When electrically controlled, the MP420's deadbolt retracts into the lock case, and the double action latch releases. The lock automatically deadlocks when the door closes. Mechanical opening by cylinder is always possible, ensuring fail-safe operation.
