Stainless Steel Strike Plate for Abloy Solenoid Locks / pc
€30.62
In stock
Usage

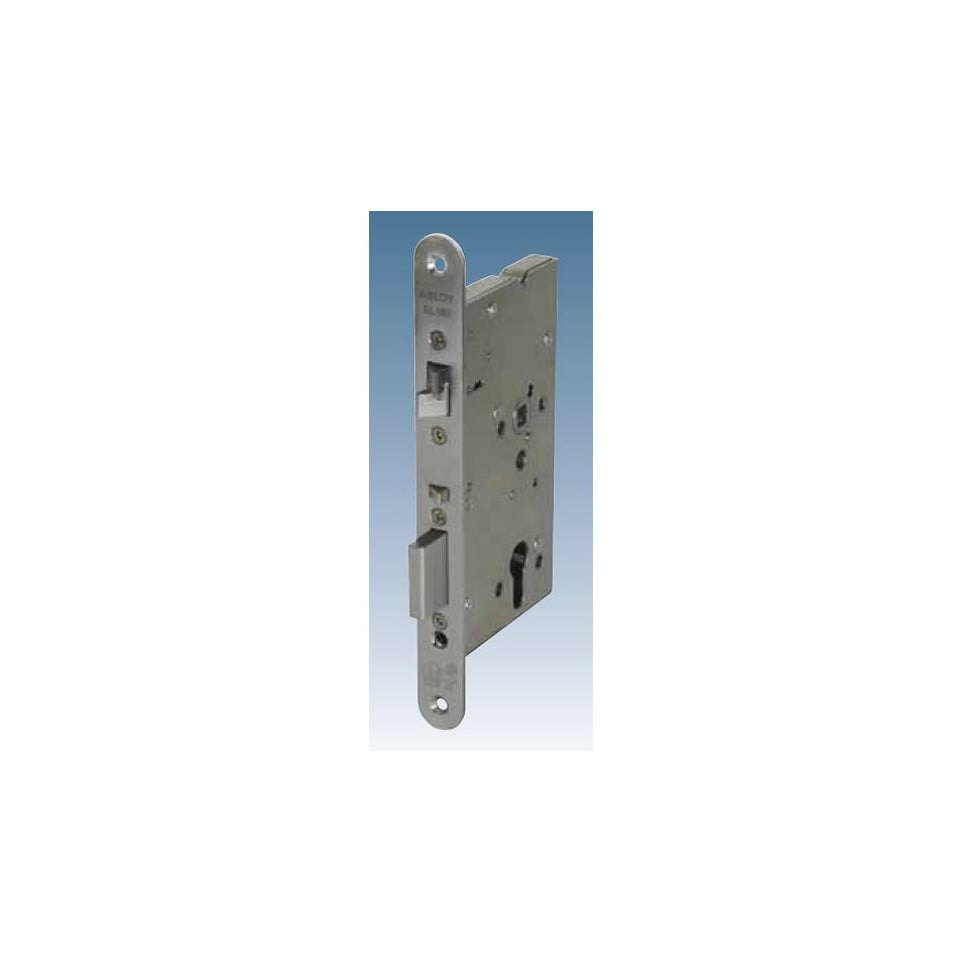

The Abloy EL561 65/72 solenoid lock is designed for electrically controlled access on solid wooden or metal doors, allowing secure handle operation from both sides in commercial and institutional environments.
Advantages
- Electrically controls both handles for precise access management from either side of the door
- Meets DIN standard and supports installation in doors with high usage frequency
- Configurable as fail locked or fail unlocked to suit site-specific security needs
- Mechanical override via cylinder ensures operation during power interruptions
- Suitable for fire-rated doors, supporting compliance with EN14846 standards; not recommended for certified exit doors due to dual electronic control of handles
Specifications
- Design/Materials: Mortise-type lock case, DIN standard, Europrofile compatibility; for wooden or metal single-leaf doors; robust steel construction built for frequent use and durability[1][3][5]
- Sustainability/Certifications: Certified to EN14846 (electric locks) including fire approval; compliant with EN179 (exit), EN1634-1 (fire resistance), EMC standards[1][4]

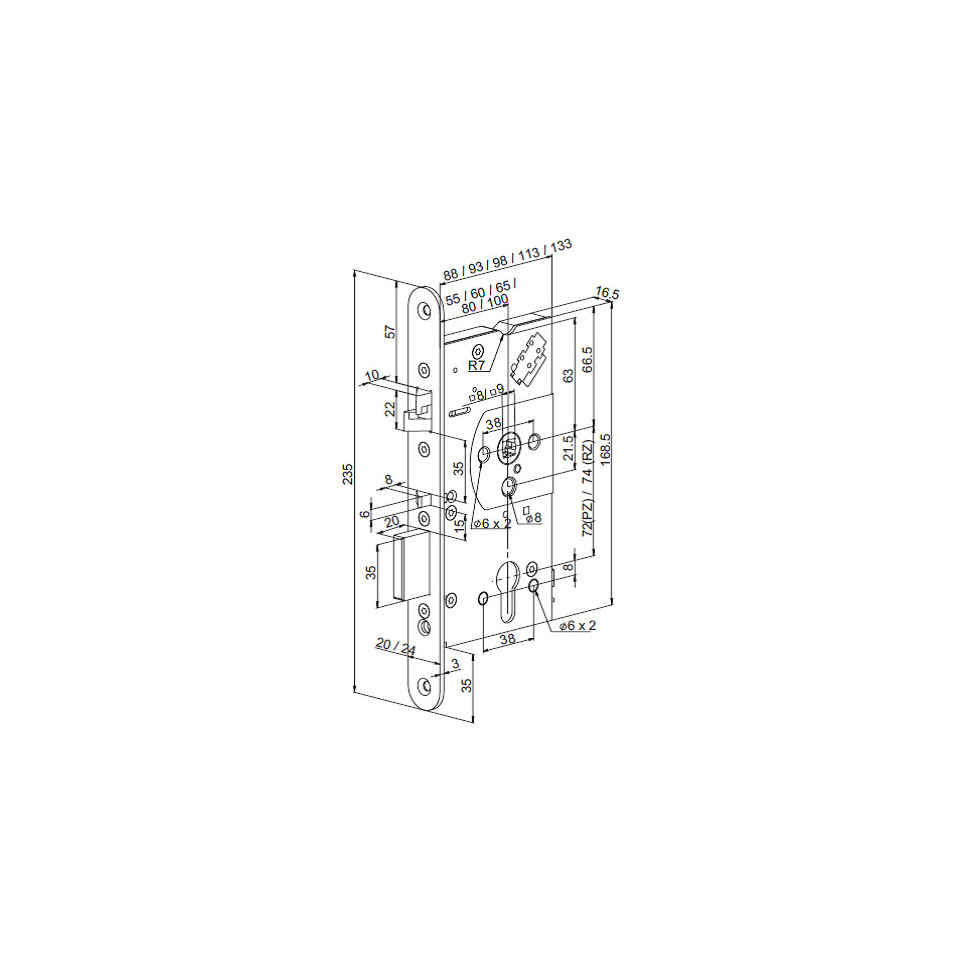

- Performance: Backset: 65 mm; Forend width: 20 or 24 mm; Distance: 72 mm (PZ); Deadbolt throw: 20 mm; Voltage input: DC12–24 V (+10%/-15%), idle current at DC12V—240 mA (max.550 mA) / DC24V—130 mA (max.300 mA); operating temperature range –20°C to +60°C[1][4][5]
- Differentiators: Both inside and outside handles are electronically released by access control systems; supports monitoring outputs such as bolt position and handle status[1][3]
How it works
The EL561 operates by electrically controlling both handles through an external access system. When authorized, the respective handle is engaged so that pressing it retracts the deadbolt and latch. A mechanical cylinder always enables a manual override if needed.
